Product description:
Two-rolls straighteners are suitable for the precision straightening and polishing of cold-drawn and peeled bars. and for processing hot-rolled round bars and thick-walled pipes.
These prestressed-type machines keep the straightening roll gap constant at all times, thereby ensuring long-term machine accuracy and stable straightening precision. Touch-panel operation simplifies control.
Advantage:
- High efficiency:10~30m/min
- Straightening and polishing could be finished synchronously.
- High precision , straighteness 0.15~0.4m/min

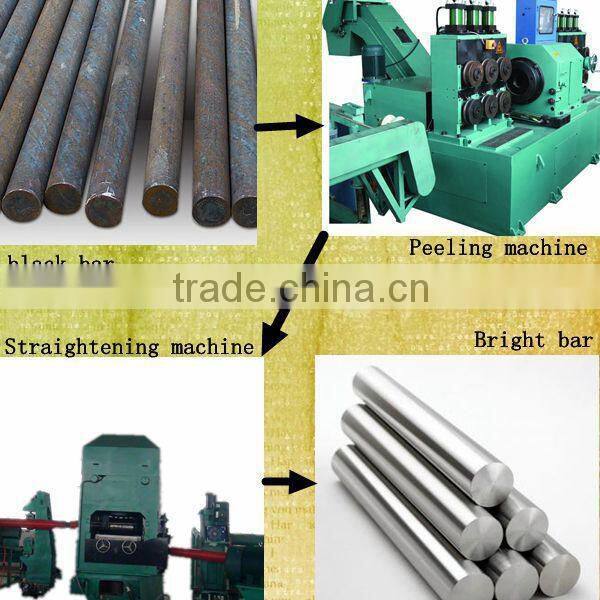

Processing:
Technical parameter:
Specification |
JY130A |
|||
|
Raw
Material
|
Diameter Range(mm) (excluding drawing material) |
Tensile Strength σb≤450(M pa) |
Φ35≤d≤Φ130(L ≥3000) |
|
Tensile Strength σb≤1000(M pa) |
Φ35≤d≤Φ120(L ≥3000) |
|||
Surface Hardness |
≤HB380(≤HRC42) |
|||
Straightness(mm/m) |
Bright Steel≤3 Black Material≤4 |
|||
Diameter Tolerance |
Bright Steel≤IT10 Black Material d-2-GB/T702-2004 |
|||
Circular Degree |
d≤50 |
≤50% of diameter tolerance |
||
50<d≤80 |
≤65% of diameter tolerance |
|||
d>80 |
≤70% of diameter tolerance |
|||
|
Diameter Range(mm) (excluding drawing material) |
Bright bar≤3.2mm~6.3mm |
|||
|
Finished
Products |
Straightness(mm/m) |
Bright bar≤0.40 Black bar≤1.0 |
||
Diameter Tolerance |
Bright bar≤IT8 Black bar:Much better than raw material |
|||
Surface Roughness(Ra) |
Bright bar≤0.8μm Black bar:Much better than raw material |
|||
Roller Quantity (Pcs) |
2 |
|||
Roller Diameter (mm) |
Φ460 |
|||
Straightening Feeding Speed(m/min) |
2~10 |
|||
Host Machine Motor Power (KW) |
90 X 2 |
|||
Lifting Motor Power (KW) |
5.5 |
|||
|
Host Machine Outline Dimensions (Length*Width*Height) |
Host Machine 11m X3.4m X4.6m |
|||
Weight |
Host Machine 44T |
|||
Total Capacity(for your reference)KW |
200 |
|||
Compressed Air Source(user prepare by themselves) |
0.5~0.8MPa,1.8m3/min,two-stage oil-water separator |
|||
Packing details:
Standard export packing:pallet+plywood box+stretch plastic film
payment process :
50% down payment by T/T or L/C
50% balance by T/T (Shipping after receipt of balance)
We can solve the problem for you is :
1. After sales service:we will dispatch professional technicians to customer factory
for machine installation and training.
2. Our salesman will be 24 hours online for you to solve problems.
3. We have been in this line for more than 15 years.
Our machine quality is the best in China
Company introduction:
Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 1999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles.
Successful orders:
