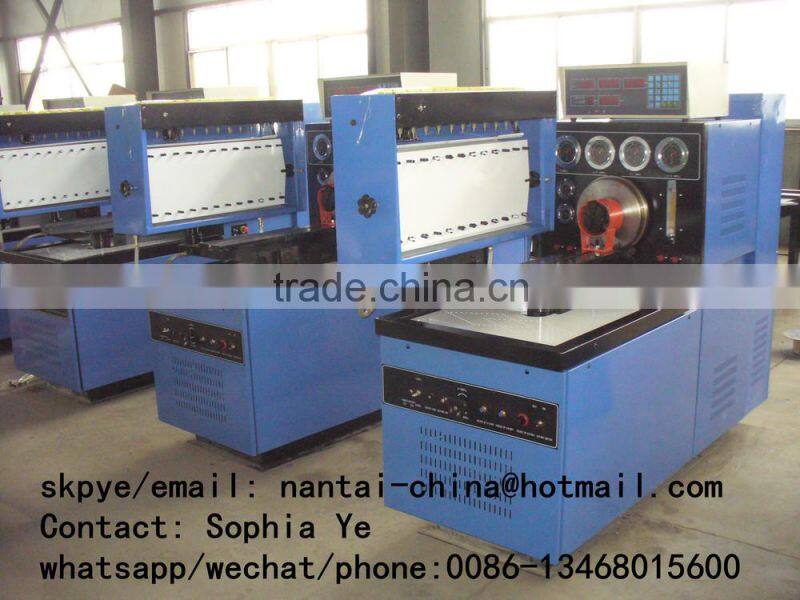

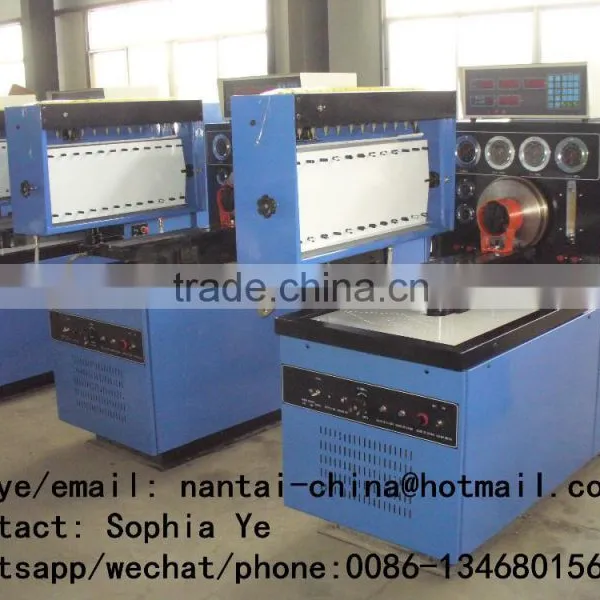

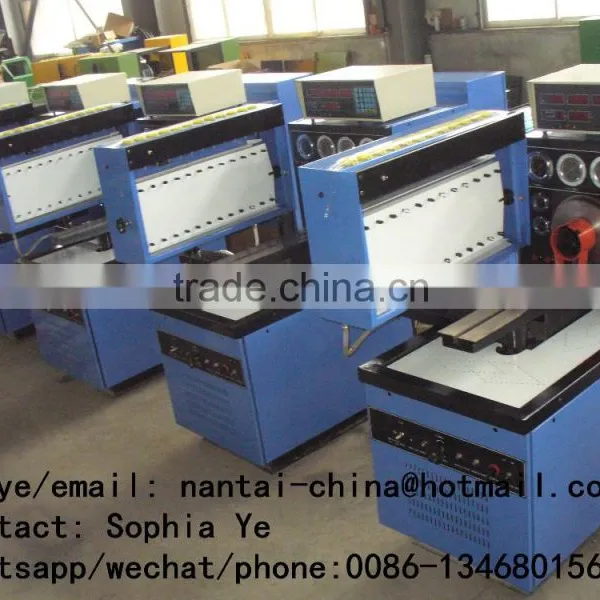

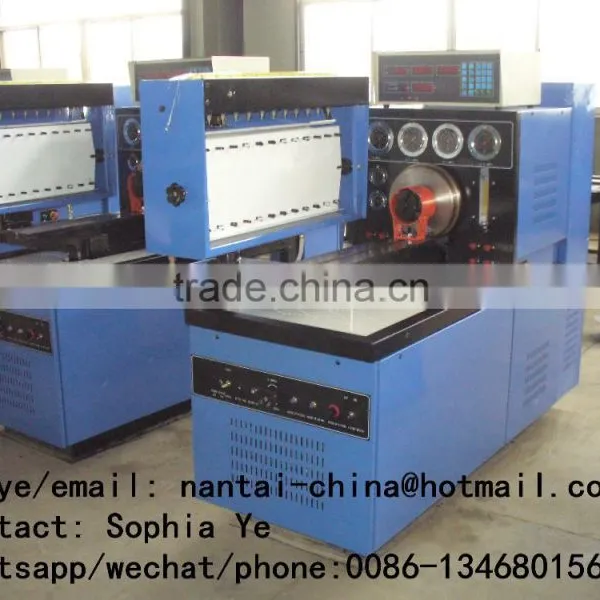

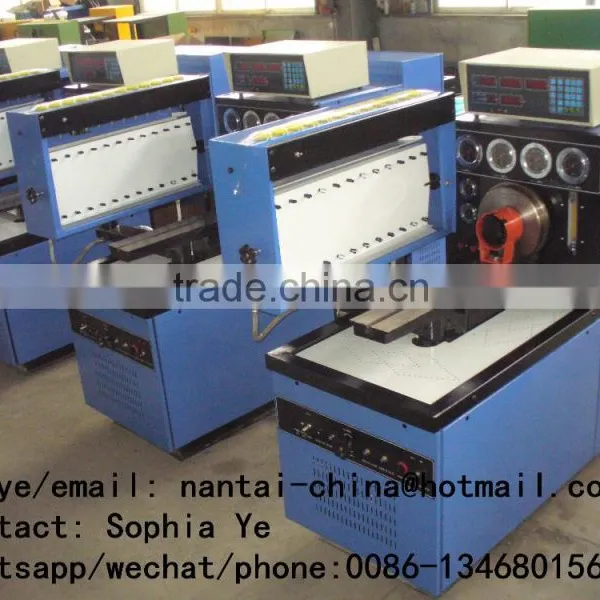

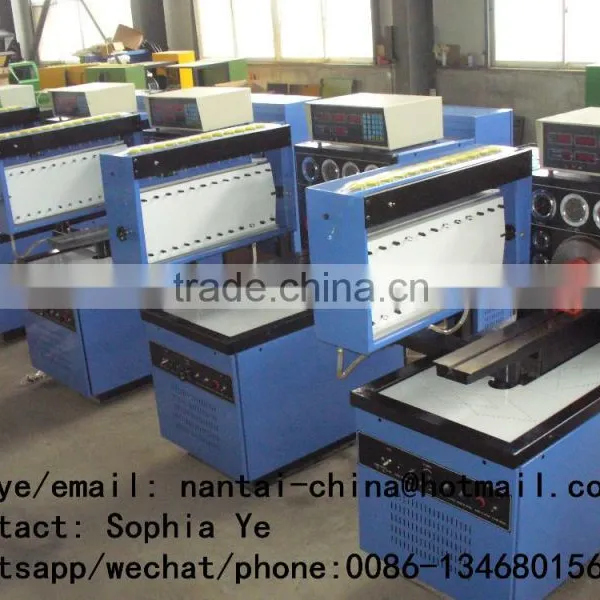

Help CenterBlue Color /Best Advance/ Lowe Price 12PSB-IV Injectors and Pumps Fuel Injection Test Bench Quality Choice
Related Products
-
BC3000 Diesel Pump Test Bench Check Bosch Denso Injection PumpUS$ 3,000 - 7,000MOQ: 1 Set -
BD850 Green Color Diesel Injection Pump Test Bench/banco de Pruebas Para Bombas de InyeccioinUS$ 4,000 - 7,000MOQ: 1 Set
-
BD850 Yellow Color Diesel Injection Pump Test Bench/banco de Pruebas Para Bombas de InyeccioinUS$ 3,000 - 7,000MOQ: 1 Set
-
Yellow Color High Quality and Low Price NT3000 TEST BENCH FOR INEJCTOR AND PUMPSUS$ 3,000 - 6,000MOQ: 1 Set
-
NTS815 Electronic Fuel Delivery Measuring System Test BenchUS$ 5,000 - 10,000MOQ: 1 Set
- FEATURES
By employing high performance/low noise inverter and using Bosch advanced techniques Our test bench has had more and more advantages, such as, wide range of adjustment speed, stable speed, large torque outputting, easy operating and so on. This test bench used digital indicators to display speed, counting, test oil temperature, pressure/vacuum and advance angles.
The test bench of NT3000 and 12PSB series in it’s 12 cylinders with 5.5/7.5/11/15/18.5/22kw motor, can start and test both in-line and rotary fuel injection pumps, for example, Ⅰ, Ⅱ, Ⅲ, A, B, P, Z, VE pumps and so on, by employing the suitable accessories.
2. Main function
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke (on request)
CHARACTERISTICS
1. Chaning frequency changing rotational speed
2. Low fall of rotational speed and high output torque
3. High measurement precision;
4. The functions of over voltage, overload and short circuit protection;
5. Ten classes Rotation speeds presetting;
6. Constant temperature controlled;
7. Ultra low noise;
8. Operating position: arbitrary side of the two work sides of the test stand;
9. Rotation speed, count, temperature, air pressure, advance angle and rack travel are measured and controlled by computers in real time, then displayed by 17″CRT or on request (17 LCD touch screen).
10. Built-in air resource;
11. All data can be made into reports and printed;
12. Automatically generating and displaying speed characteristics curve;( tooth bar stroke)
13. The data of the pumps can be saved, modified and obtained pump database;
14. It is very easy to find the data of the pumps in pumps database;
15. Windows operating system.
3. TECHNICAL DATA
l
Specifications | ||
No. |
Items |
Data |
1 |
Main motor output power(kw) |
7.5/11/15kw |
2 |
Frequency Converter |
JIDIAN |
3 |
Stroke Counting (Rpm) |
50-9999 |
4 |
Standard injectors |
ZS12SJ1 |
5 |
Power of fuel pump motor (kw) |
0.75 |
6 |
Scope of rotate speed (r/m) |
0~4000 |
7 |
Number of cylinders |
12 |
8 |
Height of principal axis center (mm) |
125 |
9 |
Filter oil precision of test bench(μ) |
4.5~5.5 |
10 |
Volume of big and small volumetric cylinder(ml) |
150 45 |
11 |
Volume of fuel tank(L) |
40 |
12 |
DC power supply |
12/24V |
13 |
Low pressure of fuel oil pressure(Mpa) |
0~0.4 |
14 |
High pressure of fuel oil pressure(Mpa) |
0~4 |
15 |
Pressure Gauge for VE Pump (Mpa) |
0-1.6 |
16 |
Pressure Gauge for VE Pump (Mpa) |
0-0.16 |
17 |
Control temperature of fuel (℃) |
40±2 |
18 |
Flywheel inertia(kg*m) |
0.8~0.9 |
19 |
Scope of rack bar stroke(mm) |
0~25 |
20 |
Measuring range of flow meter(L/m) |
10~100 |
21 |
DC electrical source(V) |
12 24 |
22 |
Positive pressure of air supply(Mpa) |
0~0.3 |
23 |
Negative pressure of air supply(Mpa) |
-0.03~0 |
24 |
Dimension of Packing ( L*W*H(m )) |
2.14*1.1*1.82 |
25 |
Gross weight of Test bench( kg) |
800 |
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbocharger in China, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pumps and injectors repair. Hope to cooperate with you.
