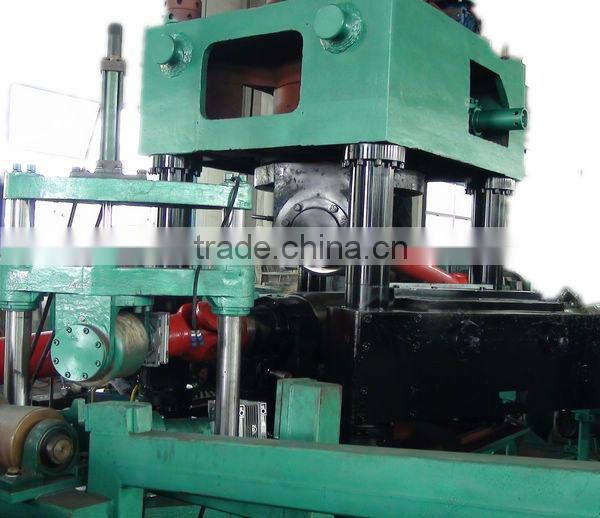

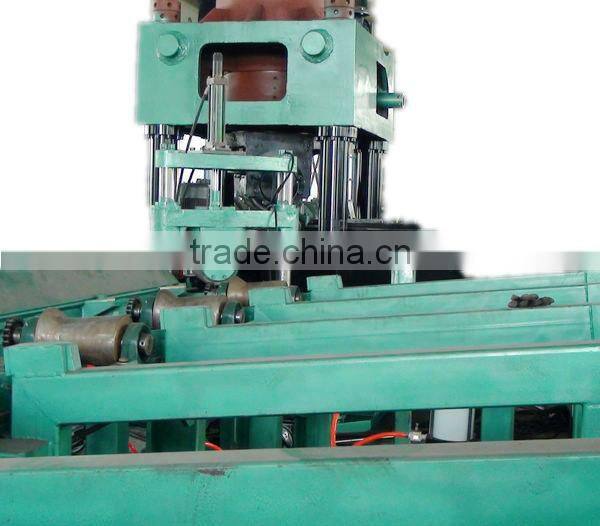

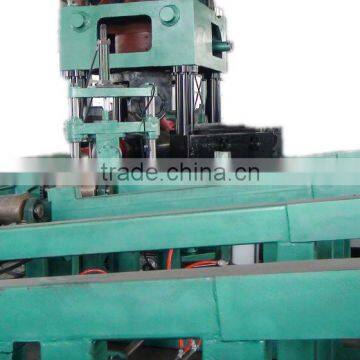

JY100Z Straightening Macine for Round Steel Bar

Specification

JY100

Raw

Material

Diameter Range(mm)

(excluding drawing material)

Tensile Strength σ_b≤450(M pa)

Φ25≤d≤Φ100(L ≥3000)

Tensile Strength σ_b≤1000(M pa)

Φ25≤d≤Φ90(L ≥3000)

Surface Hardness

≤HB380(≤HRC42)

Straightness(mm/m)

Bright Steel≤3     Black Material≤4

Diameter Tolerance

Bright Steel≤IT10Black Material d-2-GB/T702-2004

Circular Degree

d≤50

≤50% of diameter tolerance

50<d≤80

≤65% of diameter tolerance

d>80

≤70% of diameter tolerance

Diameter Range(mm)

(excluding drawing material)

Bright Steel≤3.2mm~6.3mm

Finished

Products

Straightness(mm/m)

Bright Steel≤0.40     Black Material≤1.0

Diameter Tolerance

Bright Steel≤IT8 Black Material:Much better than raw material

Surface Roughness(Ra)

Bright Steel≤0.8μm Black Material:Much better than raw material

Roller Quantity (Pcs)

2

Roller Diameter (mm)

Φ380

Straightening Feeding Speed(m/min)

2~12

Main Machine Motor Power (KW)

75 X 2

Lifting Motor Power (KW)

4

Outline Dimensions

(Length*Width*Height)   (for your reference)

Full Set (including auxiliary machine) 15.8mX5.5Mx4.6m

Weight(for your reference)

Main Machine 26T

Full Set(including auxiliary machine) 32T

Total Capacity(for your reference)KW

170KW

Compressed Air Source(user prepare by themselves)

0.5~0.8MPa,3m³/min,two-stage oil-water separator
