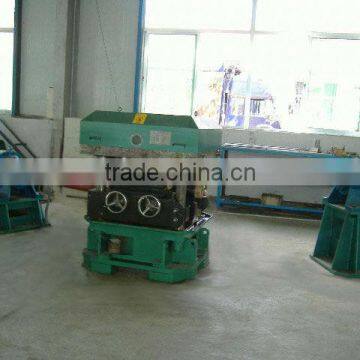

Two-beams Two-colums Two-rollers Straightening Machine(only Main Machine)

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, straightening machine
Use	Other, straightening for metal rod bar	Place of Origin	Shandong, China
Brand Name	haige	Model Number	JY20
Voltage	380V	Power(W)	18KW
Dimension(LWH)	4.7mX1.7mX1.3m	Weight	2.4T
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

1.operation simple
2.low cost
3.high efficiency

Main Technical Parameters

Specification		JY20
Raw Material	Diameter Range(mm) (excluding drawingmaterial)	Tensile Strength σ_b≤450(M pa)	Φ5≤d≤Φ20(Length≥2000mm)
		Tensile Strength σ_b≤1000(M pa)	Φ5≤d≤Φ18(Length ≥2000mm)
	Surface Hardness	≤HB380(≤HRC42)
	Straightness(mm/m)	≤3
	Diameter Tolerance	≤IT10
	Circular Degree	≤50% of diameter tolerance
	Surface Roughness(Ra)	≤3.2mm~6.3mm
Finished Products	Straightness(mm/m)	≤0.2
	Diameter Tolerance	≤IT8
	Surface Roughness(Ra)	≤0.8μm
Roller Quantity (pcs)		2
Roller Diameter(mm)		Φ180
Straightening Feeding Speed(m/min)		3~12
Main Machine Motor Power(KW)		7.5 X 2
Lifting Motor Power(KW)		1.1
Outline Dimensions (LengthWidthHeight) M (for your reference)		Main Machine 4.7mX1.7mX1.3m Full Set(including Auxiliary Machine) 11mX2.5mX1.3m
Weight (for your reference)		Main Machine 2.4T Full Set(including auxiliary machine) 5.0T
Total Capacity(for your reference)KW		18
Compressed Air Source(user prepare by themselves)		0.5~0.8MPa,3m³/min,two-stage oil-water separator
