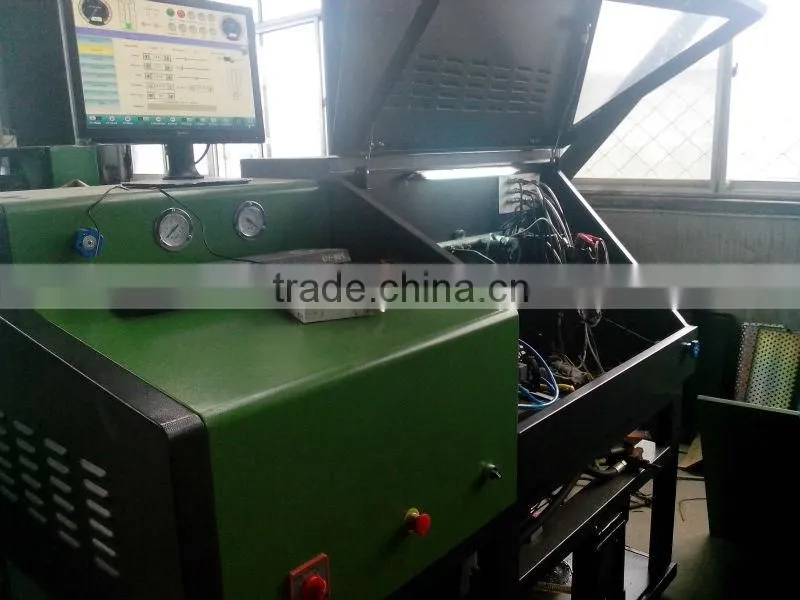

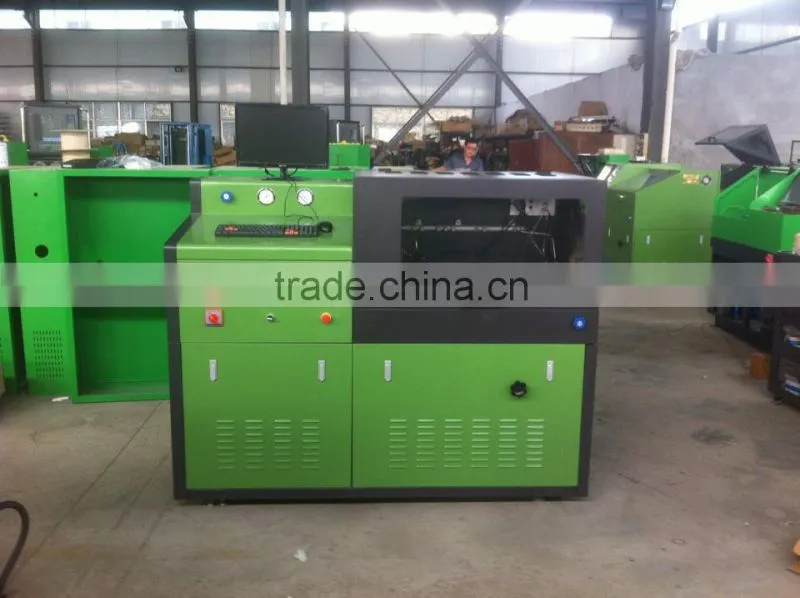

Help CenterDENSO Common Rail HP0 Pump Test Bench/DENSO U2 Pump
Related Products
-
CRS200 Common Rail Injector,common Rail Pump ,common Rail System TesterUS$ 2,000 - 2,500MOQ: 1 Set -
CRI-2000 Common Rail Injector Test BenchUS$ 2,000 - 3,000MOQ: 1 Set
-
CR3000A COMMON RAIL SYSTEM TEST BENCHNegotiableMOQ: 1 Set
-
CR3000A Common Rail Injector and Common Rail Pump Test Bench Banco de Pruebas Parabomba de InyeccionUS$ 3,000 - 5,000MOQ: 1 Set
-
CRS200 Common Rail Pump and Common Rail Injector Test Bench/tester SimualtorUS$ 2,000 - 4,000MOQ: 1 Set
R3000A/CR3000A-708 COMMON RAIL TEST BENCH is mainly test for common rail pump and injector.
Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel
injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system
testing. It guarantees a high level of reproductivity of the measured valuse.
CR3000A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail
system, can finish the high-pressure common rail system functional testing.
>>>System Application:
The system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and
injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors,
It also can test 6 common rail injectors in one time.
>>> Technical parameters
1, Main motor speed: 0-4000 r / min can be adjustable.
2, Motor power: 7.5KW, 11KW, 15KW, 18.5KW optional.
3, Fuel Injector open voltage Control range: 12V, 80V, 150V Control accuracy: phase adjustment
4, Injector opening frequency Control: 0-1000HZ Control accuracy: 1HZ
5, Fuel Injector Hold Time Control: 0-65535us
6 Delivery Oil CountControl: 0-1000 times Control accuracy: 1 times
7, Fuel pressure control Control: 0-2000bar Control accuracy: 1bar
8, Electronic power: 3 PHASE 380V or 3 PHASE 220V
>>>Optional function:
1, Test piezo injector function. 2,Test HP0 pump function. 3, With Bosch DRV VALUE
4,Checking the pump flowing.5.Forced cooling
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
Manager: Jun gang hou(Mr.hou)
Skype: nantaichina-jungang hou
Mobile: +86-15864752393
QQ: 87982354
WhatsApp: +86-15864752393
WeChat: +86-15864752393
