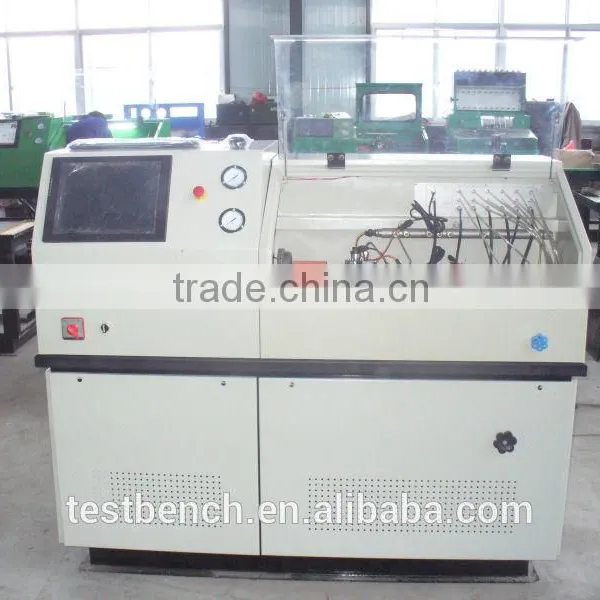

Help CenterCR3000A COMMON RAIL SYSTEM TEST BENCH
Related Products
-
CR3000A Common Rail Injector and Common Rail Pump Test Bench Banco de Pruebas Parabomba de InyeccionUS$ 3,000 - 5,000MOQ: 1 Set -
CRS200 Common Rail Pump and Common Rail Injector Test Bench/tester SimualtorUS$ 2,000 - 4,000MOQ: 1 Set
-
Common Rail Injector Flow Tools.common Rail Injector ToolsUS$ 50 - 100MOQ: 1 Set
-
Grinding Machine for Common Rail Injector Valve/diesel Injector Control Valve Grind MachineUS$ 100 - 500MOQ: 1 Set
-
CR2000 Common Rail System Test BenchUS$ 1,000 - 3,000MOQ: 1 Set
l Description
CR3000A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing. Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured value.
l System Application:
The system is suitable for detection of BOSCH, DENSO, DELPHI common rail pump and injectors. Such as CP1, CP2, CP3, HP3 series injector pump and the type of Electromagnetic injectors. It also can test 4 common rail injectors in one time.
l Technical parameters
1. Main motor speed: 0-4000 r/min, can be adjustable
- Motor power: 7.5kw, 11kw, 15kw, 18.5kw optional
- Fuel Injector open voltage
l Control range: 12v, 80v, 150v
l Control accuracy: phase adjustment
- Injector opening frequency control: 0-1000HZ
l Control accuracy: 1HZ
- Fuel injector hold time
l Control range: 0-65535us
- Delivery oil count
l Control times: 0-1000times
l Control accuracy: 1 times
7. Fuel pressure control: 0-2000 bar
l Control accuracy: 1bar
- Electronic power: 3 phase 380V / 3 phase 220V optional
Main Functions:
- Detection of the common rail injectors: Clean, pre-injection, main injection, the maximum injection, minimum( start) spraying, return oil quantity.
- Cleaning of nozzles.
- Detection: Common rail pressure sensor, pressure regulator.
- Testing environment: Oil temperature regulation, counting measure, adjust the common rail pressure, also can adjust the injection pulse width and duty cycle.
- Support system: BOSCH, DELPHI, DENSO.SIEMENS
Send Inquiry to This Supplier
