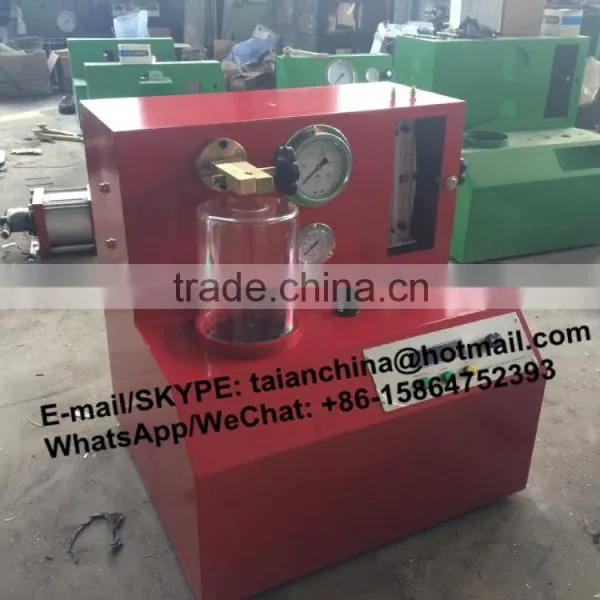

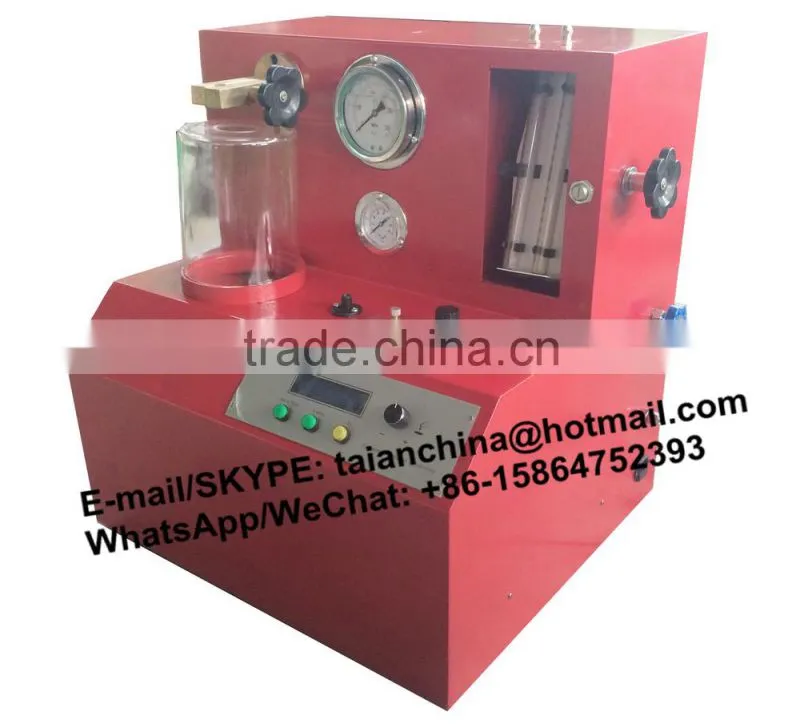

PQ1000 common rail injector test bench for bosch,denso,delphi,siemens injector
PQ1000 common rail injector test bench
PQ1000 common rail injector test bench
It is used to test the common rail injector,and it also can clean the common rail injector by Ultrasonic Cleaning Instrument.
Main Voltage(Vac) |
220V |
Main Frequency(Hz) |
50/60 |
Max Filling Volume per Tank(lit./gal) |
2 |
Input System pressure(bar/psi) |
0-10/0-145 |
System Build-up Pressure(bar/psi) |
1-1800bar/0-26100 psi |
It is used to test the common rail injector,and it also can clean the common rail injector by Ultrasonic Cleaning Instrument.
Technical data:
1.High pressure 0-1800bar
2. Check the injector starting pressure
3.Assessment of the injector spray fog quality
4. Inspeciton of the injector spray oil range
5.Check of the injector seal and angel
6.Check of the injector oil flow
7.The machine has fog dissipation convulsion device to improve the work condition.
8.It has the two garde filter to ensure the cleanliness of test.
9.The parameter of common rail injector ( fuel spray counts, frquency, pulse width, pressure etc..)
can be set willfully.
we already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) ,Gasoline pumps and injectors tester and cleaner, Turbo Charger, and Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pumps and injectors repair. Hope to cooperate with you.
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
