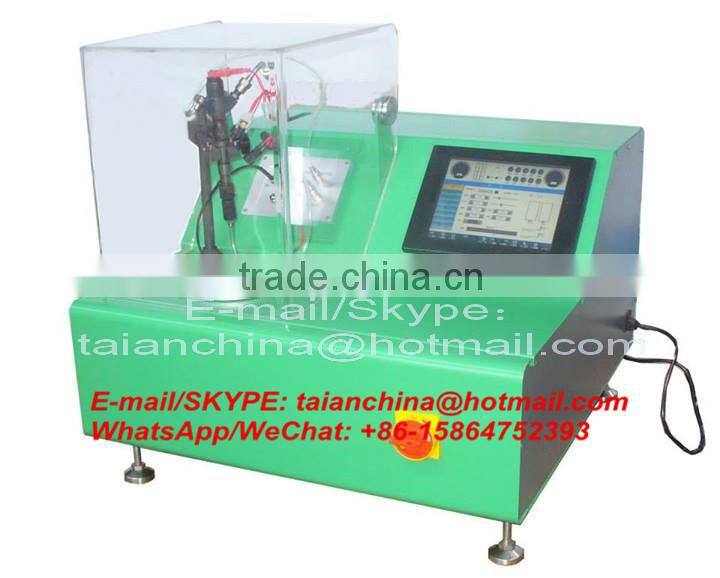

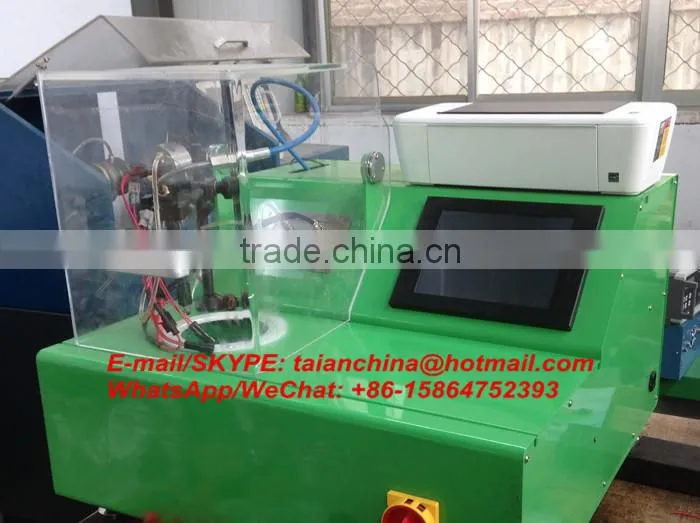

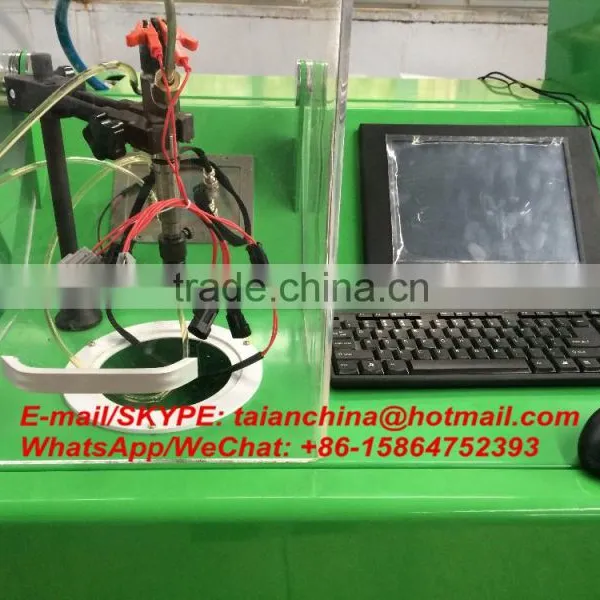

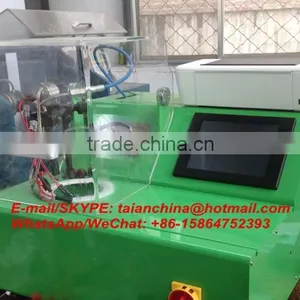

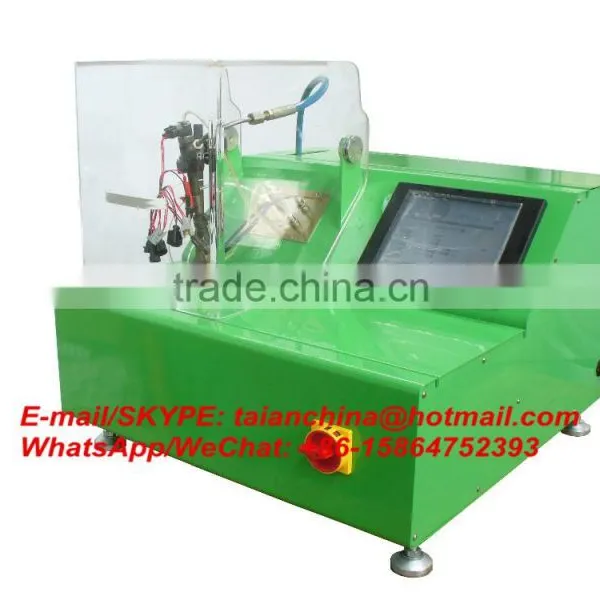

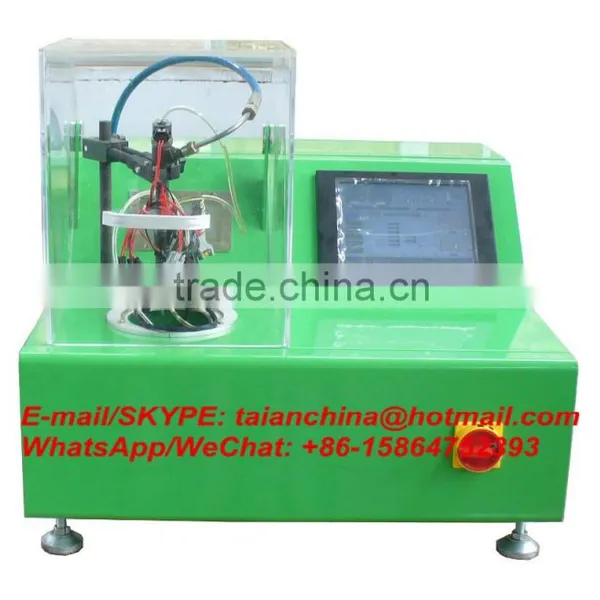

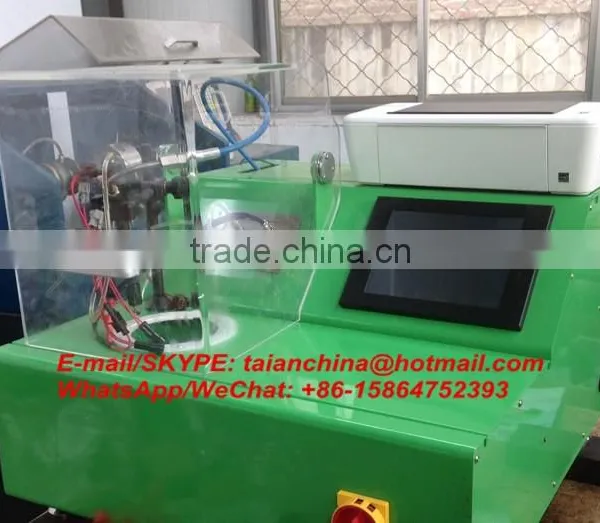

Common Rail Injector Test Bench CRI200A Bosch EPS200/PIEZO INJECTOR TESTER SIMUALTOR
US$ 4,000 - 4,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Voltage:
220v
Power:
7.5KW,11KW,15KW,18.5KW,22KW
Certification:
CE/ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PQ1000 Common Rail Injector Test Bench/piezo Injector TesterUS$ 1,000 - 1,200MOQ: 1 Set -
CRI2000 Common Rail Injector Tester/ Test BenchUS$ 2,000 - 3,000MOQ: 1 Set
-
New CRI2000 CRI2000 Bosch ,Denso Simens Injector Test Bench Digital ControllerUS$ 2,100 - 2,500MOQ: 1 Set
-
NTS205 Common Rail Injector Test Bench/piezo Injector TesterUS$ 4,000 - 4,000MOQ: 1 Set
-
EPS205 Common Rail Injector Test Bench/CR Tester/ for BOSCH,DENSO, SIEMENS, DEL PUMP Testing RepairingUS$ 3,800 - 4,400MOQ: 1 Set
Voltage
220v
Power
7.5KW,11KW,15KW,18.5KW,22KW
Certification
CE/ISO
Applicable Models
AUTO CAR
Place of Origin
China
Brand Name
NANTAI
Model Number
EPS200
Warranty
1 Years
EPS200 common rail injector test bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH original common rail pump to provide 0~2000 bar for rail pressure. The rail pressure can be adjusted automatically, and it also provide pressure overload protect. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement and
>>>CHARACTERISTIC
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4'' tactile LCD screen;
3. More than 700 kinds of injecotors data can be searched and used.
4. It is installed BOSCH common rail pump to provide 0~2000 bar
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
11.Frequency converter inside to keep the RPM.
>>>FUNCTION
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
Piezo injector testing(option function)
2. Test 1 piece of injector.
3. Test the Leakage performance of common rail injector.
4. injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)
5. Electronic fuel delivery measuring, automatic testing and detection.
6. Data can be searched and saved.
>>>TECHNICAL PARAMETER
1. output power:1.5KW
2. power voltage:220V 1phase
3. motor speed: 0-3000RPM
4. Oil pressure:0-2000bar
5. flow measure range: 0-600ml/1000times
6. flow measurement accuracy: 0.1ml
7. temperature control range: 40+-2
Packaging & Shipping
| Items per Carton: | 1 Sets / Set |
|---|---|
| Package Measurements: | 93X80X82 CM |
| Gross Weight: | 140.00 KG |
| Package Type: | standard export woodcase |
