prix de la machine de tour
- 10 Set / Sets per Month
- Qingdao port
- T/T
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Semi-Automatic | Max. Swing Diameter: | 130mm | Place of Origin: | Shandong, China |
Brand Name: | haige | Model Number: | WXC130S | Voltage: | 380V/440V |
Power(W): | 110KW | Dimension(L*W*H): | 15.3mX3.5mX2.3m | Weight: | 29t |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

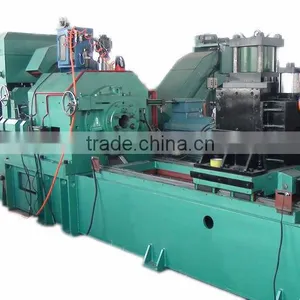

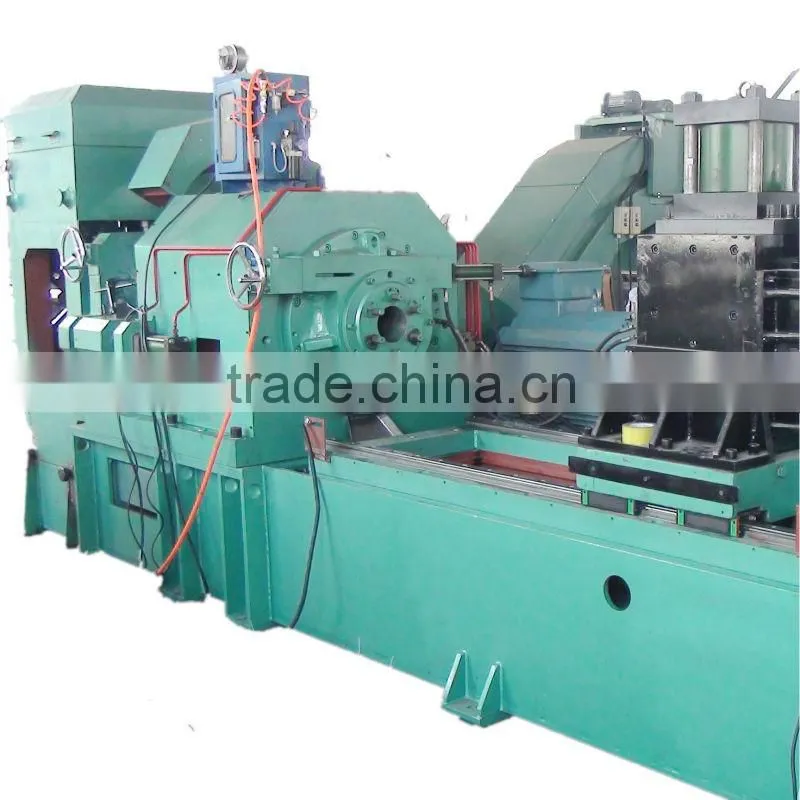

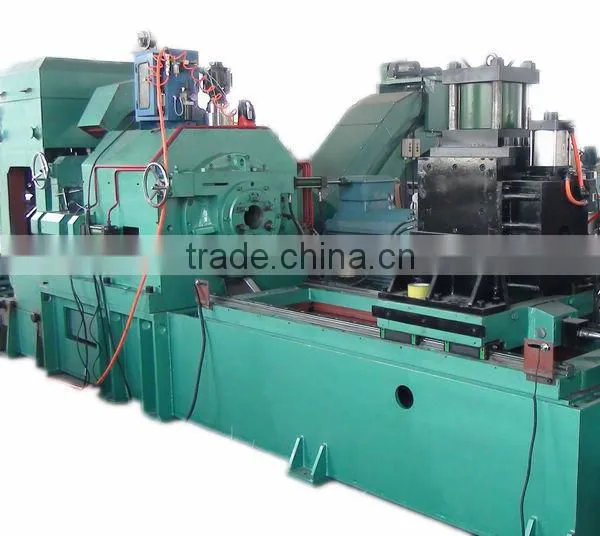

prix de la machine de tour
MODEL | WXC130S | |
RAW | Diameter Range(mm) | Φ40~Φ135 |
Raw Material Length(mm) | ≥2800 | |
Tensile Strength(Mpa) | ≤1100 | |
Surface Hardness | ≤HB320 | |
Curvature(mm/m) | ≤1.50 | |
Diameter Tolerance | According to GB 702-88 second group | |
Roundness | ≤50% of the diameter tolerance | |
Surface Roughness(Ra) | ≤25-50μm | |
FINISHED | Diameter Range | Φ35-Φ130 |
Unilateral Turning Depth (mm) | 1-2.5 | |
Diameter Tolerance | ≤IT9 (standard tolerance grade) | |
Surface Roughness(Ra) | ≤12.5μm | |
Curvature(mm/m) | ≤1.5 | |
Roundness | ≤0.03 | |
Feeding Cutting Speed(m/min) | 0.8-1.5 (for continuous chips and high strength and hardness should reduce the cutting speed) | |
Cutter Head Rotational Speed(rpm) | 240-670 (Six poles) 360-1000 (Four poles) | |
Main Machine Motor Power(KW) | 110 | |
Auxiliary Machine Motor Power(KW) | 11(feeding part) | |
Main Machine Outline Dimensions (Length*Width*Height) m | 5.3 X 3.5 X 3 ( for your reference) | |
Full Set Machine Outline Dimensions (Including auxiliary) (Length*Width*Height) m | 18 X 3.5 X 3 ( for your reference) | |
Main Machine Weight | 20.5 (29) | |
Total Installed Capacity(KW) | 130 | |
Compressed Air Source (users prepare by themselves) | 0.5~0.8MPa,1.8m3/min,more than 0.8 m3gasholder, two-stage oil-water separator and compressed air freezing drier |
1. Green, with no environmental harm.
2. Surface of finished goods possesses better brightness.
3. Faster turning and straightening, and higher working efficiency.
4. Have unique advantages in processing over-long bars
(including infinitely long coiled raw materials).
5. Operation is simple, reducing labor cost and enhancing profit.
6. All of the metal shavings of turning can be recycled and resold,
reducing cost and enhancing profit once again.
practical; stable processing; highly speed; high efficiency; better surface quality. Online adjusting tool holders. Full-automatic online loop-locked control of material diameter can be achieved if more control points are added. The whole line of the equipment owns high degree of automation. Turning speed of materials can reach 1-12m/min. The equipment possesses automatic and manual control systems, and the two systems can be interlocked in usage.
New-generation products of centerless lathe series independently developed by Yantai Haige Machine Tools Co., Ltd are mainly used for the skin processing of long and round metal materials, including round steel (tubing) etc. They can rapidly wipe off the defects of bars, such as surface crack, oxide layer and decarburized layer. Furthermore, they can produce high-quality bar, tubing, and wire rod of metal brightness with high precision and surface roundness. The efficiency is several times to more than ten times superior to conventional craft, greatly reducing numbers of workers and equipment cost.
Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 1999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles.
The company is equipped with specialized technical research and development department, and its ability of research and development, configuration of software and hardware and scale of personnel rank first in the industry. From design concept, technological level, production scale, quality in use to after-sale service, the company attains domestic leading level. It owns professional factories for machining and assembling, and full set of advanced equipment of precision machining, so it can produce high-precision core components by itself. Further more, the company possesses abundant ability of research and development, and perfect after-sale service system.
Diameters of products manufactured by the machine vary from Φ5mm to Φ350mm. The company can contract for full-set planning, design and manufacture of metal bar, tubing, and finishing line of wire rod, and meet the needs of customers at different levels. We are able to help users achieve digitization and automation control and management. We can also meet the needs of larger enterprises at home and abroad, and enterprises which require the equipments have higher degree of automation, to fundamentally enhance users’ production efficiency and product quality.
The company regards quality of products as the life. It has passed ISO9001 international quality system certification, and strictly enforces the ISO9001 international quality management system. Dependent on strong software and hardware facilities and strict quality control, the company has passed the acceptance of State Administration for Entry-Exit Inspection and Quarantine Bureau, and furthermore, centerless lathe and straightening machine have won the Export License of Product Quality.
Sky Lyu | ||
haigewmlv |
| |
+8618663865109 | ||
+8618663865109 | ||
2597918075 | ||
+86186638865109 | ||
If you have any other questions, just feel free to contact me at any time.
Also welcome to visit our factory for further negotiation!
