calow werkzeugmaschinenfabrik gmbh

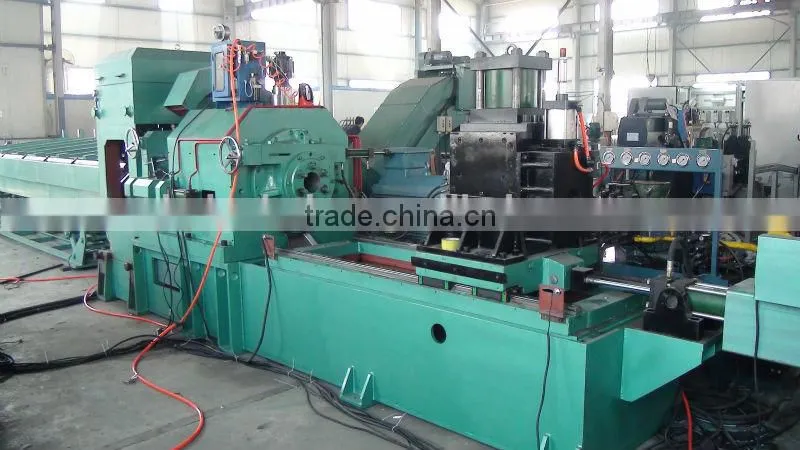

Series WXC centerless lathe is the highefficiency lathe which is specialized in rough and precise processing of the metal bars surface. It removes the decarburized layer, cracks and other defects from the surface of the bars with high precision. In the working process, the metal bar doesn’t rotate and just walks forward. The cutter tools are driven to rotate by the cutter head to rotate fastly to peel the surface of the bars.
Advantages compared with the general lathe
1. The over-long metal bars or the wire rods can also be processed.
2. The precessing speed: 1~12m/min which is several times faster than the general lathe.
3. High precision. The diameter tolerance ≤IT9 while the surface roughness ≤6.3μm after peeling. The surface roughness can be less than 0.8μm if our straightening machines are used afterward.
Techinical Parameters
MODEL |
WXC130S |
|
|
RAW MATERIALS
|
Diameter Range(mm) |
Φ45~Φ130 |
Raw Material Length(mm) |
≥2800 |
|
Tensile Strength(Mpa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-2004 second group |
|
Roundness(mm) |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25-50μm |
|
|
FINISHED
|
Diameter Range |
Φ44~Φ129 |
Unilateral Turning Depth (mm) |
1~2.5 |
|
Diameter Tolerance |
≤IT9 (standard tolerance grade) |
|
Surface Roughness(Ra) |
≤12.5μm |
|
Curvature(mm/m) |
≤1.5 |
|
Roundness(mm) |
≤0.03 |
|
Application
1. Ferrous metals:
Stainless steel, bearing steel, spring steel, tool steel, structural steel, alloy steel, free-cutting steel, air valve steel, gear steel, others;
2. Nonferrous metals:
Copper alloy, titanium alloy, magnesium alloy, aluminum alloy, etc. Widespread in preparation link in manufacturing of slender axles, hydraulic/pneumatic elements, bearings, springs, auto parts, textile machinery, processing of cold forging materials, instruments, steel pipes, cutters, engineering machinery, sports equipment and other machiner.
3.Widely applied to industries of copper, titanium, aluminum, magnesium, petroleum, power and bridge
(e.g. piston rod, optical axis, bolt, spring, rack, rod thread, stainless steel rod, copper rod, titanium rod, aluminum rod, magnesium rod, bearing ring, draglink, roller shaft, pin, polishing rod, screw, core rod, oil drill pipe, tightwire, pipe blank).
Warranty period: 1 year
Free long-term techincal support
Excellent 24h fast response service

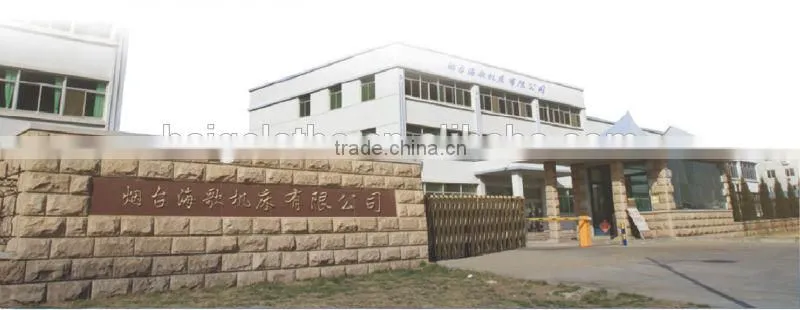

Yantai Haige Machine Tools Co., Ltd is a professional company in manufacturing ofMetal bar peeling machine, Metal bar straightening machine, Skiving roller burnishing machine and piston rod poslishing machine, etc.
Our Certificates
Welcome you to contact me for more information.
