Home > Products > Steel bar peeling machine > Bar Peeling Machine for Various Diameter Bar

Bar Peeling Machine for Various Diameter Bar

Name: Bar Peeling Machine for Various Diameter Bar
Brand: haige
Availability: InStock

FOB Price

US$ 83,500 - 116,700 / Set

1 Set(Min. Order)

Port Qingdao seaport
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Semi-Automatic
Max. Swing Diameter	dia 60mm	Place of Origin	Shandong, China
Brand Name	haige	Model Number	WXC60B
Voltage	380V/440V	Power(W)	55KW
Dimension(LWH)	3.0 X 2.5 X 2.0 m (main machine )	Weight	5.0t (main machine)
Certification	ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

bar turning machines

diameter 6~40mm

Yantai Haige Machine Tools Co., Ltd. is a Professional Manufacturer of round steel bar surface turning machine and Straightening Machine and Cylinder processing equipment and automatic production line.

Including Working Videos:

1. Round steel bar turning machine-CNC and Semi-automatic

/v_show/id_XNzU0MjY0OTc2.html

/v_show/id_XNzU5MTQ0NTAw.html

2. Round steel bar two rolls vertical straightening machine

3. turning and straightening automatic production line

/v_show/id_XNzU4NTkwNDU2.html

/v_show/id_XNzU4NTkzNTEy.html

4. Cylinder processing equipment(CNC skiving roller burnishing machine and CNC piston rod polishing machine)

/v_show/id_XNzU4NjU3Mzgw.html

5. CNC high-speed circular saw machine(single-head and double-heads)

/v_show/id_XNzU0MjYyNDMy.html

/v_show/id_XNzU0MjcxOTY0.html

6. Automatic double-heads chamfering machine

/v_show/id_XNzU5MDQxOTQ0.html

Characteristics:

1. Series WXC Peeling machine is a high-efficiency lathe which is speicialized in rough processing and finishing of the surface of slender shaft.

2. Not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision.

3. During processing, the bar itself doesn’t rotate. The cutter head drives the tools rotating at high speed to peeling the surface of the bar. At the same time, after peeling , the bar keeps walking straight ahead.

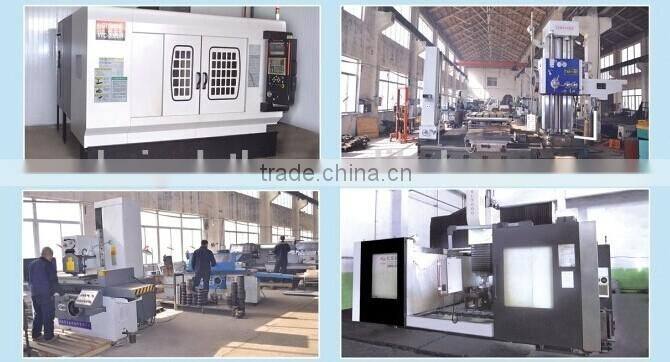

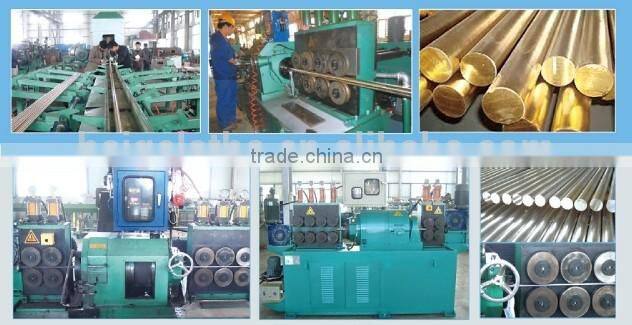

Processing equipment and scene

Field of Application

The field of Mechanical manufacturing:

such as mechanical processing, bearing manufacturing, oil machinery, automobile and engineering machinery parts manufacturing, metallurgy machinery and many other fields.

The field of material processing:

The products are suitable for processing all kinds of materials of round bars, such as structural steel, alloy steel, spring steel, bearing steel, tool steel and other ferrous metal materials; copper alloy, aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials.

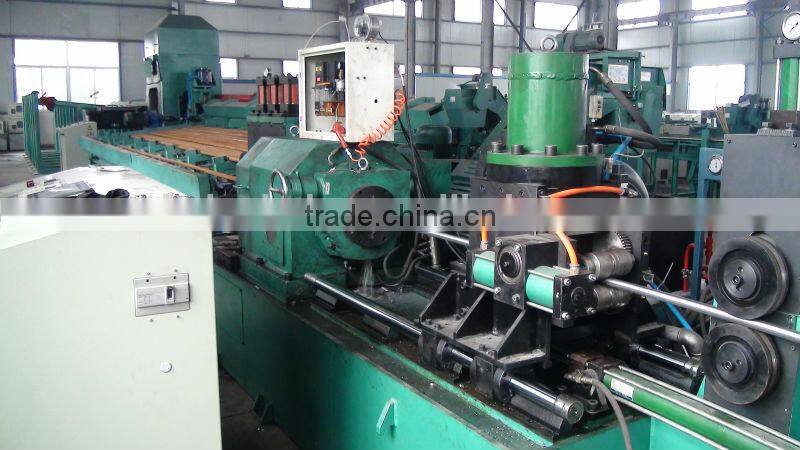

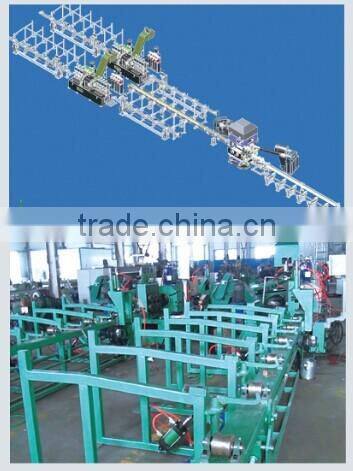

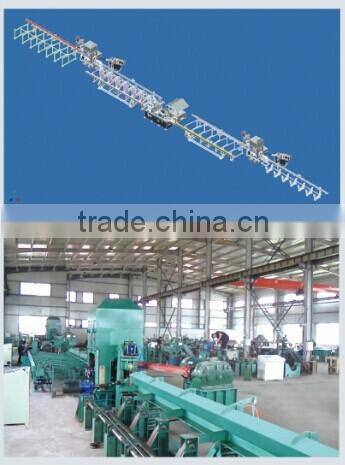

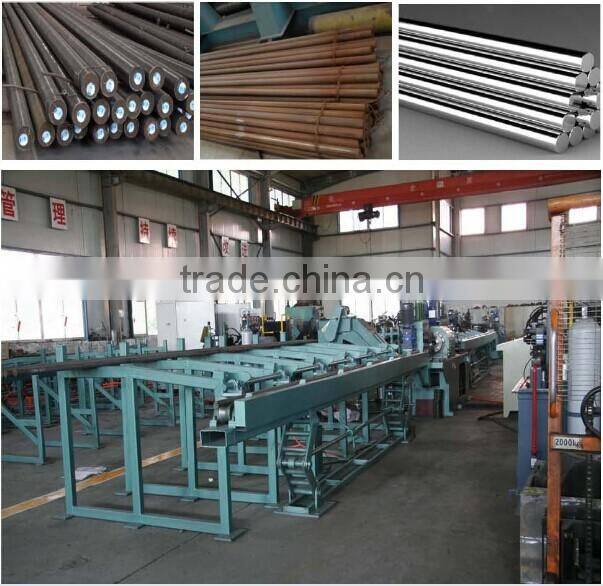

Round steel bar automatic production line

1. 1 set prestraightening machine + 1 set peeling machine + 1 set precision straightening machine (see the below left-hand picture)

2. 2 sets peeling machines + 1 set precision straightening machine(see the below right-hand picture)

Main Technical Parameters
Specification		WXC60B
Before Peeling Required	Diameter Range(mm)	Φ14~Φ60
	Length(mm)	≥2200
	Yield Strength σb (Mpa)	≤1100
	Surface Hardness	≤HB320
	Original Curvature (mm/m)	≤1.50
	Diameter Tolerance	According to GB 702-2004 second group
	Roundness	≤50% of the diameter tolerance
	Surface Roughness(Ra)	≤25~50μm
After Peeling	Diameter Range	Φ13.5~Φ58
	Diameter Cutting Depth (mm)	0.5~2.0
	Diameter Tolerance	≤IT9
	Surface Roughness(Ra)	≤6.3μm
	Roundness(mm)	≤0.03
Feeding Speed(m/min)		1.0~5.0
Cutter Head Rotational Speed(rpm)		440~1300
Main Machine Motor Power(kw)		45( Four Poles)
Main Machine Outline Dimensions(m)		3.0 X 2.5 X 2.0
Main Machine Weight (t)		5
Total Capacity(kw)		55

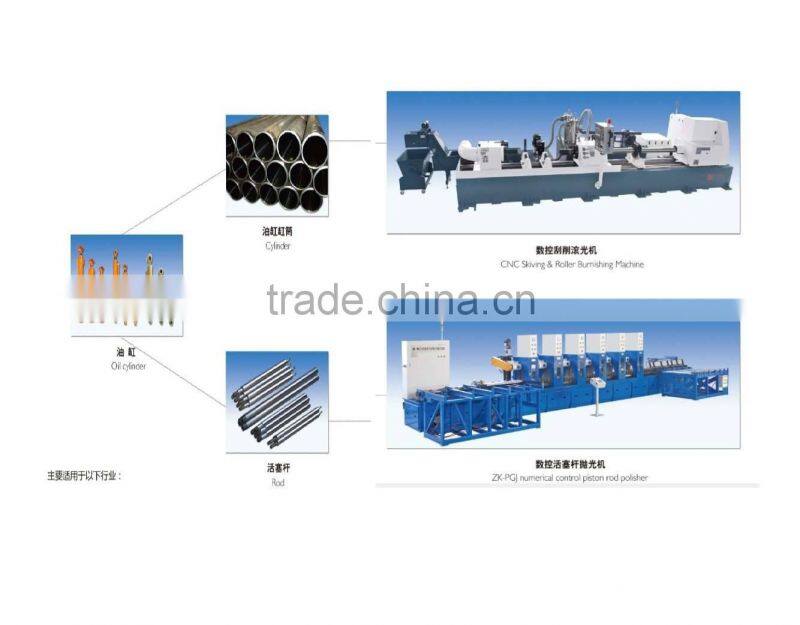

Cylinder Processing Equipment

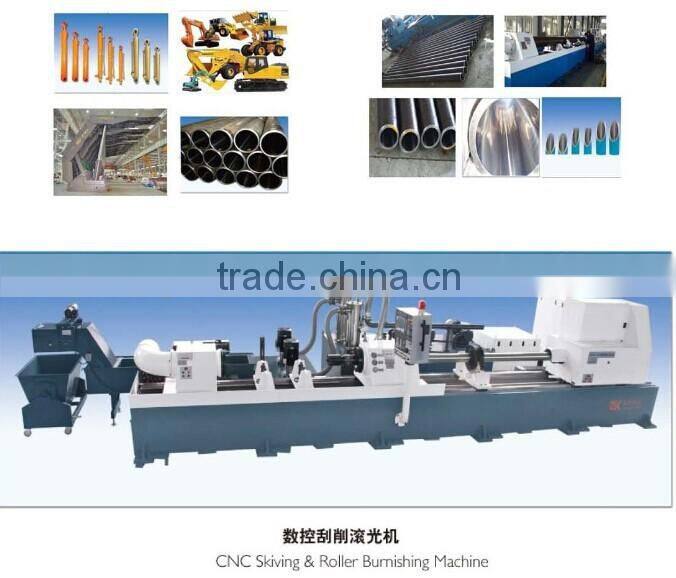

CNC skiving roller burnishing machine

1. it can process inner diameters from Ø40 to Ø250 and the lengths of 1.5m, 2m, 3m, 4m, 6m, 9m, and 10m

2. Processing speed is nearly 20 times that of honing.

3. Processing precision can reach level IT8, and surface roughness can reach Ra0.05-0.4μm.

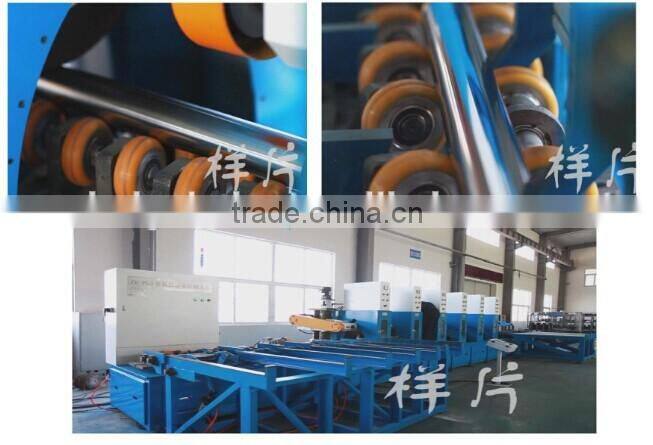

CNC piston rod polishing machine

it mainly applied to polish before and after the plating of piston rods by pass-type dyr polishing.

1. 6 sets polishing heahs, including the first 4 sets are multi-leaf wheels, the fifth set is linen wheel and the sixth set is cotton wheel.

2. SIEMENS Brand: color touch screen, frequency converter, and PLC, etc.

3. automatic loader and unloader

4. high precision, roughness Ra0.2~0.85 μm

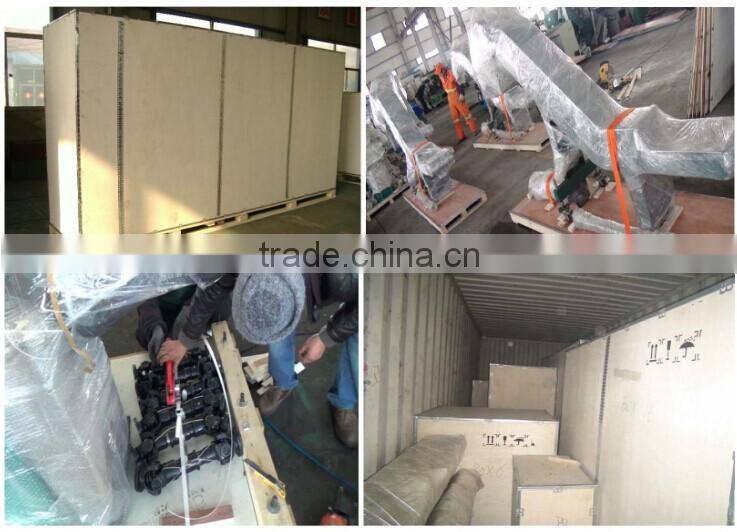

Export Packaging
