CNC stainless steel bar peeling machine
diameter 50~160mm
Yantai Haige Machine Tools Co., Ltd. is a Professional Manufacturer of round steel bar surface turning machine and Straightening Machine and Cylinder processing equipment and automatic production line.
Including:
1. Round steel bar peeling (turning) and straightening machine
2. Round bar surface processing automtatic production line
3. Cylinder processing equipment
4. Automatic double-heads cutting machine
5. automatic double-heads chamfering machine
Characteristics:
1. Series WXC Peeling machine is a high-efficiency lathe which is speicialized in rough processing and finishing of the surface of slender shaft.
2. Not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision.
3. During processing, the bar itself doesn’t rotate. The cutter head drives the tools rotating at high speed to peeling the surface of the bar. At the same time, after peeling , the bar keeps walking straight ahead.

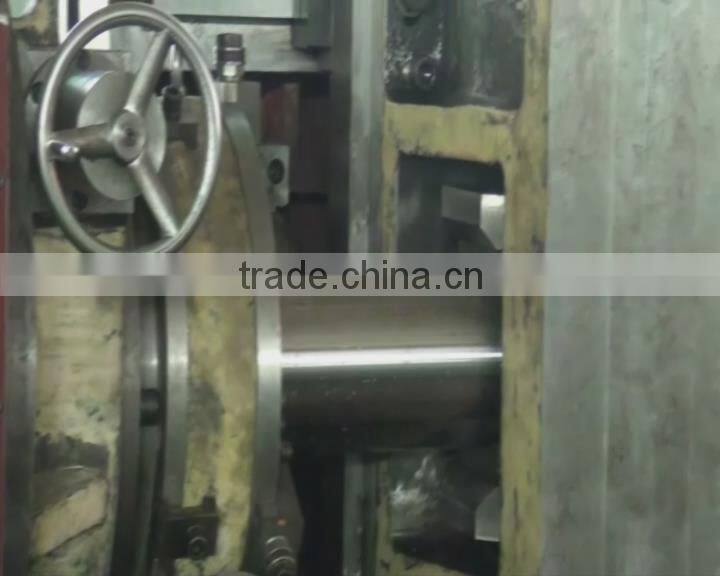

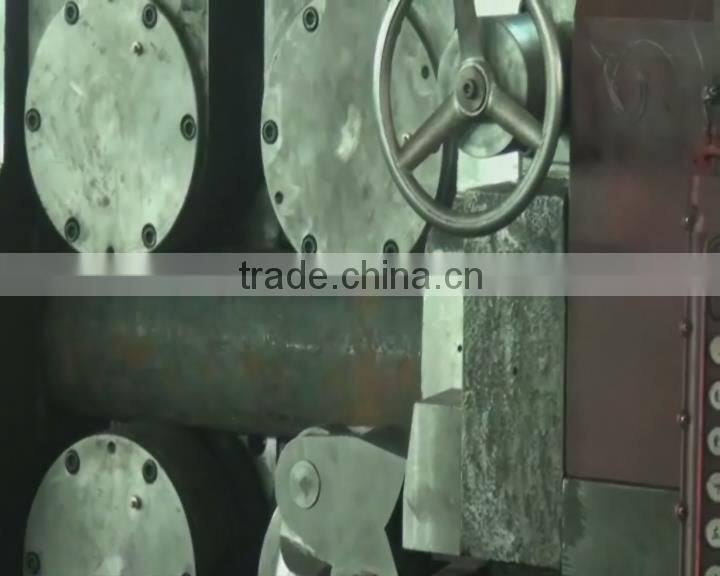

Processing equipment and scene
Field of Application
Field of Mechanical manufacturing:
such as mechanical processing, bearing manufacturing, oil machinery, automobile and engineering machinery parts manufacturing, metallurgy machinery and many other fields.
The field of material processing:
The products are suitable for processing all kinds of materials of round bars, such as structural steel, alloy steel, spring steel, bearing steel, tool steel and other ferrous metal materials; copper alloy, aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials.
Round steel bar automatic production line
1. 1 set prestraightening machine + 1 set peeling machine + 1 set precision straightening machine (see the below left-hand picture)
2. 2 sets peeling machines + 1 set precision straightening machine(see the below right-hand picture)
Automatic production line woking videos for your reference
1. /programs/view/gabTXYCHxZA/
Above is round bar surface processing automatic production line 80.1
2. /programs/view/9KlXb6WBqso/
Above is round bar surface processing automatic production line 80.2
Working video for your reference
| Main Technical Parameters | ||
| Specification | WXC160S | |
|
Before Peeling Required |
Diameter Range(mm) | Φ50~Φ160 |
| Length(mm) | ≥4000 | |
| Yield Strength σb (Mpa) | ≤1100 | |
| Surface Hardness | ≤HB320 | |
| Original Curvature (mm/m) | ≤1.50 | |
| Diameter Tolerance | according to GB 702-2004 second group | |
| Roundness(mm) | ≤50% of the diameter tolerance | |
| Surface Roughness(Ra) | ≤25-50μm | |
| After Peeling | Diameter Range | Φ48~Φ155 |
| Diameter Cutting Depth (mm) | 2.0~5.0 | |
| Diameter Tolerance | ≤IT10 | |
| Surface Roughness(Ra) | ≤6.3μm | |
| Roundness(mm) | ≤0.05 | |
| Feeding Cutting Speed(m/min) | 0.5~5 | |
| Cutter Head Rotational Speed(rpm) | 60~800 | |
| Main Machine Motor Power(kw) | 160 | |
| Main Machine Outline Dimension(m) | 5.5 X 3 X 2.5 | |
| Main Machine Weight(t) | 30 | |
| Total Capacity(kw) | 210 | |
Cylinder Processing Equipment
Working video for your reference
CNC Skiving roller burnishing machine
CNC Piston rod polishing machine
Export Packaging
