Factory Introduction
Yantai Haige Machine Tools Co.,Ltd. was built in 1997,which is mainly producing series WXC Centerless Lathe(Bar Peeling Machine),Series JY Bar Straightening Machine,Abrasive Belt Grinder (Belt Sander Polishing Machine) and auxiliary machine,etc.
We regard Customer’s Satisfaction as our unremitting pursuit.
Based on more than ten years manufacturer and design experience,our machine have been exported to Russia,Vietnam,India,Korea and other countries and regions.
Factory real landscape
Processing Machinery
Accessories Area
Administrative Area
CNC steel rod buffing machine

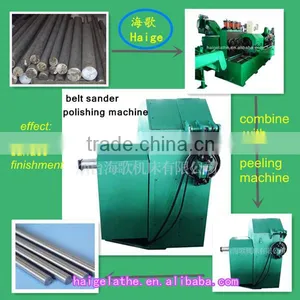

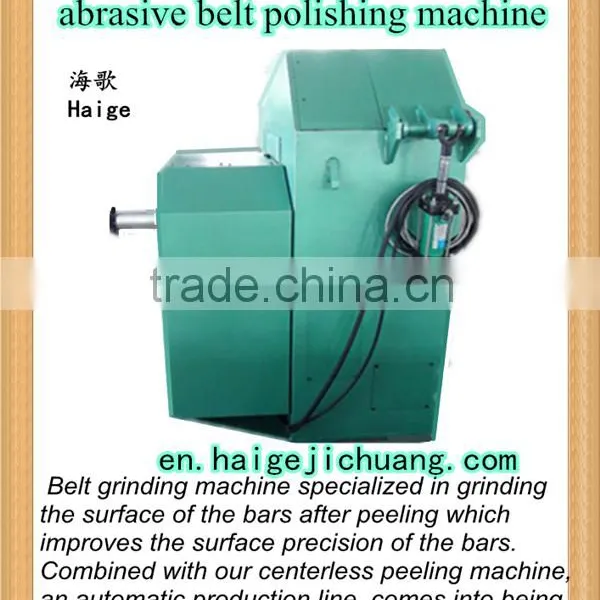

Abrasive Belt Sander Polishing Machine
Abrasive belt grinder is specialized in grinding the surface of the bars and it can improve the surface precision of the bars.
Technical Parameters of Abrasive Belt Grinder--YM350SA
Specification |
YM350SA |
|
|
Requirements before grinding |
Diameter range(mm) |
Φ160-Φ350 |
Length required(mm) |
≥3000 |
|
Yield strength σb(Mpa) |
≤1400 |
|
Surface hardness |
≤HRC60 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter tolerance |
≤IT10 |
|
Roundness |
≤50% of diameter tolerance |
|
Surface roughness(Ra) |
≤3.2μm |
|
|
After grinding |
Diameter range(mm) |
Φ155-Φ350 |
Amount of grinding(mm) |
0-100μm |
|
Diameter tolerance |
≤IT10 |
|
Surface roughness(Ra) |
≤0.5μm |
|
Feeding speed(stepless speed)(m/min) |
0.75-1.5 |
|
Belt reel speed(r/min) |
40r/min(24-48r) |
|
Main motor power(kw) |
30kw |
|
Feeding motor power(kw) |
3kw×2 (stepless speed) |
|
Dimension of main machine(m) |
8m×3m×2m |
|
Total capacity(kw) |
45kw |
|
Roller diameter(mm) |
Φ310 |
|
Roller motor power(kw) |
2.2kw×2 |
|
Lifting motor power(kw) |
2.2kw×2 |
|
Wet dust removal motor power(kw) |
0.45 |
|
Hydraulic station motor power |
2.2kw |
|
Running noise |
≤75dB |
|
A. 12 months Warranty period.
B. 24 hours welcome to your enquiry.
D.Engineers can offer overseas service,including
overseas installation,commssioning,training,etc.
E.Special discount can be provided to our distributor.
Machine Equipment Related-----Wire Rod Production Line

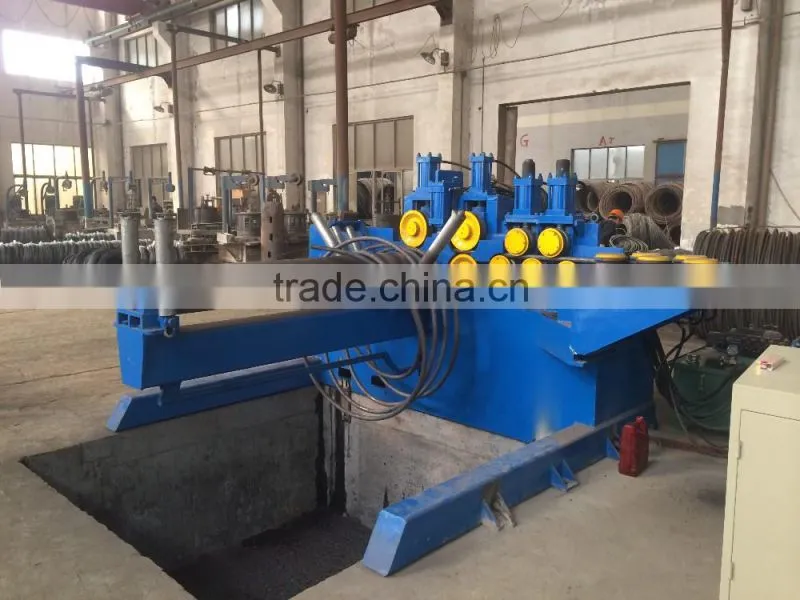

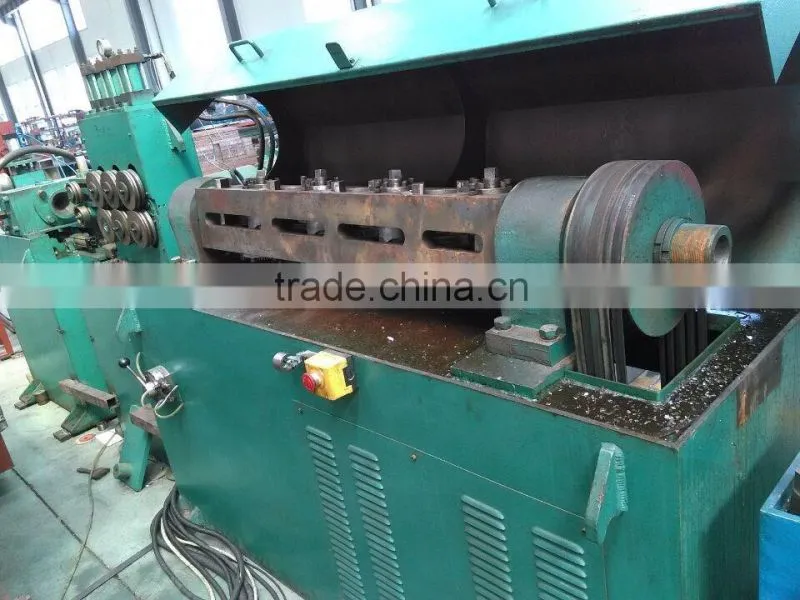

Wire Rod Production Line
Wire Rod to Wire Rod Production Line
Processing Description
Loader+Uncoiler Machine+Centerless Lathe+Pre-bending Machine+Receiving Racks
Main Technical Parameters
Specification |
KP25 |
|
|
Requirements before Peeling
|
Diameter range(mm) |
Φ8-Φ25 |
Yield strength σb (Mpa) |
≤900 |
|
Surface hardness |
≤HB320 |
|
Requirement for curvature(mm/m) |
peeling≤1.5 but no dead blend |
|
Diameter tolerance |
d-2-GB/T702-2004 |
|
Roundness |
≤50% of diameter tolerance |
|
Surface Roughness (Ra) |
≤25μm |
|
|
After peeling
|
Dia peeling depth (mm) |
0.5-1.5 |
Diameter range (mm) |
Φ7.5-Φ23.5 |
|
Diameter tolerance |
≤h10 |
|
Surface roughness(Ra) |
≤6.3μm |
|
Roundness |
≤0.03 |
|
Speed(stepless speed) |
1.0-8.0m/min |
|
Motor of uncoiler machine |
15kw |
|
Feeding motor(uncoiler machine) |
2.2kw |
|
Main motor (centerless lathe) |
45kw |
|
Feeding motor(centerless lathe) |
4kw×2 |
|

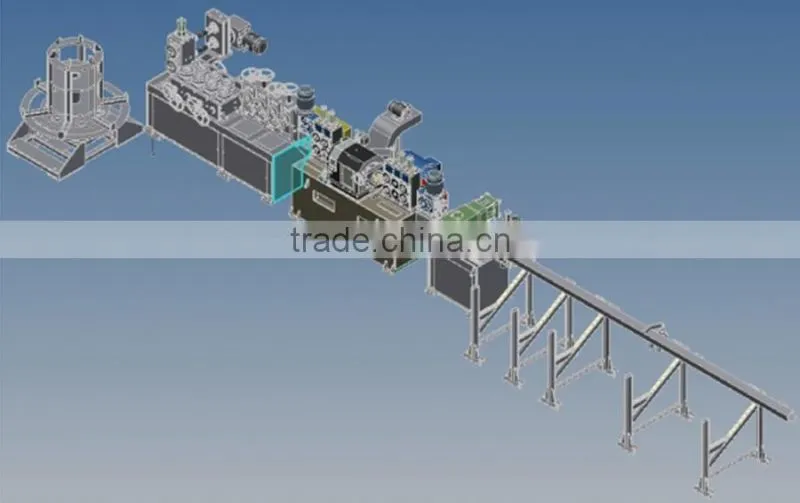

Wire Rod to Bar Production Line
Processing Description
Loader+Uncoiler Machine+Centerless Lathe+Rotary Hub Straightening Machine+Pre-bending Machine+Unloader
Main Technical Parameters
Specification |
KP25 |
|
|
Requirements before Peeling |
Diameter range(mm) |
Φ8-Φ25(without dead bending) |
Yield strength σb (Mpa) |
≤900 |
|
Surface hardness |
≤HB320 |
|
Requirement for curvature(mm/m) |
peeling≤1.5 but no dead blend |
|
Diameter tolerance |
d-2-GB/T702-2004 |
|
Roundness |
≤50% of diameter tolerance |
|
Surface Roughness (Ra) |
≤25μm |
|
|
After peeling |
Dia peeling depth (mm) |
0.5-1.5 |
Diameter range (mm) |
Φ7.5-Φ23.5 |
|
Diameter tolerance |
≤h10 |
|
Surface roughness(Ra) |
≤6.3μm |
|
Roundness |
≤0.03 |
|
Speed( stepless speed) |
1.0-8.0m/min |
|
Motor of uncoiler machine |
15kw |
|
Feeding motor(uncoiler machine) |
2.2kw |
|
Main motor (centerless lathe) |
45kw |
|
Feeding motor(centerless lathe) |
4kw×2 |
|
Any questions,please feel free to contact me.I will give you soon reply.
