Steel Round Bar Finishing Line With Advanced Technology

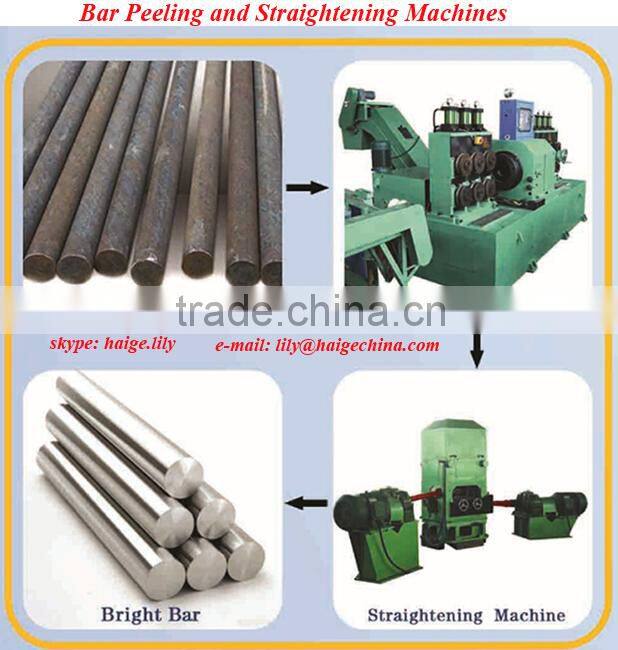

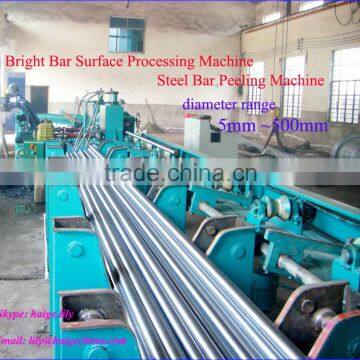

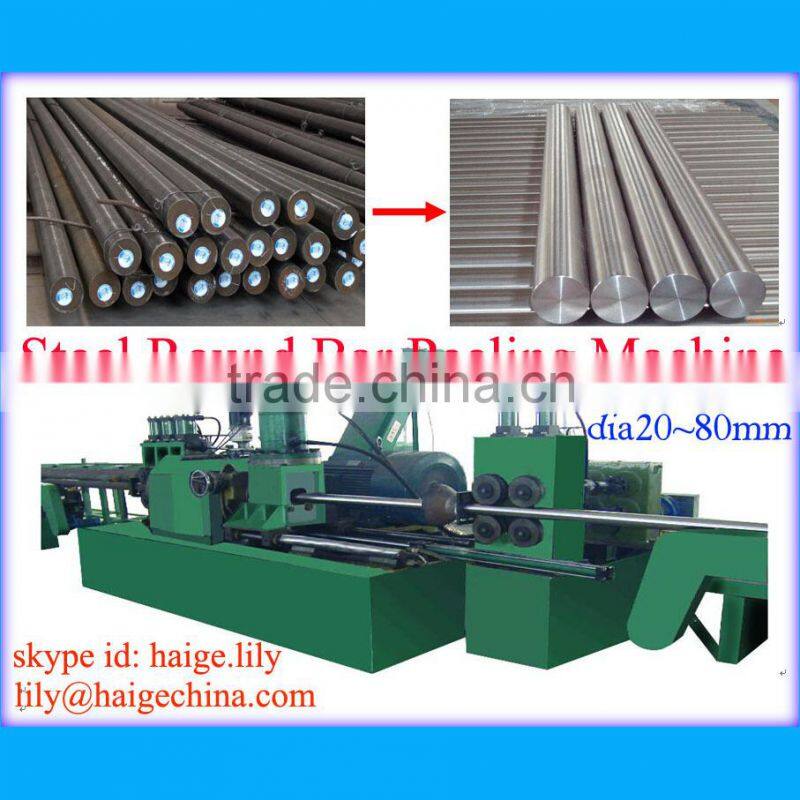

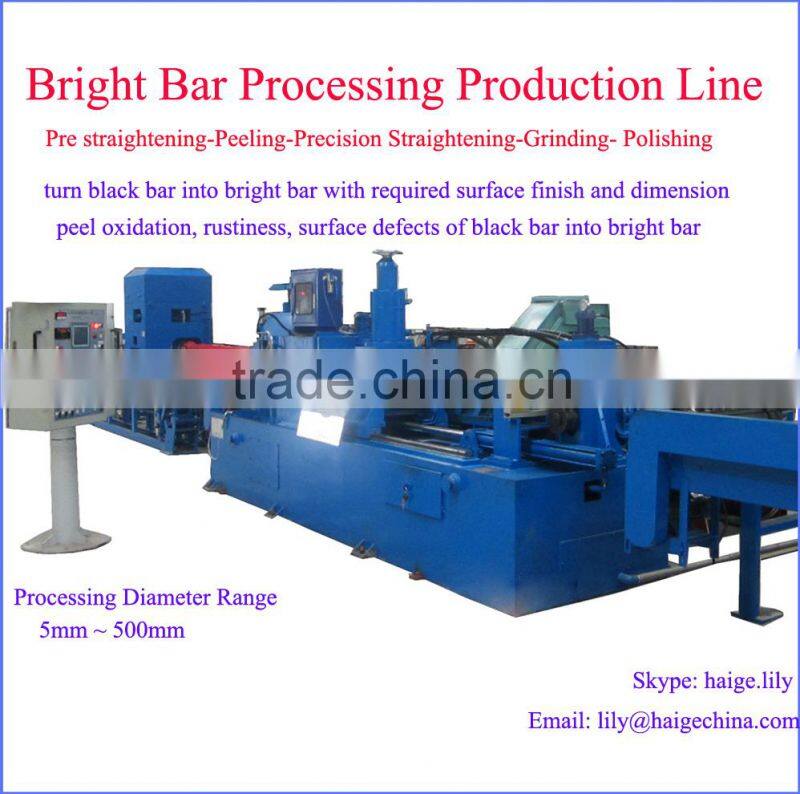

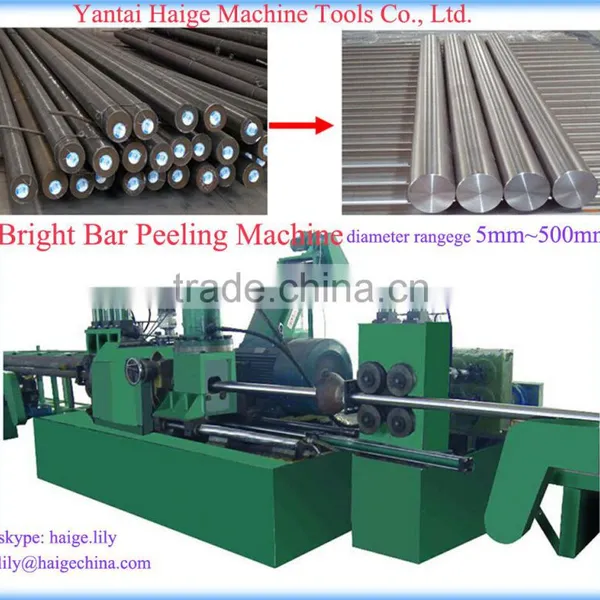

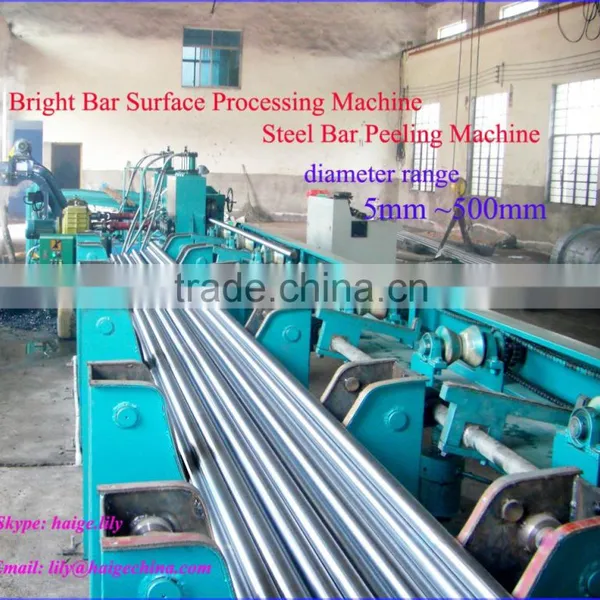

Series WXC Peeling machine is a high-efficiency lathe which is specialized in processing the surface of steel round bar and steel wire rod, for example, straightening, peeling / turning, cutting  and polishing, etc.

Not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision.

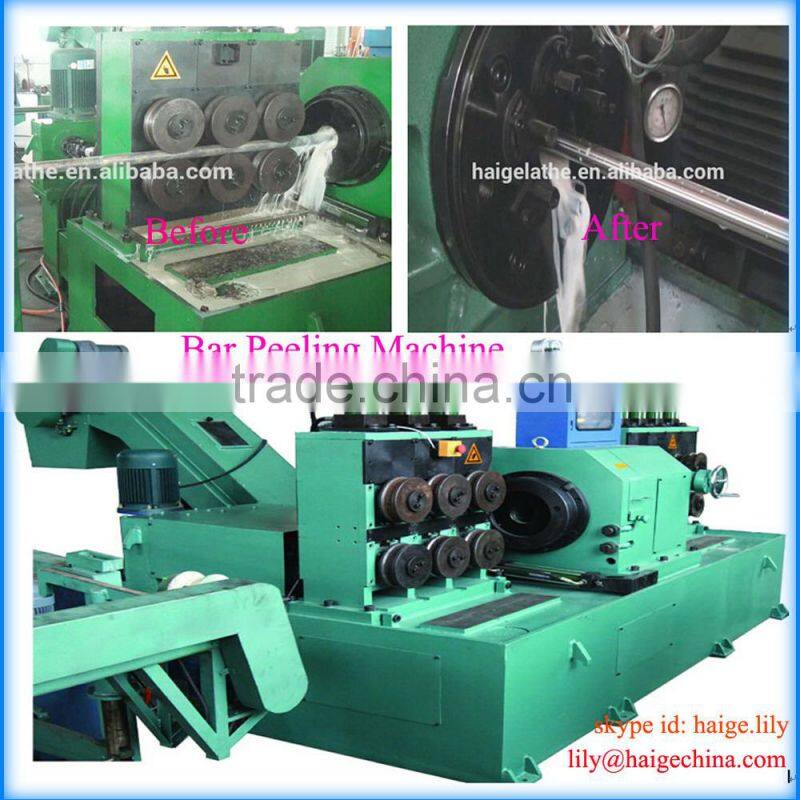

During processing, the bar doesn’t rotate itself. The cutting tools rotates at high speed to peel the surface of the bar. At the same time, after peeled , the bar keeps walking forward.
Shapes of Workpiece are requested long steel round bar and steel wire rod.

Compared with ordinary lathe / universal lathe

1. When processing over-length bar, peeling machine has incomparable advantages.

    Univeral lathe is good at processing short bar. But there is great restriction for processing long bar.

    In theory, peeling machine can process the bar of infinite length.

2. Peeling machine is not only processing round bar, but also can process steel wire / coil.     Including from wire rod to wire rod and from wire rod to bar. That's the ordinary lathe can’t do it.

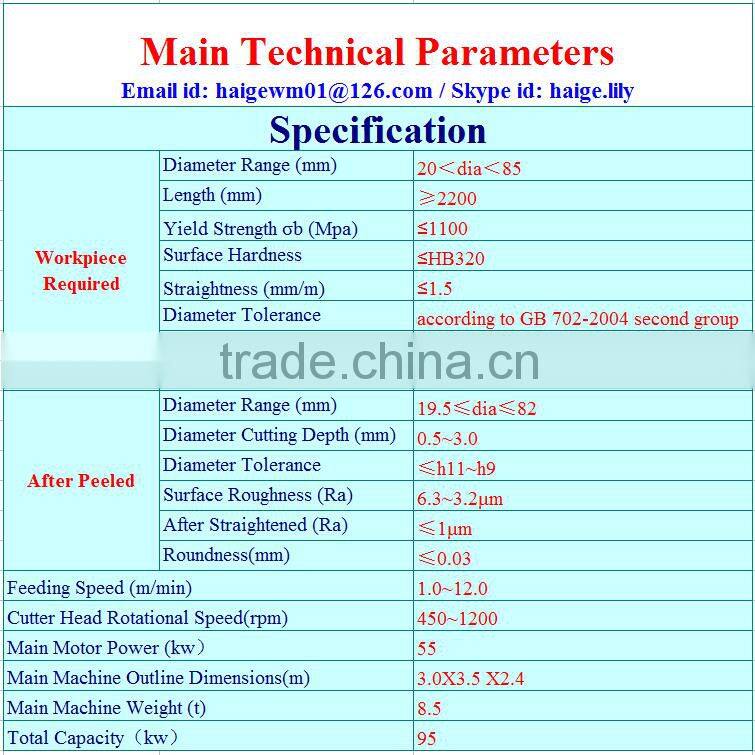

3. Processing speed can reach up to 1~12m/min, the working efficiency of peeling machine is dozens of times of the ordinary lathe.

4. High precision, after peeled, tolerance of diameter can reach≤h11~h9, surface roughness Ra≤3.2μm. After straightened, Ra≤1μm.

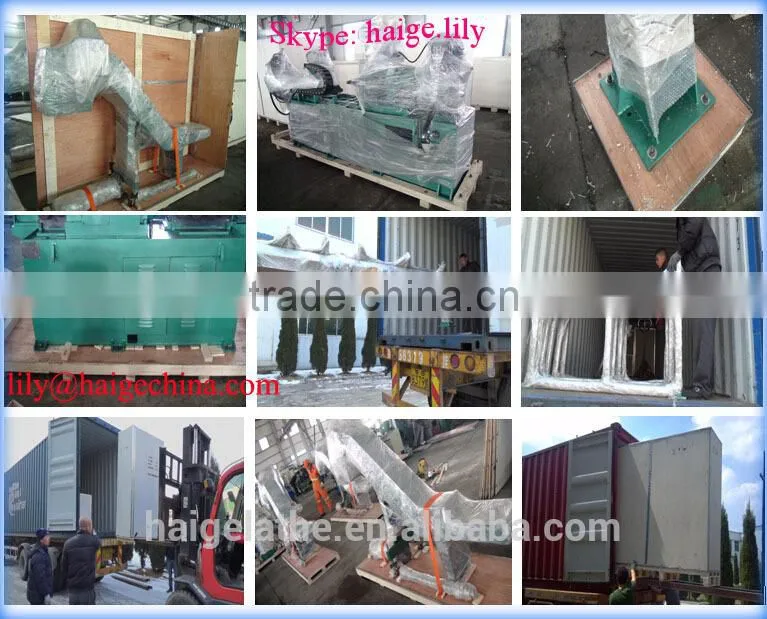

we have much experience in exporting transportation packaging.

Taking multi protection measures:

The first layer

wrapping with foam film and stretch film for the special components, in order to avoid moisture.

Second layer

inside of plywood box, adopting small square plywood block and strapping belt to fix.

Third layer

the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.

Fourth layer

in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.

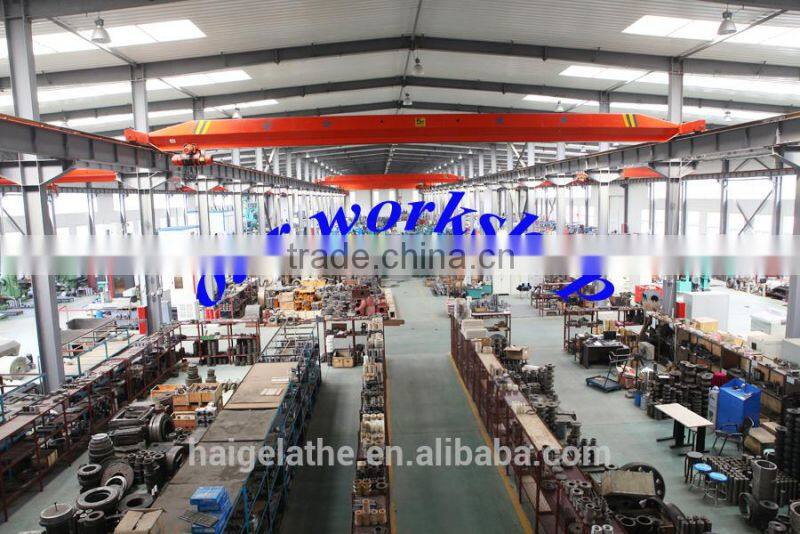

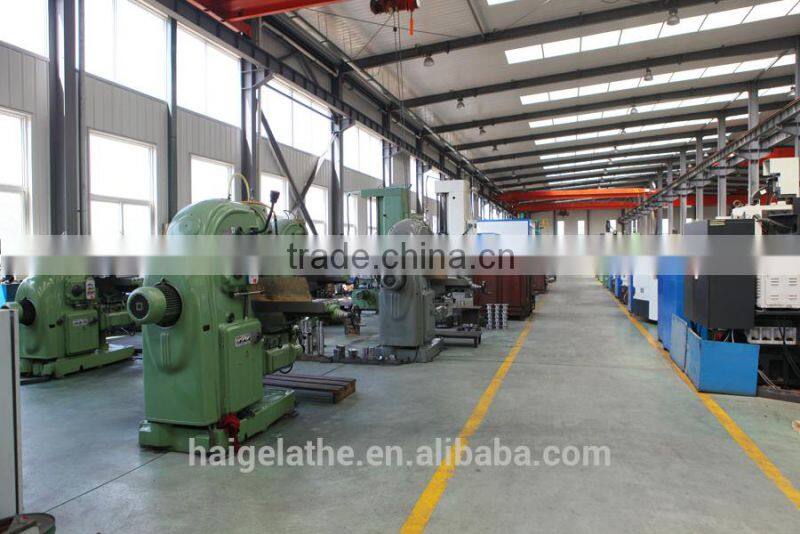

The company is based on the manufacturing plant--Yantai Haige machine tools Co., Limited, which is mainly engaged in producing and sell bar peeling machines (centerless lathes), straightening machines, polishing machines( abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel (bright steel) for more than ten years.

Our company has strong R&D and production capacity. With advanced technology, high quality, high precision, high reliability, high efficiency, excellent after-sale servie, our metal finishing equipments in full sets not only have been sold well to nearly thirty domestic provinces and cities, but also spread to many other countries in the world.
