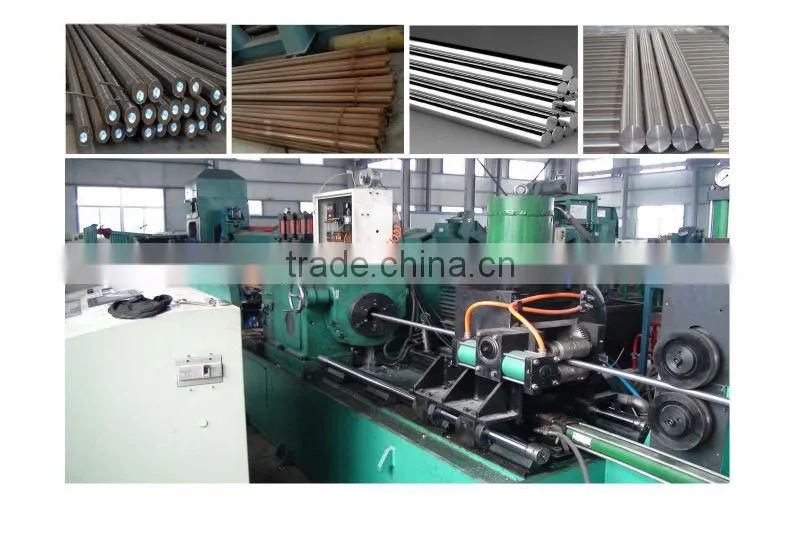

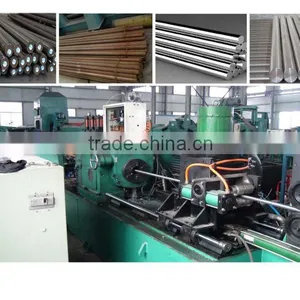

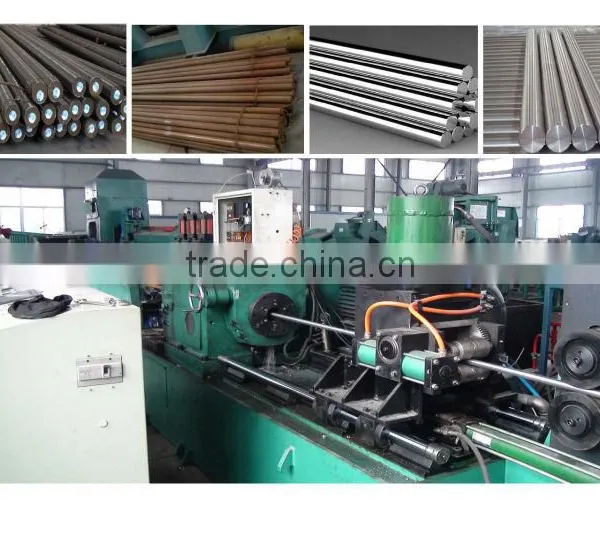

Automatic Bar Peeling Machine Bar Peeler Lathe

Name: Automatic Bar Peeling Machine Bar Peeler Lathe
Brand: haige
SKU: 104564385
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Yantai Haige Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao seaport

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter dia 80mm

Place of Origin Shandong, China

Brand Name haige

Model Number WXC80S

Voltage 380V/440V

Power(W) 95KW

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

automatic bar peeling machine

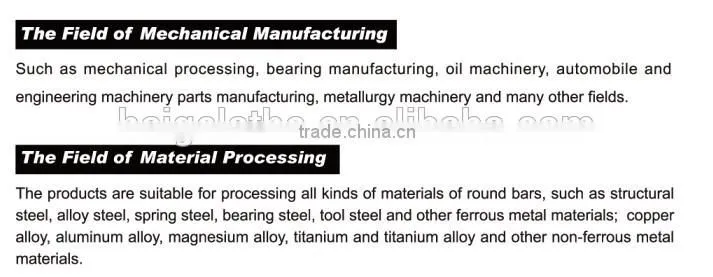

Field of Application:

Main Technical Parameters
Specification		WXC80S
Before Peeling Required	Diameter Range(mm)	Φ20~Φ80
	Raw Material Length(mm)	≥2200
	Yield Strength σb (Mpa)	≤1100
	Surface Hardness	≤HB320
	Original Curvature (mm/m)	≤1.50
	Diameter Tolerance	According to GB 702-2004 second group
	Roundness(mm)	≤50% of the diameter tolerance
	Surface Roughness(Ra)	≤25~50μm
After Peeling	Diameter Range	Φ19.5~Φ77.5
	Diameter Cutting Depth(mm)	0.5~2.5
	Diameter Tolerance	≤IT9
	Surface Roughness(Ra)	≤6.3μm
	Roundness(mm)	≤0.03
Feeding Speed(m/min)		1.0~12.0
Cutter Head Rotational Speed(rpm)		430~1200(Four Poles)
Main Machine Motor Power(kw)		75
Main Machine Outline Dimensions(m)		3.5 X 3.5 X 2.4
Main Machine Weight (t)		8.5
Total Capacity(kw)		95
