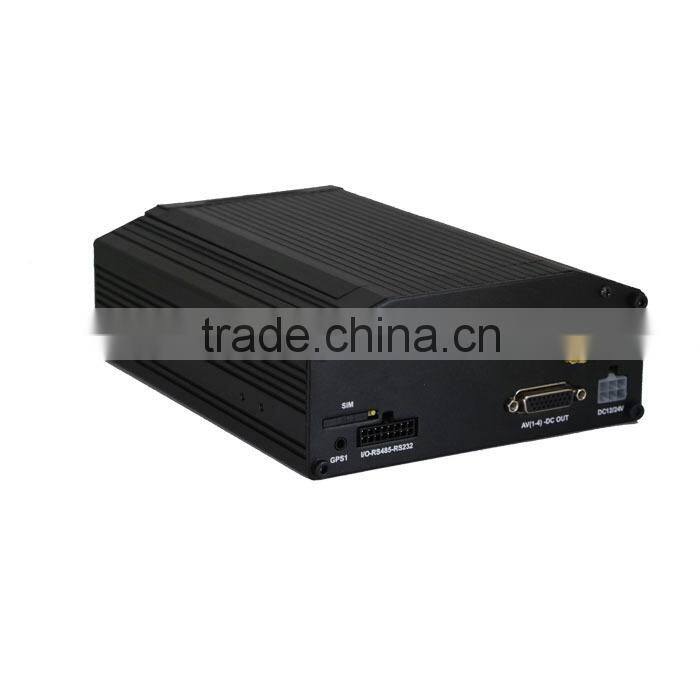

Bus DVR Type Support Max 4TB HDD WiFi 3G GPS G-sensor Optional Aluminum Housing 4CH 8CH Mobile Bus DVR
| Main processor | Hi3520D | |
| Operating system | Embedded LINUX operating system | |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
| user interface | support 16-bit true color graphical menu interface and mouse operation | |
| preview screen | 1/4 | 1/4/8 |
| video standards | PAL(625line,50f/s);NTSC(525line,60f/s) | |
| video compression | H.264(Main Profile) | |
| display quality | Monitor:D1 | |
| play quality | 960H/D1/Half-D1/CIF/QCIF | D1/Half-D1/CIF/QCIF |
| encode capacity | 4ch 960H real-time | 8ch D1 real-time |
| decode capacity | 1ch 960H real-time | 1ch D1 real-time |
| motion detect | Zones: 392(22*18)detection zones per window, multi-level sensitivity | |
| audio compression | G.711A | |
| bidirectional talk | supported | |
| record mode | manual>alarm>motion detection>timing | |
| local playback | Any channel playback simultaneously(1-4ch) | |
| search mode | Time/calendar/event/channel search | |
| space occupation |
video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel; audio:691.2M/ day*channel |
|
| record storage | HDD, network | |
| backup mode | Network backup, USB HDD,USB writer, U disk | |
| video input | 4ch | 8ch |
| video output | 1ch RCA (1.0Vp-p,75Ω),1ch for cable | |
| audio input | 4ch | 8ch |
| audio output | 1ch (200-3000mV,5K) | |
| alarm input | 4ch(multiplexing vehicle signal) | |
| alarm output | 2ch | |
| RJ45 interface | no | |
| RS485, RS232 | One RS485,one RS232 | |
| USB | One USB | |
| HDD | One SATA port,max.4T | |
| GPIO signal |
Support vehicle name,speed,turn light,vehicle door,brake, Steering Information and other signals input; support vehicle information OSD overlay,storage etc. |
|
|
GPS Module/ external GPS /BDS(optional) |
support GPS data overlay,timing etc. | |
| WIFI module(optional) | support RT3070 series module, support auto registration and upload | |
| 3G module(optional) |
Support EVDO,WCDMA,TD-SCDMA,support auto registration and upload;perfect narrowband transmission strategy, ensuring 3G network media transports steadily and fluently. |
|
| G-Sensor(optional) | supported | |
| others | support delay boot up/shut down | |
| Exclusive player | Support google map, showing vehicle running track and data. | |
| Platform |
Support auto registration,no need of port Mapping,getting rid of 3G access problem. Support google map, showing vehicle running track and data |
|
| SDK | Free SDK for second development | |
| Power supply | Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge | |
| External power supply |
Support 8* 12V controllable power supply for external camera, exclusive 12V and 5V output |
|
| Power consumption | <10W(HDD without) | |
| Working temperature | 0℃-+55℃ | |
| Working humidity | 10%-90% | |
| Atmospheric pressure | 86kpa-106kpa | |
