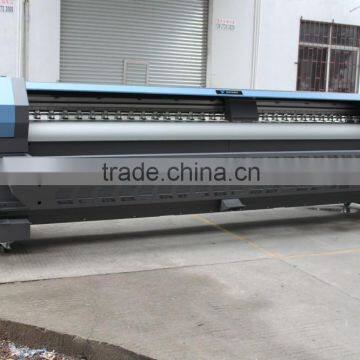

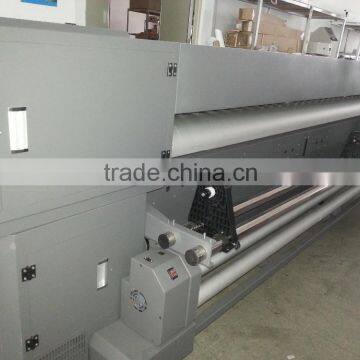

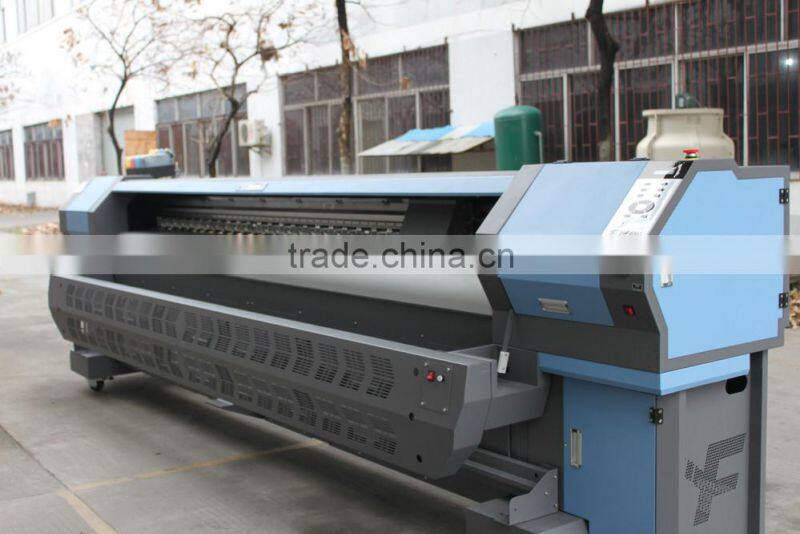

3.2 uv roll to roll digital printer with double DX5 head, uv roller digital printing machine

Model

YF-1700S

YF-2000D

YF-3200D

Resolution

Up to 1440dpi Visual Resolution

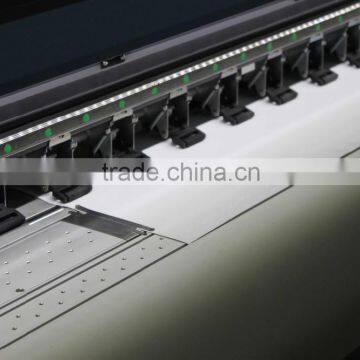

Printhead

Piezo Technology  DX5

Print head number

1 PC

2 PCS

2 PCS

Printing Width

1650mm

1850mm

3200mm

Printing Speed(sqm/h)

Production : 14

Standard: 13

High Resolution : 10

Production :  32

Standard: 26

High Resolution : 22

Production : 48

Standard: 40

High Resolution : 33

Ink Type

Flexible Led uv

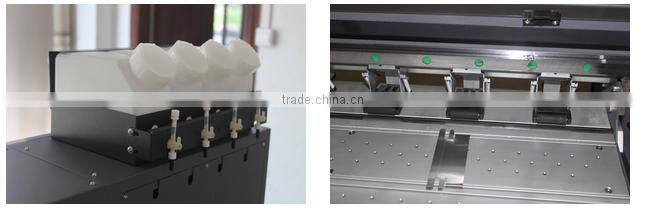

Ink Supply System

Positive ink supply system with cleaning function

Ink tank capacity: 1500ml/color

Color

Double CMYK

Media Width

1700mm

1900mm

3200mm

Media Thickness

 1.5mm (1.5mm-5mm adjustable)

Media Roll Diameter(I/D)

55mm or 76mm/ <200mm

Maximum Media Weight

100KG

100KG

150KG

Media Type

Vinyl, Flex Banner, Mesh, One Way Vision, Paper, Textile, Wall Paper, Coated Banner, Canvas, Film, Lint-free Cloth, Photo Paper etc.

Data Communication

High speed USB2.0(480m/s)

Image data format

BMP, TIFF, EPS,PDF, AI, JPEG

Rip

Ultra Print V4.4 YIFANG Version

Operation environment

Power supply: 220v(±10%), >10A,single phase

(Temperature): 18℃-35℃

(Humidity): 40%-70%

Power Consumption

700W

700W

1200W

Machine Size (L x W x H)

2.7 x 0.86 x 1.28 m

2.98 x 0.86 x 1.28 m

4.36 0.86 x 1.28 m

Packing Size (L x W x H)

2.7 x 0.76 x 0.83 m

2.95 x 0.76 x 0.83 m

4.5 x 0.95 x 1.46 m

Gross Weight / Net Weight

300KG/225KG

340KG/420KG

840KG/750KG

The exact configurations of equipment are subject to real machine

Motor

Perfect Brushless Servo Motor

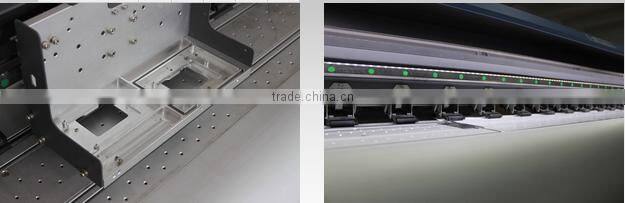

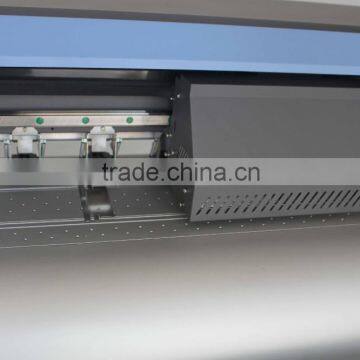

Linear Rail

Original Industrial HIWIN non-noise linear rail

Heating System

Digital Control Pre & Back Heater

Media Feeding

Yes

Yes

Yes

Drying System

Optional

Yes

Yes

IR Drying System

Optional

Optional

Optional

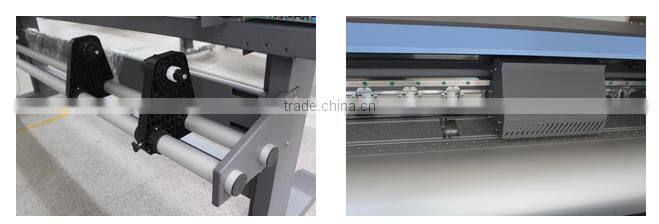

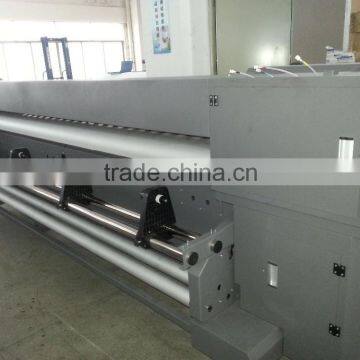

Media Handling

Roll to roll handling

Take-up System

Optional: single/double driven automatic take-up
