Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, ECO-Solvent printer
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Deju Digital Technology (Guangzhou) Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, ECO-Solvent printer
Place of Origin Guangdong, China
Brand Name Deju
Model Number DJ-3200D
Usage Paper Printer
Automatic Grade Automatic
Voltage 220v(±10%),
Gross Power 700W
Dimensions(L*W*H) 2.7 x 0.86 x 1.28 m
Weight 300KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



3.2m UV roll to roll printe with DX-5 head for wall paper printing ,wall paper printing machine



3.2m UV roll to roll printe with DX-5 head for wall paper printing ,wall paper printing machine





 High Productivity



 Support double DX5 print head

Equipped with automatic print head maintenance station

Positive ink supply system with 1500ml/color capacity ink tank

Perfect Color Presentation

Perfect brushless Servo Motor with DSP digital controlling technology

Original Industrial HIWIN non-noise linear rail

High resolution media feeding system, more accurate

Industrial vacuum table keep high resolution printing quality

 High-tech on printing control, less ink consumption

Specification:

Model

DJ-1800S

DJ-2000D

DJ-3200D

Resolution

Up to 1440dpi Visual Resolution

Printhead

Piezo Technology  DX5

Print head number

1 PC

2 PCS

2 PCS

Printing Width

1650mm

1850mm

3200mm



Printing Speed(sqm/h)

Production : 14

Standard: 13

High Resolution : 10

Production :  32

Standard: 26

High Resolution : 22

Production : 48

Standard: 40

High Resolution : 33

Ink Type

uv ink

Ink Supply System

Positive ink supply system with cleaning function

Ink tank capacity: 1500ml/color

Color

Double CMYK

Media Width

1700mm

1900mm

3200mm

Media Thickness

 1.5mm (1.5mm-5mm adjustable)

Media Roll Diameter(I/D)

55mm or 76mm/ <200mm

Maximum Media Weight

100KG

100KG

150KG

Media Type

Vinyl, Flex Banner, Mesh, One Way Vision, Paper, Textile, Wall Paper, Coated Banner, Canvas, Film, Lint-free Cloth, Photo Paper etc.

Data Communication

High speed USB2.0(480m/s)

Image data format

BMP, TIFF, EPS,PDF, AI, JPEG

Rip

Ultra Print V4.4 YIFANG Version

Operation environment

Power supply: 220v(±10%), >10A,single phase

(Temperature): 18°C-35°C

(Humidity): 40%-70%

Power Consumption

700W

700W

1200W

Machine Size (L x W x H)

2.7 x 0.86 x 1.28 m

2.98 x 0.86 x 1.28 m

4.36 0.86 x 1.28 m

Packing Size (L x W x H)

2.7 x 0.76 x 0.83 m

2.95 x 0.76 x 0.83 m

4.5 x 0.95 x 1.46 m

Gross Weight / Net Weight

300KG/225KG

340KG/420KG

840KG/750KG

 The exact configurations of equipment are subject to real machine

Motor

Perfect Brushless Servo Motor

Linear Rail

Original Industrial HIWIN non-noise linear rail

Heating System

Digital Control Pre & Back Heater

Media Feeding

Yes

Yes

Yes

Drying System

Optional

Yes

Yes

IR Drying System

Optional

Optional

Optional

Media Handling

Roll to roll handling

Take-up System

Optional: single/double driven automatic take-up

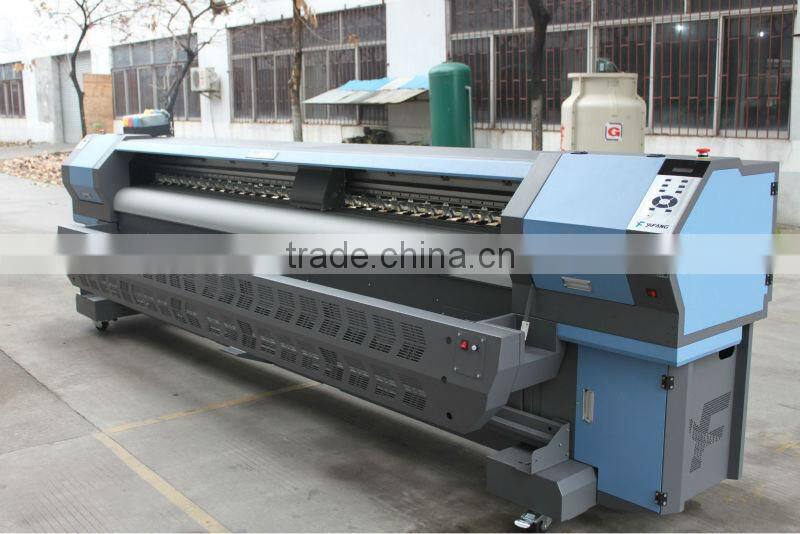

3.2m UV roll to roll printe with DX-5 head for wall paper printing ,wall paper printing machine



3.2m UV roll to roll printe with DX-5 head for wall paper printing ,wall paper printing machine

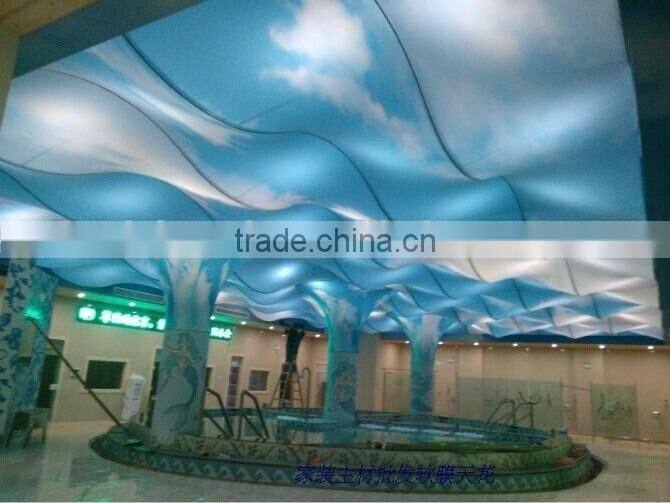

Soft film of ceilling



3.2m UV roll to roll printe with DX-5 head for wall paper printing ,wall paper printing machine







3.2m UV roll to roll printe with DX-5 head for wall paper printing ,wall paper printing machine
