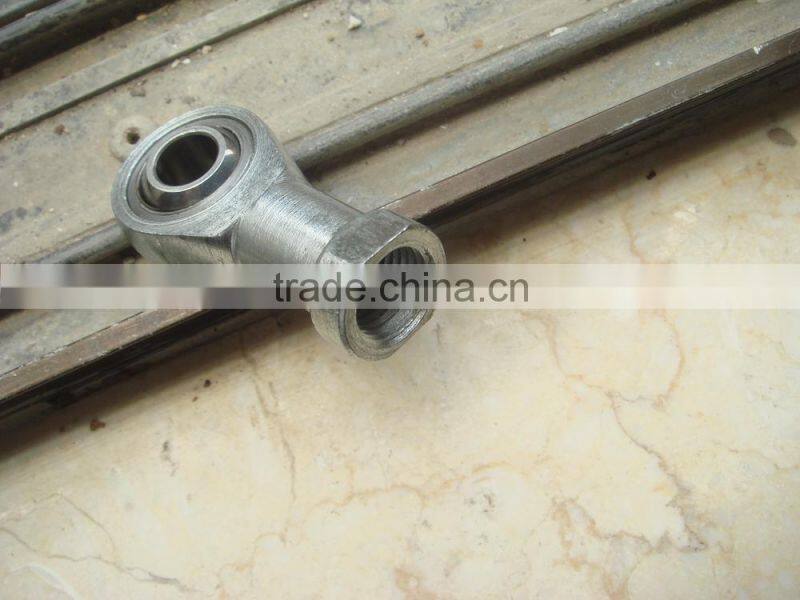

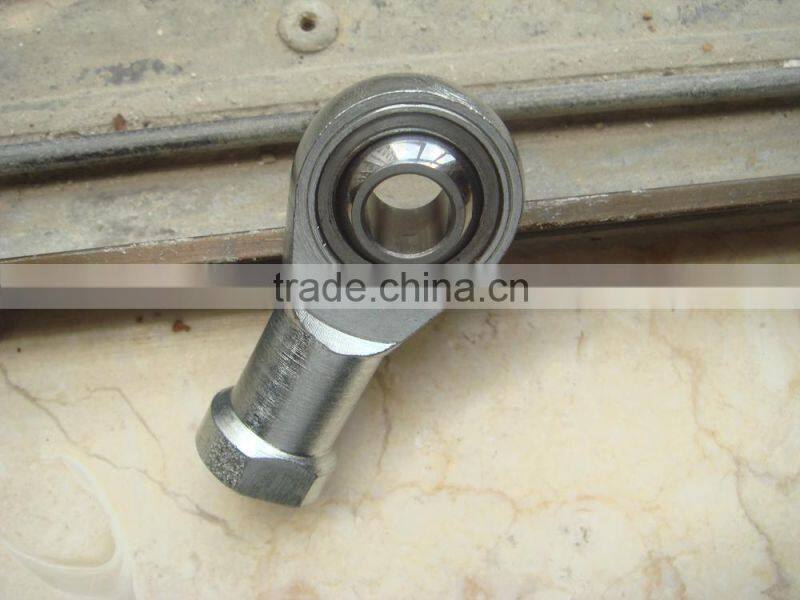

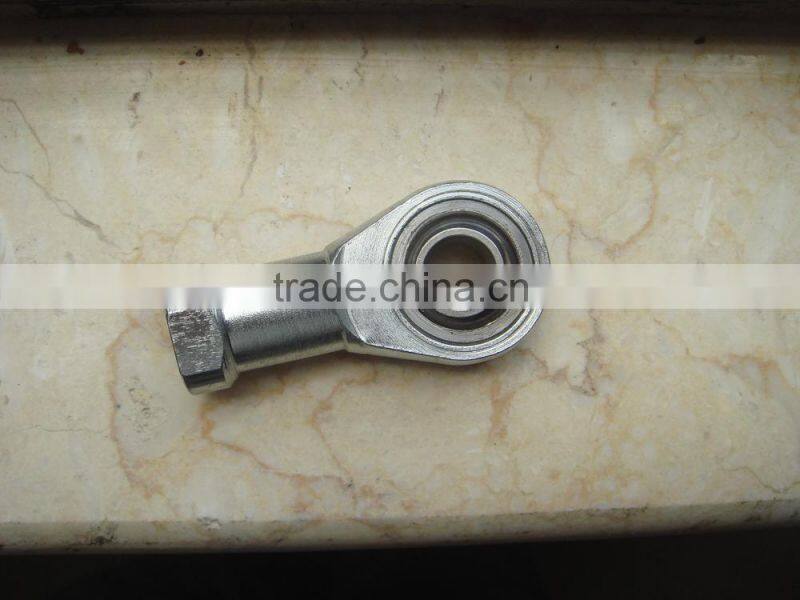

HS-10 With M4 Screw Hole Rod End Bearings

HS-10 With M4 Screw Hole Rod End Bearings photo-1
US$ 0.1 - 10 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
GB
Bore Size:
10, 30
Model Number:
HS-10
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name GB
Bore Size 10, 30
Model Number HS-10
Place of Origin China
Precision Rating P0,P6,P5,P4



Product Description

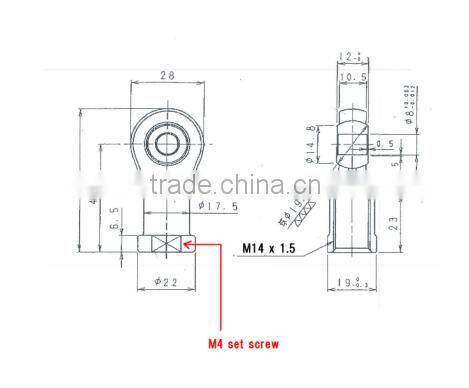

  HS-10 with M4 screw hole Rod End Bearings





HS-10 with M4 screw hole Rod End BearingsHS-10 with M4 screw hole Rod End BearingsHS-10 with M4 screw hole Rod End Bearings

We are the professional Rod End,Rod End Bearing manufacturer in China. We can produce Rod End,Rod End Bearing to your requirements. if you want get more types of Rod End,Rod End Bearing please contact us!

Bearing
number
Dimensions mm (KN)
Load ratings

C1 d B d2
maX
d3 h1 l3
min
14
maX
l5
maX
d5
maX
S Dynamic Static
PHS5 6 5 8 16 M5 27 14 35 4 11 9 3.3 4.1 13
PHS6 60.75 6 9 18 M6 30 14 39 5 13 11 4.3 5.3 13
PHS8 9 8 12 22 M8 36 17 47 5 16 14 6.8 8.5 14
PHS10 10.5 10 14 26 M10 43 21 56 6.5 19 17 10 11 14
PHS12 12 12 16 30 M12 50 24 65 6.5 22 19 13 14 13
PHS14 13.5 14 19 34 M14 57 27 74 8 25 22 17 20 16
PHS16 15 16 21 38 M16 64 33 83 8 27 22 21 25 15
PHS18 16.5 18 23 42 M18X1.5 71 36 92 10 31 27 26 30 15
PHS20 18 20 25 46 M20X1.5 77 40 100 10 34 30 31 35 15
PHS22 20 22 28 50 M22X1.5 84 43 109 12 37 32 38 43 15
PHS25 22 25 31 60 M24X2 94 48 124 12 42 36 47 65 15
PHS28 25 28 35 66 M27X2 103 53 136 12 46 41 59 77 15
PHS30 25 30 37 70 M30X2 110 56 145 15 50 41 63 86 17



Bearing
number
Dimensions mm (KN)
Load ratings
a¡ã
¡Ö
d B r1 c1 d1 d2 d3 h I1 I2 Dynamic Static
POS5 6 8 0.3 6 7.7 16 M5 33 20 41 3.3 3.9 13
POS6 60.75 9 0.3 6075 9 18 M6 36 22 45 4.3 5.3 13
POS8 9 12 0.3 9 0.4 22 M8 42 25 53 6.8 8.5 14
POS10 10.5 14 0.6 10.5 12.9 26 M10 48 29 61 10 11 14
POS12 12 16 0.6 12 15.4 30 M12 54 33 69 13 14 13
POS14 13.5 19 0.6 13.5 16.9 34 M14 60 36 77 17 20 16
POS16 15 21 0.6 15 19.4 38 M16 66 40 85 21 25 15
POS18 16.5 23 0.6 16.5 21.9 42 M18X1.5 72 44 93 26 30 15
POS20 18 25 0.6 18 24.4 46 M20X1.5 78 47 101 31 35 15
POS22 20 28 0.6 20 25.8 50 M22X1.5 84 51 109 38 43 15
POS25 22 31 0.6 22 29.6 60 M24X2 94 57 124 47 65 15
POS28 25 35 0.6 25 32.3 66 M27X2 103 62 136 59 77 15
POS30 25 37 0.6 25 34.8 70 M30X2 110 66 145 63 86 17



IF YOU INTERESTED IN OUR PRODUCTS,WELCOME TO E-MAIL ME!





Packaging & Shipping

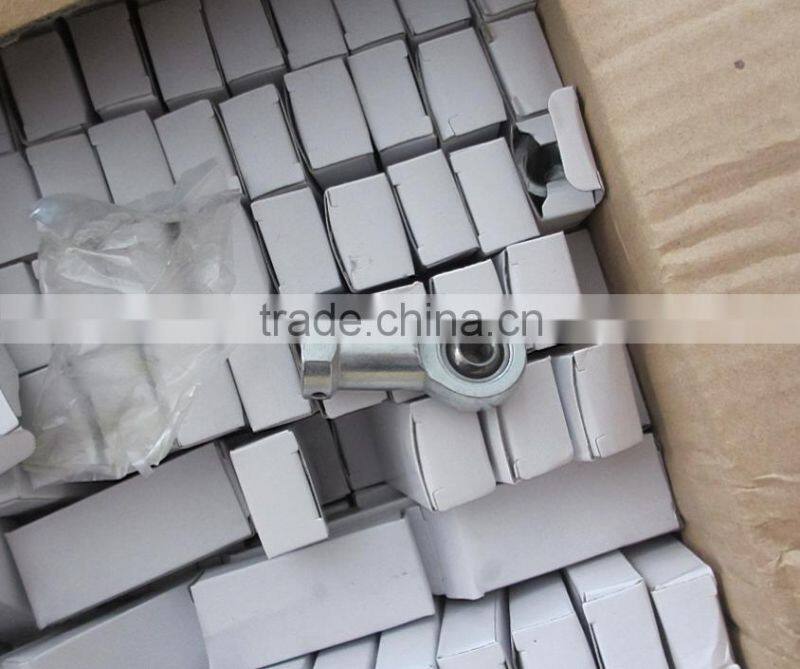

 Rod end bearing packing

1. industrial packing: 1 pieces / pp bag+white box  + master carton + pallet
2. individual packing: 1 piece / pp bag+GB box+ carton box + master carton + pallet
3. based on the customers' requirement







Our Services



Pre-sales:
1. OEM &ODM service
2.We promise to reply your inquiry in 24 hours.
3. Complete product information will be offered
4.Free sample will be sent if you need .
5. Any other reasonable requirements as per requested



During production ,we provide:
1. Schedule of production
2  .Mass production picture will offered
3. Any other reasonable requirements as per requested



Finish production:
1. Courier tracking number
2. Documents you need
3.Customer satisfy survey
4. Any other resasonable requirements as per requested







Company Information



GB BEARING is a professional manufacturer of deep groove ball bearing ,stainless steel bearings ,miniature bearing ,tapered roller bearing ,needle roller bearing ,clutch release bearing ,tensioner ,and non-standard bearing mainly produce stainless steel bearings , pillow block bearing and so on .


Our company has advanced automated production equipments ,equipped with high-precision inspection and testing equipment.With the strict production management,professional development and innovation team.we can guarantee product quality .



Our bearings have been exported to Europe,America,Southeast Asia and so on.We have obtained many customers' trust and high praise at home and abroad .We are looking forward to working with partners hand in hand and creat beautifull future!





   HS-10 with M4 screw hole Rod End BearingsHS-10 with M4 screw hole Rod End Bearings











FAQ



1.Why Choose us?

Profession and reliability.

Directly sale.

honest manufacturer.

we have a heart like fire

We are ready to serve you all the time .

 2. Can you make non-standard bearing?

GB bearing have great techincal team can provide OEM service and technical support for you

3.Can you send me the free sample?

Yes.We can supply sample if have stock, we need charge freight cost or if you have courier account for freight collect.

4. Can you serve a client with small order?  Do you have stock bearings?

 We have stock bearings for miniature bearing  6000series deep groove bearing , 30000serier taper roller bearings and inch taper roller bearing.

Yes .We enjoy to grow up together with all our clients whatever big or small order

5. How can I get more infomation ?
Feel free send us enquiry or call ,GB bearing do best at your service at 24 hours
