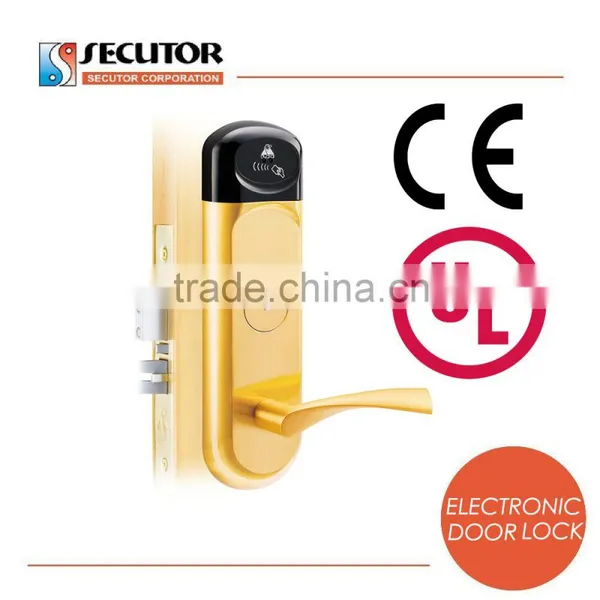

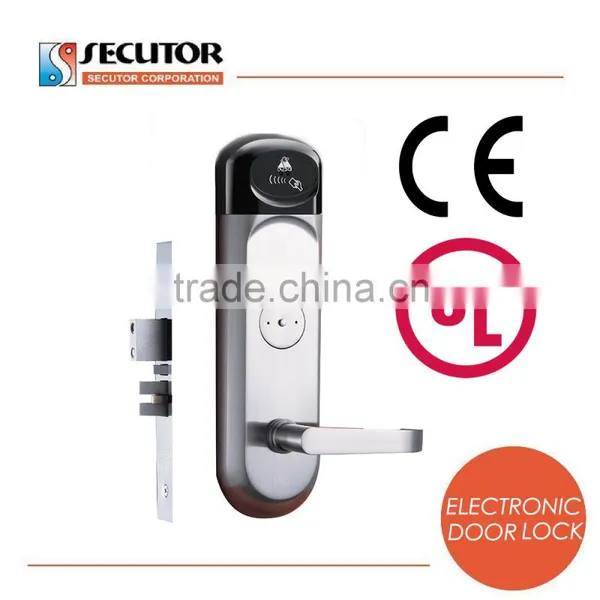

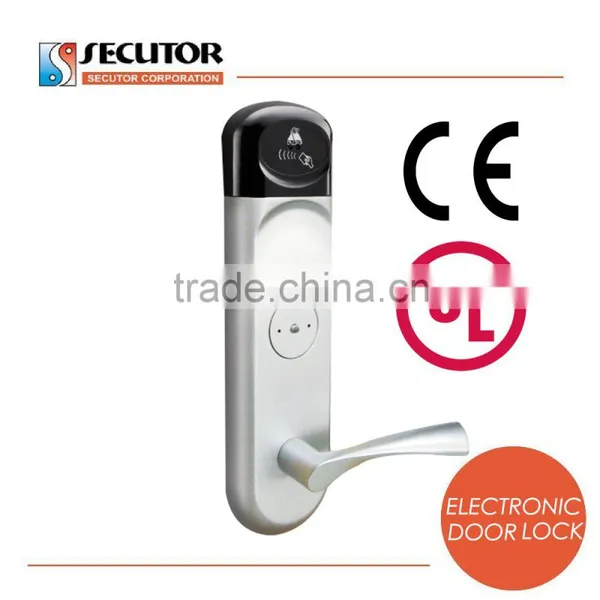

RFID Card Key Electronic Smart Hotel Door Lock System

* RFID Card Key Electronic Smart Hotel Door Lock System

Material: Body-Zinc Alloy die casting
Handle-Stainless Steel / Copper
Mortise lock- Stainless steel

* Backset: 70 mm
* For door thickness: 36-88 mm ( 36-44mm / 45-55mm / 56-66mm / 67-75mm / 76-88mm )

* Corrosion resistance: 150 hrs Salt Spray Test
* CE approved lock sensor & UL listed Mortise Lock
* Passed TUV and CNS (Taiwan Firerated 60A Certificate), 1 hr firerated.

* Reader: Proximity Type
* Indication: Green, Red LEDs & Beeper
* Card Specification: Temic Card
* Unlock duration: 6 seconds
* Power supply: 6V (1.5V *4 AA Alkaline Battery)
* Low power warning: DC 5.4V (warning for 2 weeks)
* Dimension: 283(L)*80(W)*82(H) mm
* Weight: 5 kg
* Color: Silver / Gold

* #PS30+Door Bell w/ DND (Do not disburt), MUR (Make up room) indicator
* Hidden keyhole
* Spare key - when the lock is out of batteries, use spare key to open it.
* When the door locked from inside(deadbolt), only Emergency card can unlock the door.

* Saving up to 600 records of access
* Card key type: Guest Card, Emergency Card, Master Card, Maid Card, On-line Card

- Warranty: 1 year(not including cards), except human destroy and native disaster
- Training: Overseas round trip tickets + accomodation + training fee USD100/day
- Please advice project information for further discussion( elevator, number of storiest,
  public area, front door, engineering circuit, electromagnetic contact / dry contact )

P602 Hotel Lock is designed exclusively for the hotel lock system, the system consists of P602 lock, PC-747 Proximity Encoder, PT-10 Infrared Terminal and Card Issuance Software.

Card Issuance Software

• Authorized hotel staff can only enter the card issuance system by use of a password.

• The encoders are specially designed so that other encoders cannot read or copy the hotel’s cards.

PC-747 Card Encoder

• Special designed that other encoders cannot read or copy.

• Proximity card encoder/ reader

• The encoder is specially designed so that other encoders cannot read or copy the hotel’s cards.

PT-10 Infrared Terminal

• Programs the room number in the locks memory.

• Records from the lock’s internal clock.

• Records from the lock’s memory comprehensive data of the last 600 entry events of 60 locks.

• Downloaded data includes: type of card used, card number, entry time and date, and card issuing staff’s number.

• The infrared Terminal could be connected to PC.

Battery Powered Lock

• P-602 lock uses four AA alkaline batteries.

• Door can be opened approximately 10,000 times before a battery change is needed.

• When a maid card key will not open a hotel room, this indicates the lock’s batteries are low. Maintenance will be alerted to change

   the batteries. However the guest card key will continue to open the door.

Electronic override

An emergency card key, under the manager’s control, will override a double-locked door in the event of an emergency.

Card Key Usage

Guest Card

• Allows room access.

• Activates room electricity when inserted in the room’s energy saving device.

• Allows access to the hotel’s public facilities.

• Permits guests to charge purchases at the hotel’s restaurants, snack bars, pubs, and retail shops.

• Allows parking garage access.

• Allows VIP elevator use.

• Allows a prompt guest checkout by compiling a comprehensive hotel bill quickly.

Emergency card

Allows room access even if the room is double-locked.

This card is always under the strict control of the manager or his representative.

Master card

Allows access to all rooms not double-locked.

Maid card

Allows access to specific rooms during a work shift.

On-line card

Allows the hand held infrared terminal to program room locks and read out comprehensive data of the last 100 entry events.

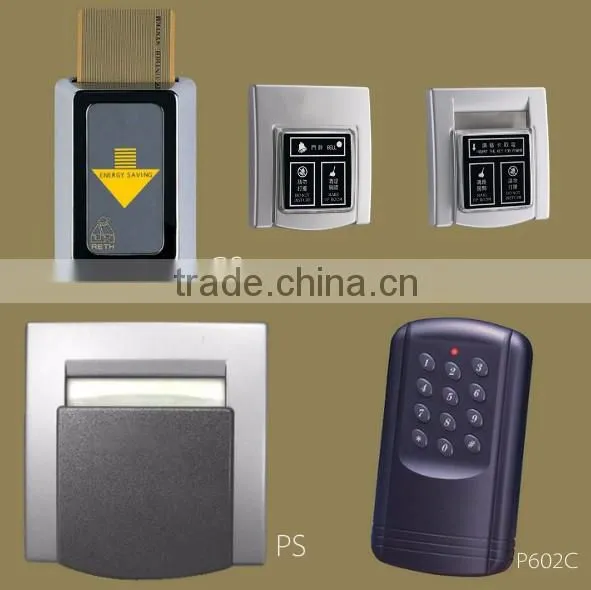

Energy Saving Device, Door Bell with touch panel, Access Control Device

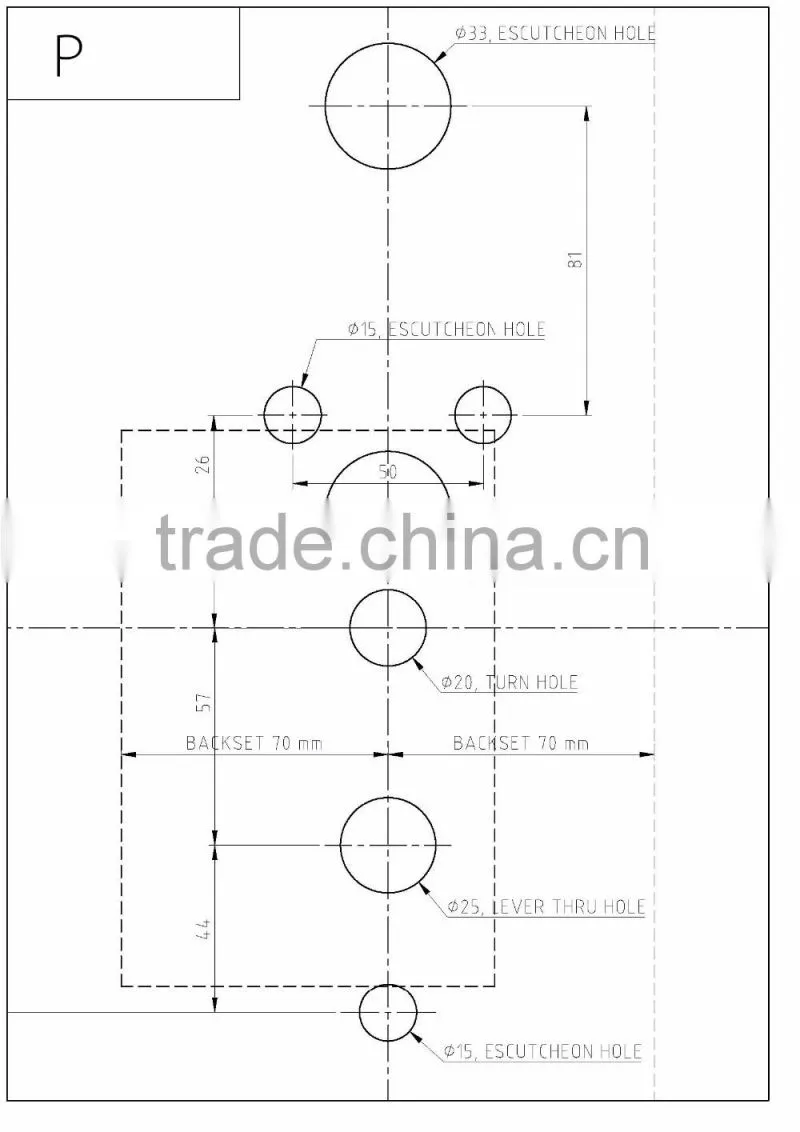

Drawing of RFID Card Key Electronic Smart Hotel Door Lock System

* Customer’s logo is available

* Quick response - We will reply your inquiry a.s.a.p.

* After-sales service - To make sure our customers are satisfied with their order

* Provide samples - Provide samples for reference

* Color box packed available

Packing of  RFID Card Key Electronic Smart Hotel Door Lock System

* 1pc/box

Shipping of  RFID Card Key Electronic Smart Hotel Door Lock System

* By sea / air / courier express. (FOB China)

* Courier express includes DHL, Fedex, TNT, UPS, EMS, SF, etc.

* Payment by T/T , L/C, Western Union, PayPal or Escrow

* We require 100% payment in advance before delivery

SECUTOR CORPORATION has been engaging in the production of security products since 1993, specializing in Profile Cylinders, Mortise Door Locks, Padlocks, Door Closers and Panic Exit Devices.
