Full set of metal bar process tools on sale

Name: Full set of metal bar process tools on sale
Brand: Haige
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao Port
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Horizontal	CNC or Not:	CNC
Automatic Grade:	Automatic	Max. Swing Diameter:	100mm reference	Place of Origin:	Shandong, China
Brand Name:	Haige	Model Number:	WXC100S	Voltage:	380V/440V
Power(W):	75kw	Dimension(LWH):	16m X 3.2m X 2.2m	Weight:	12t(for your reference)
Certification:	ISO9001	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Detailed Description

peeling description

Series WXC Centerless Lathe includes Semi-automatic hydraulic and CNC type.

The machine’s features are as follows:

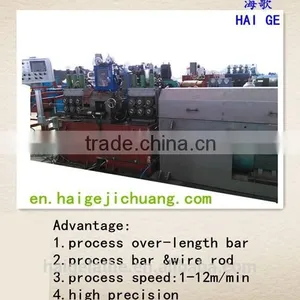

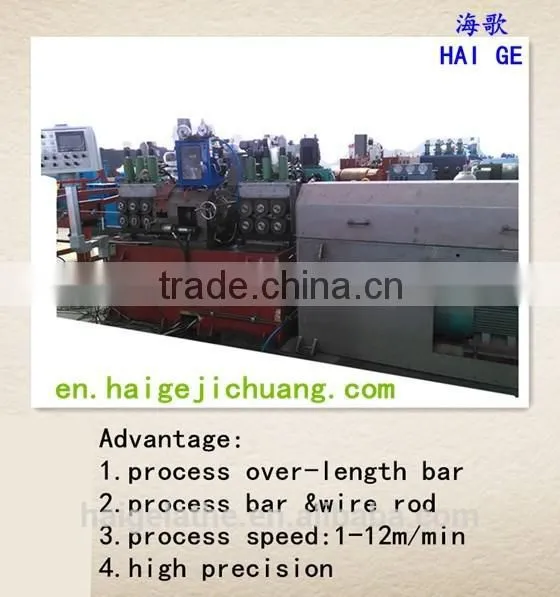

When processing over-length bar,centerless lathe has incomparable advantages.
Centerless Lathe is not only processing Bar,also Wire Rod.
Processing speed 1~12m/min,the working efficiency of centerless lathe is dozens of times of the ordinary lathe.
High Precision,after peeling,diameter tolerance can reach ≤h9,surface roughness(Ra)≤6.3μm.

Semi-automatic Hydraulic Peeling Machine

CNC Bar Peeling Machine

MAIN TECHNICAL PARAMETERS

Specification		WXC100S
RAW MATERIALS	DiameterRange(mm)	Φ25~Φ100
	Raw Material Length(mm)	≥3000
	Tensile Strength (Mpa)	≤1100
	Surface Hardness	≤HB320
	Curvature(mm/m)	≤1.50
	Diameter Tolerance	According to GB 702-2004 second group
	Roundness(mm)	≤50% of the diameter tolerance
	Surface Roughness(Ra)	≤25~50mm
FINISHED GOODS	DiameterRange	Φ24~Φ98
	Unilateral Cutting Depth (mm)	0.5~2
	Diameter Tolerance	≤h9(standard tolerance grade)
	Surface Roughness(Ra)	≤6.3μm
	Roundness(mm)	≤0.04
Feeding Cutting Speed(m/min)		0.5~5(for continuous chips and high strength and hardness should reduce the speed)
Cutter Head Rotational Speed(rpm)		240~670(Six Poles)
Host Machine Motor Power(KW)		90
Auxiliary Machine Motor Power(KW)		7.5(clamping and feeding)+7.5(Carriage)
Host Machine Outline Dimensions (LengthWidthHeight) m		4.4m X 3.0m X 2.5m
Full Set Machine Outline Dimensions (including auxiliary machine) (LengthWidthHeight) m		16m X 3.2m X 2.2m
Host Machine Weight (including auxiliary weight) (T)		13.5 ( 20.2)
Total Capacity(KW)		130
Compressed Air Source (user prepare by themselves)		0.5-0.8Mpa,1.8m³/min,0.8m³ gasholder,two-stage oil-water separator and compressed air freezing drier.

Introduction of Straightening machine

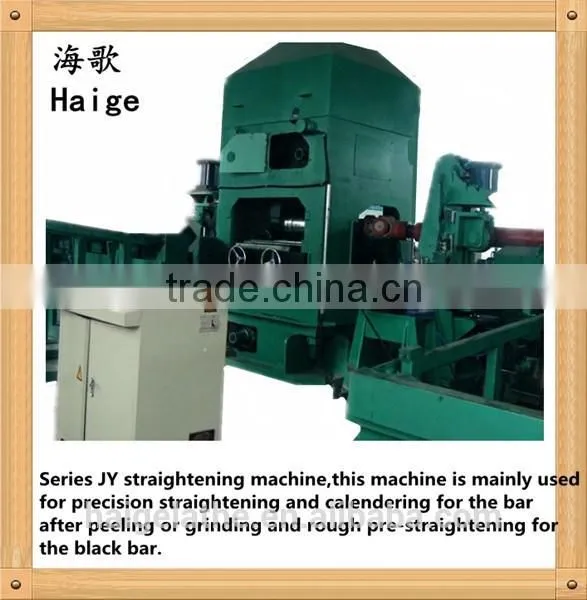

Series JY straightening machine ,this machine is mainly used for

precision straightening and calendering for the bar after peeling or grinding and rough pre-straightening for the black bar.

The machine adopts special curve between upper and lower concave and convex two straightening rolls to realize calendering and straightening at the same time.

Specification		JY100Z
Raw Material	Diameter Range(mm) (excluding drawing material)	Tensile Strength σb≤450(M pa)		Φ25≤d≤Φ100(L ≥3000)
		Tensile Strength σb≤1000(M pa)		Φ25≤d≤Φ90(L ≥3000)
	Surface Hardness	≤HB380(≤HRC42)
	Straightness(mm/m)	≤3
	Diameter Tolerance	≤h10
	Circular Degree	d≤50	≤50% of diameter tolerance
		50<d≤80	≤65% of diameter tolerance
		d>80	≤70% of diameter tolerance
	Surface Roughness(Ra)	≤3.2~6.3mm
Finished Goods	Straightness(mm/m)	≤0.40
	Diameter Tolerance	≤h9
	Surface Roughness(Ra)	≤0.8μm
Roller Quantity (Pcs)		2
Roller Diameter (mm)		Φ380
Straightening Feeding Speed(m/min)		2~12(infinitely adjustable-speed)
Host Machine Motor Power (KW)		75X2
Lifting Motor Power (KW)		4
Host Machine Outline Dimensions (LengthWidthHeight)		8.1mX3.1mX3.6m
Weight		26.2T
Total Capacity KW		170
Compressed Air Source (user prepare by themselves)		0.5~0.8MPa,1.8m3/min,two-stage oil-water separator

product application

Wire Rod Production Line

Wire Rod to Wire Rod Production Line

Processing Description

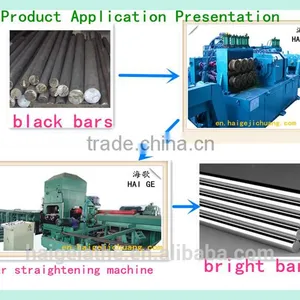

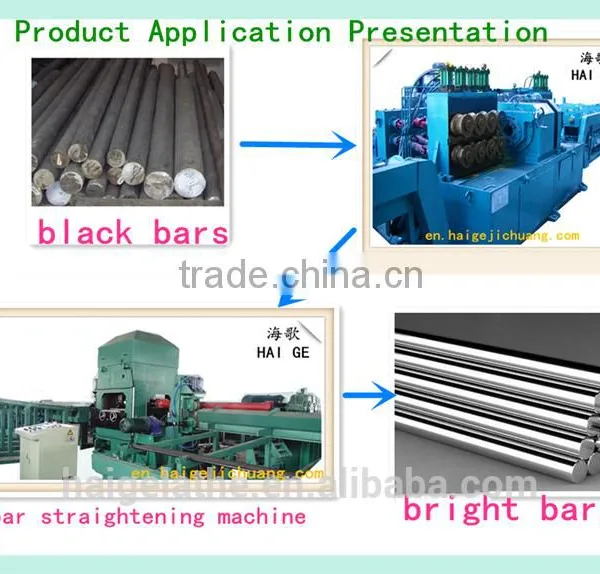

Loader+Uncoiler Machine+Centerless Lathe+Pre-bending Machine+Receiving Racks

Main Technical Parameters

Wire Rod to Bar Production Line

Processing Description

Loader+Uncoiler Machine+Centerless Lathe+Rotary Hub Straightening Machine+Pre-bending Machine+Unloader

Main Technical Parameters

Specification		KP25
Requirements before Peeling	Diameter range(mm)	Φ8-Φ25(without dead bending)
	Yield strength σ_b(Mpa)	≤900
	Surface hardness	≤HB320
	Requirement for curvature(mm/m)	peeling≤1.5 but no dead blend
	Diameter tolerance	d-2-GB/T702-2004
	Roundness	≤50% of diameter tolerance
	Surface Roughness (Ra)	≤25μm
After peeling	Dia peeling depth (mm)	0.5-1.5
	Diameter range (mm)	Φ7.5-Φ23.5
	Diameter tolerance	≤IT10
	Surface roughness(Ra)	≤6.3μm
	Roundness	≤0.03
Speed( stepless speed)		1.0-8.0m/min
Motor of uncoiler machine		15kw
Feeding motor(uncoiler machine)		2.2kw
Main motor (centerless lathe)		45kw
Feeding motor(centerless lathe)		4kw×2

Company & Factory

Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.

The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m². There are one hundred and forty staffs working in the factory. The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.

Overseas service is available!

A. Warranty period: 1 year,except for fast-wearing parts

B. Reply your enquiry in 24 working hours

C.Customized design is available. OEM& ODM are welcomed.

D. If necessary,we can dispatch our well-trained and professional engineers to our customers' factory to help them install and debug the equipment.

E.Special discount can be provided to our distributor.
