8 feet digital printer UV flatbed roll to roll printer
Technical Specifications
Model |
FR2512 |
|
Color |
C, M, Y, K, Lc, Lm, White, Varnish |
|
Print head |
Konica 512/1024, Ricoh Gen4/Gen5 |
|
Number of Print head |
Up to 12 piece konica print head, Up to 8piece Ricoh head |
|
Printing Speed |
Up to 40m2/h(8 Print heads double 4 color) |
|
Max.material thickness |
Rigid materials<=120mm, Flexible media<=1mm |
|
Drying system |
UV mercury lamp |
|
Air draft |
4 air draft divisions adapt to the max working area dimension |
|
Media |
Glass, PMMA, acrylic, ceramic, Metal, Paper, Wood, Leather,Flex banner, Wallpaper, Car sticker, Soft film, PVC,etc |
|
Printing size |
Maximum Printing Area:
|
Rigid materials: 2680mm(width)*1220mm(depth) |
Flexible Media width:2500mm | ||
|
Maximum Material Size:
|
Rigid materials: 2700mm(width)*1330mm(depth) |
|
Flexible Media width:2500mm | ||
Ink |
UV Curing ink |
|
Outdoor life |
At least 3 years outdoor/10 years indoor |
|
Ink capacity |
2.5L drums, automatic ink control, non-stop and ink |
|
Ink supply system |
Auto negative ink supply |
|
Control system |
Windows 2000 workstation/ Windows XP/ Vista/ Windows 7 32bit RAM>=6G |
|
Power Supply |
6.5KW; AC, 50HZ/60HZ, 220V(+=10%)>15A |
|
Image format |
Tiff, JPEG, EPS |
|
RIP software |
Photoprint 10/Colorgate |
|
Dimensions (L x W x H) |
4830 x 2470 x 1580mm |
|
Package dimensions (L x W x H) |
5400*2200*1650mm & 3450*800*1050mm |
|
Net weigh t& Gross weight |
1550kg & 2280kg |
|
Safety certification |
CE certification |
|
Features

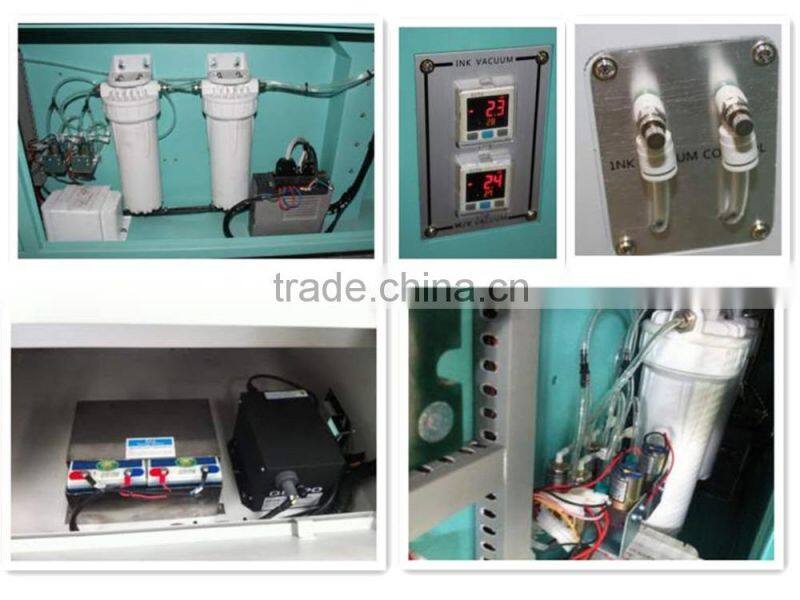

1.Ink system
1).Ink alarm system 2).White ink circulation 3).heating control for ink subtank
2. UV lamp system

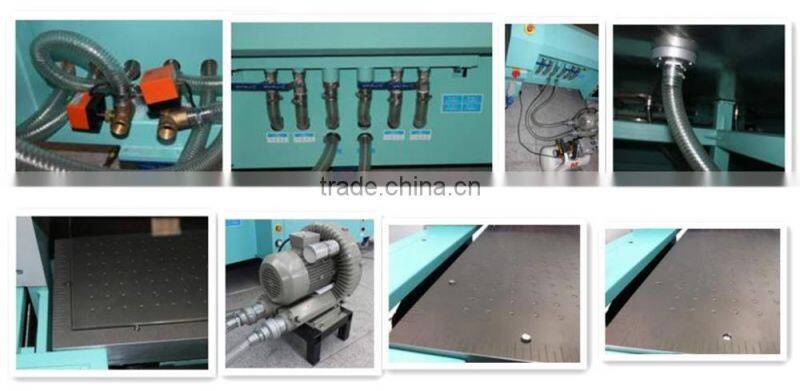

3.Flatbed
1.Location pins mounted on table to load regular or irregular materials in right place, which help ensure same print starting point in X and Y direction for batch jobs.
2.4 stage vacuum control system that can print on different width media, the powerful vacuum

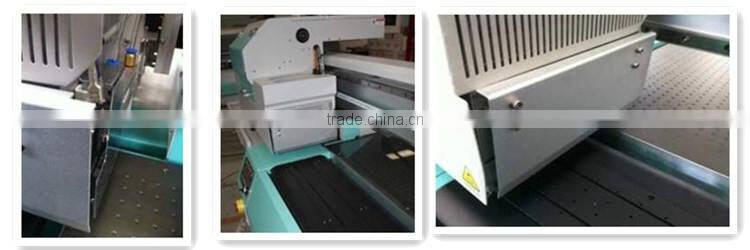

4.Carriage
1.Advanced print head anti-collision system
2.Adjust height of carriage by control panel, manual, software

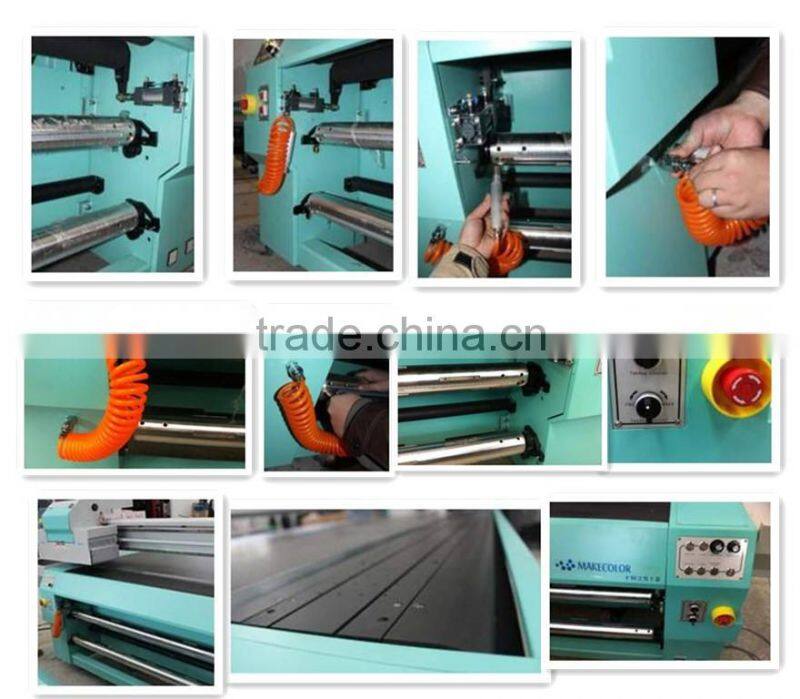

5.Roller system

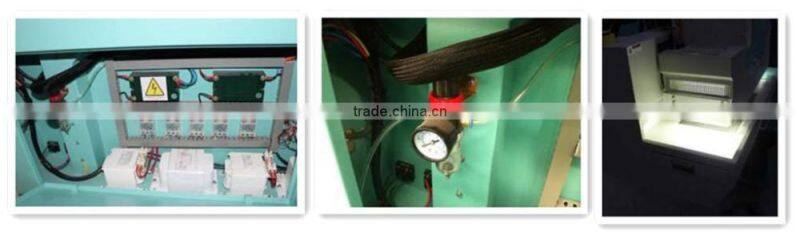

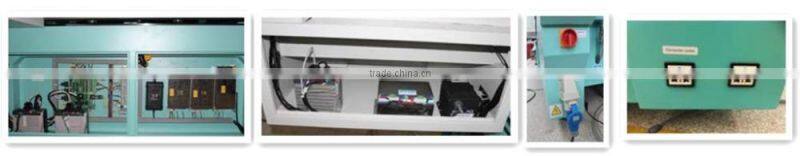

6. Electric System

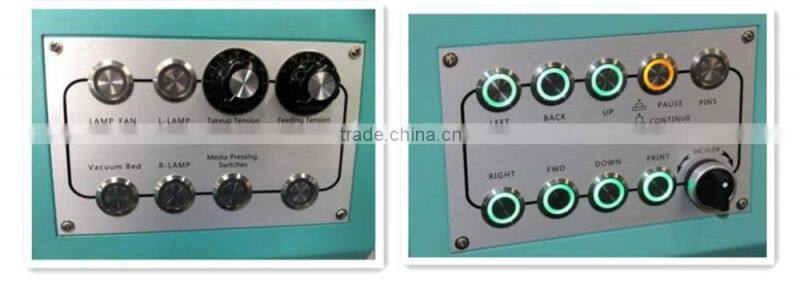

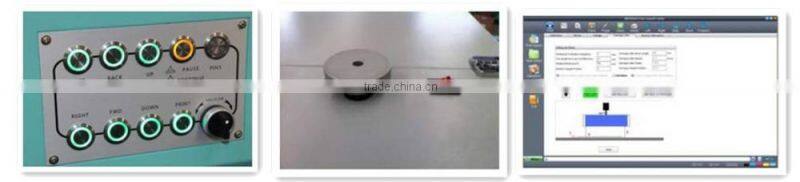

7.Control Panel

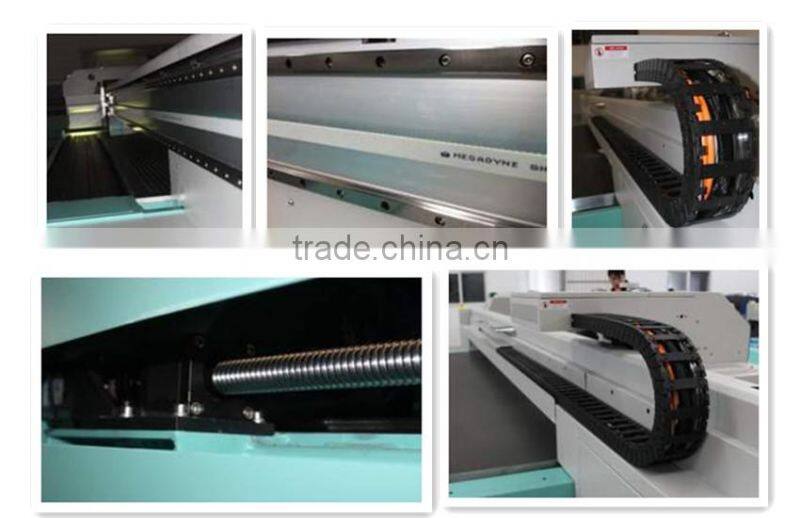

8.Movement System
1.two servo motor for beam improving printing accuracy;
2.IGUS towline cable from Germany;
3.MEGADYNE synchronous belt from Italy.
9.Negative Pressure
negative pressure can be worked with power supply when machine power off.

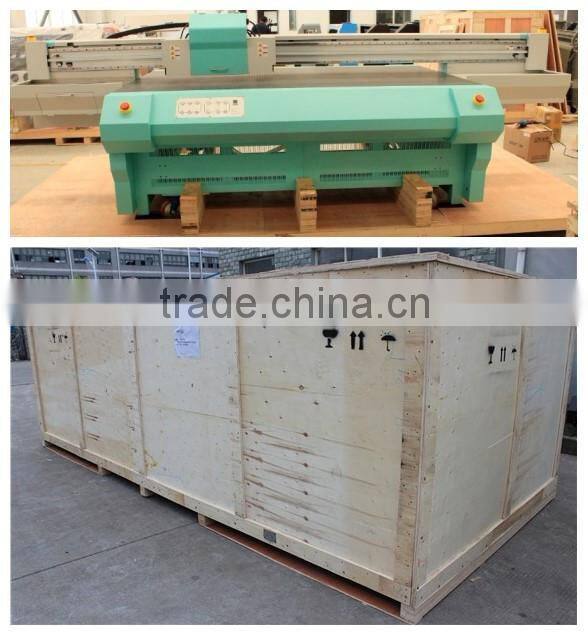

Packing and shipping
Packing:Wooden package .
Deliver time :within 15 working days
Shipping:helped by our long - term cooperation relationship forwarder ,goods will be sent by ship or by air .
Our service
1.We provide whole life warranty and online technical support for our printer .
2.When some technical problems,please send detail description,photos or vedio,then our technician will give the resolution accordingly.
3.There are complete English user manuals and inistall video to guide you easily install , operate and maintain the printer. It’s clear and easy to understand.
Application
Can be applied to all kinds of materials, the rigid materials include glass,ceramics,aluminum sheets,wood,billboards,acrylic,KT boards,plexiglass,foam boards,corrugating medium paper and so on.the flexible materials includes wallpapers,shiny film,canvas,carpets,leather,paper,pvc,etc
Sample
For more information ,welcome to contact me
vivi
Skype:dejutech1
WeChat :zhx33360
QQ:1807032716
Mobile phone/whatsapp:+8615920332343
