FR2512
Overview

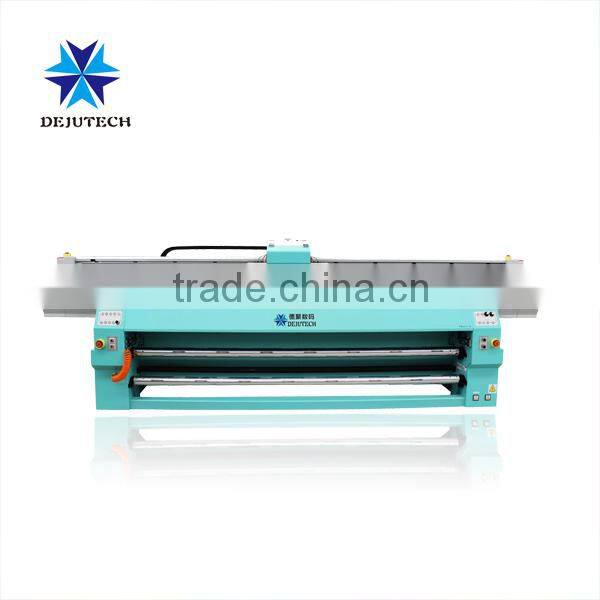

UVFR2512 UV Hybrid printer is one type of professional wide format ink-jet UV flat board printer.This printer is designed for both flat materials and roll materials in high quality and wide formats. The internationally advanced print control system, need-oriented intelligent control system, highly efficient setting for repetitive printing and accurate positioning function has contributed to the distinguished quality of the printer.
feature
1.Mechanic Superiority:dual lead screw & dual guider broadside scanning mechanical structure,industry leading machineryprecision;Table loading capacity of 45KG/sqm,automatic take-off enables the printing on different sizes of media.
2.The printing platform's vacuum absorption function can also convert suction into reverse air flow, thus creating a layer of air cushion between media and the working platform. This function makes it rather convenient to take down a heavy printed material in large format
3.Unique media alignment bar allowing a fast and easy media loading.
4.All-steel body, extruded aluminum table, double straight-line Guides.
5.Key parts from the most famous brands, such as IGUS towline cable from Germany, MEGADYNE synchronous belt from Italy, DELTA serve motor from Taiwan……
6.UPS inside keep negtive pressure more than 4 days when the power is turn off.
7.Automatic altimeter system uses infrared-sensitive probe,auto-detection to adjust the height,and precise positioning.This system replaces of traditional manual lift system and it's easy to operate.
8.Roll-to-Roll upgrade kit supports flexible media up to 2530mm wide, with a roll diameter 250mm, and up to 360kg in weight.
9.MAKECOLOR UVFR2512 UV Hybrid printer usese environmentally protective UV curing ink (a new trend in the future) which does not contain VOC (volatile organic compound).
10.The usage of UV curing ink (which can be directly typed on various materials) enables this printer to completely replace spray equipment for outdoor advertisement and indoor photography. Besides, this printer has a wide range of applications in the field of indoor and family decoration (such as wallpaper, public display board, etc.)
Technical parameters:
Model |
FR2512 |
|
Color |
C M Y K Lc Lm White Varnish (4C/5C/6C/7C/8C optional) |
|
Printhead |
KM512/KM1024/PQ512 |
|
Top Resolution |
UP TO 1440dpi |
|
Resolution |
1440dpi |
|
Printing Speed |
UP TO 48m2/h(8 PCS KM1024 heads double 4 color) |
|
Media |
Rigid & flexible media; paper, PVC, PE, PEtg, SAV, acrylic, polycarbonate, foamboard & composite boards, MDF, MDO, aluminum, wood, glass, corrugated fibre board & more |
|
Size of Material |
Maximum Printing Area: Panel:2.68mx 1.22m Maximum Material Size: Panel:2.70mx 1.33m |
Maximum Printing Area: flexible media(width):2.5M Maximum Material Size: flexible media(width):2.53M |
Thickness of Material |
Panel:≤ 120 mm |
|
Weight of Material |
Panel:≤ 45 kg/m2 |
|
Image format |
Tiff,Jpeg,Postscript3,EPS,PDF,AI and so on |
|
Ink |
UV Curing ink/LED Curing ink |
|
Ink Capacity |
2.5L drums, automatic ink control, non-stop and ink |
|
Power Supply |
AC 220V,6.5KW |
|
Printing software |
Photoprint 10 / Seeget |
|
Optional |
1. Air Compressor 2.Computer 3.UV LED lamp |
|
Dimensions (W x D x H) |
4.83 x 2.15 x 1.5 m |
|
Net & Gross |
1550kg & 1900kg |
|
Package dimensions |
4.98 x 2.2 x 1.67m |
|
Minimum Work Area |
6.8 x 5.15 x 2.60 m |
|
Operation environment |
Temperature: 15-30°C(59-86°F) Humidity: 40-80% RH (non-condensing) Operating Noise ≤80dB |
|
Safety Certification |
CE Certification
|
|
Application:
Applying to a variety of materials,like rigid media such as glass,ceramic tile, aluminum sheet, wooden board, billboard, acryl sheet, KT board, plexiglass, foamboard and corrugated paper,flexible materials including wall paper,glistening film, canvas, carpet, leather, paper, PVC ect.
leather sofa
leather bags
acrylic
