uv hybrid printer for glass, ceramic, acrylic, leather, film, pvc, vinyl, wallpaper

Name: uv hybrid printer for glass, ceramic, acrylic, leather, film, pvc, vinyl, wallpaper
Brand: Deju
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port GuangZhou
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Plate Type:	Flatbed Printer	Place of Origin:	Shanghai, China
Brand Name:	Deju	Model Number:	FR2512	Usage:	Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Other
Automatic Grade:	Automatic	Voltage:	220v	Gross Power:	6.5KW
Dimensions(LWH):	4.83 x 2.47 x 1.58m	Weight:	1550Kg	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

UV flatbed and roll to roll printer

Technical Specifications

Model	FR2512
Color	C, M, Y, K, Lc, Lm, White, Varnish
Print head	Konica 512/1024, Ricoh Gen4/Gen5
Number of Print head	Up to 12 piece konica print head, Up to 8piece Ricoh head
Printing Speed	Up to 40m2/h(8 Print heads double 4 color)
Max.material thickness	Rigid materials<=120mm, Flexible media<=1mm
Drying system	UV mercury lamp
Air draft	4 air draft divisions adapt to the max working area dimension
Media	Glass, PMMA, acrylic, ceramic, Metal, Paper, Wood, Leather,Flex banner, Wallpaper, Car sticker, Soft film, PVC,etc
Printing size	Maximum Printing Area:	Rigid materials: 2680mm(width)*1220mm(depth)
		Flexible Media width:2500mm
	Maximum Material Size:	Rigid materials: 2700mm(width)*1330mm(depth)
		Flexible Media width:2500mm
Ink	UV Curing ink
Outdoor life	At least 3 years outdoor/10 years indoor
Ink capacity	2.5L drums, automatic ink control, non-stop and ink
Ink supply system	Auto negative ink supply
Control system	Windows 2000 workstation/ Windows XP/ Vista/ Windows 7 32bit RAM>=6G
Power Supply	6.5KW; AC, 50HZ/60HZ, 220V(+=10%)>15A
Image format	Tiff, JPEG, EPS
RIP software	Photoprint 10/Colorgate
Dimensions (L x W x H)	4830 x 2470 x 1580mm
Package dimensions (L x W x H)	540022001650mm & 34508001050mm
Net weigh t& Gross weight	1550kg & 2280kg
Safety certification	CE certification

Features

1.Ink system

1).Ink alarm system 2).White ink circulation 3).heating control for ink subtank

2. UV lamp system

3.Flatbed

1.Location pins mounted on table to load regular or irregular materials in right place, which help ensure same print starting point in X and Y direction for batch jobs.

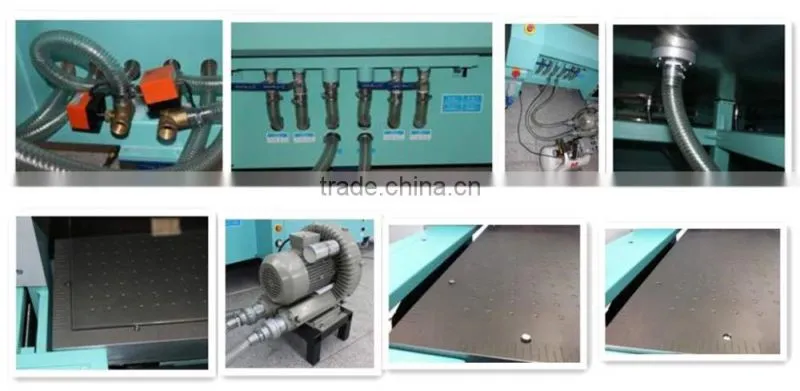

2.4 stage vacuum control system that can print on different width media, the powerful vacuum

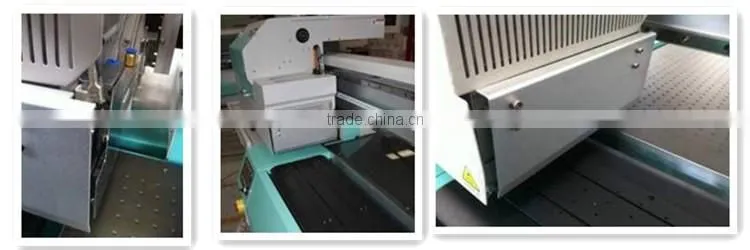

4.Carriage

1.Advanced print head anti-collision system

2.Adjust height of carriage by control panel, manual, software

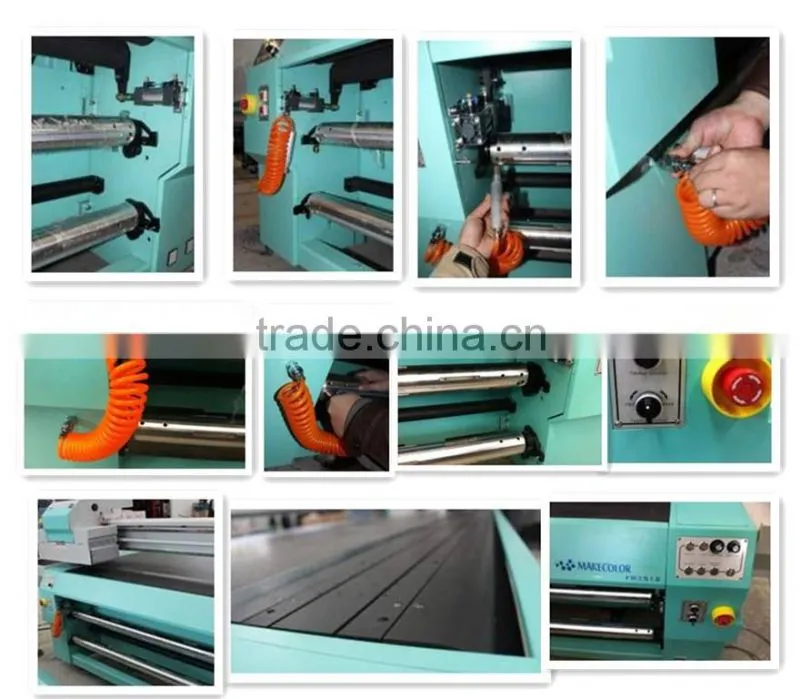

5.Roller system

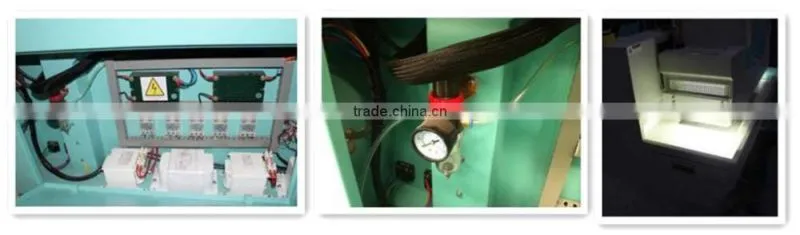

6. Electric System

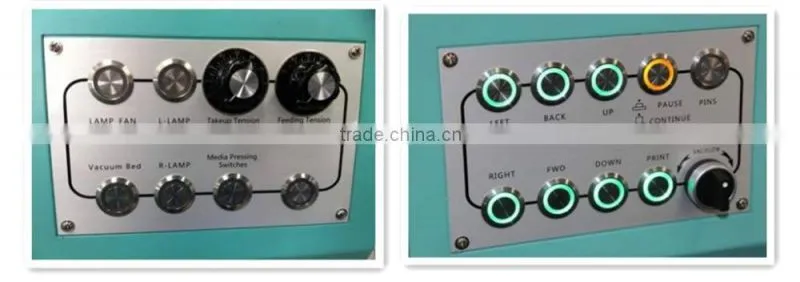

7.Control Panel

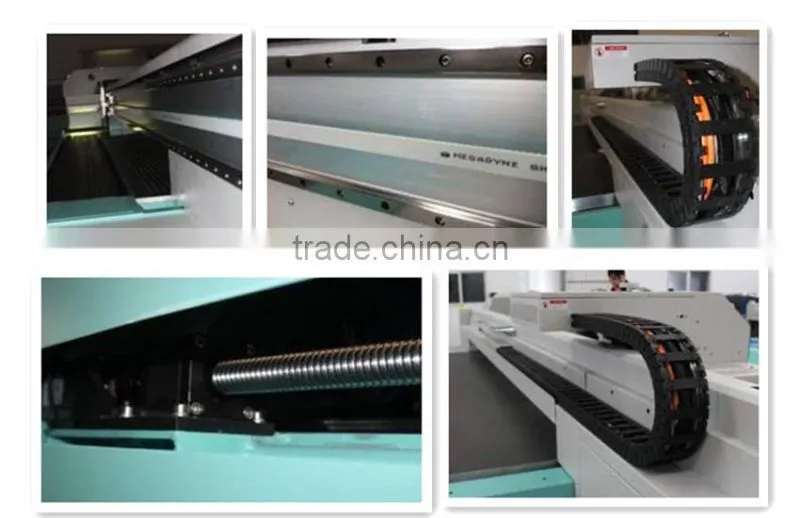

8.Movement System

1.two servo motor for beam improving printing accuracy;

2.IGUS towline cable from Germany;

3.MEGADYNE synchronous belt from Italy.

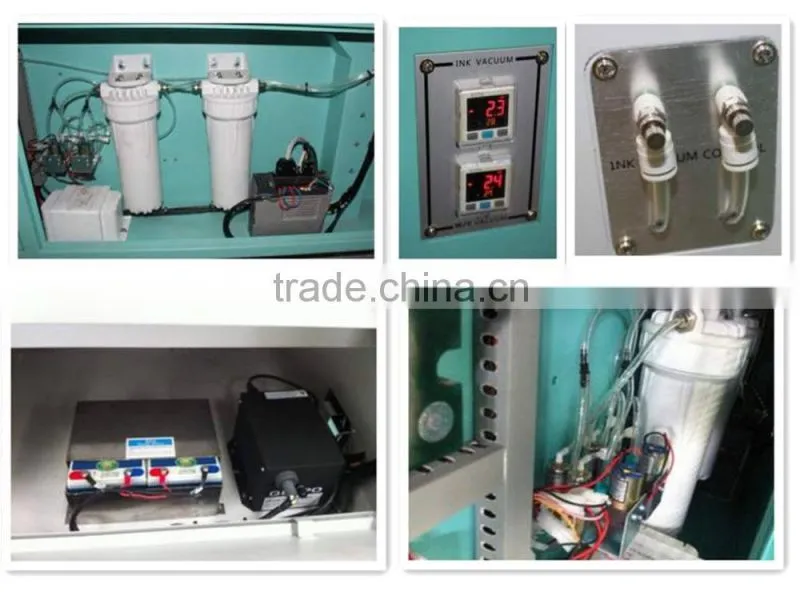

9.Negative Pressure

negative pressure can be worked with power supply when machine power off.

Sample
