High Quality Revolving drum granulating machine Manufacturer

Specifications

High Quality Revolving drum granulating machine Manufacturer 1.Granulator
2.NPK,organic fertilizer
3.factory
4.SGS,ISO

     High Quality Revolving drum granulating machine Manufacturer

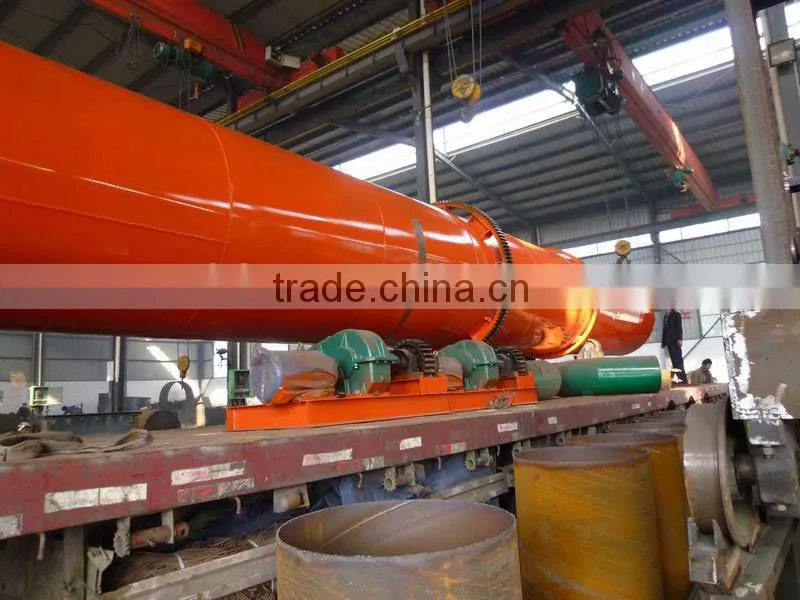

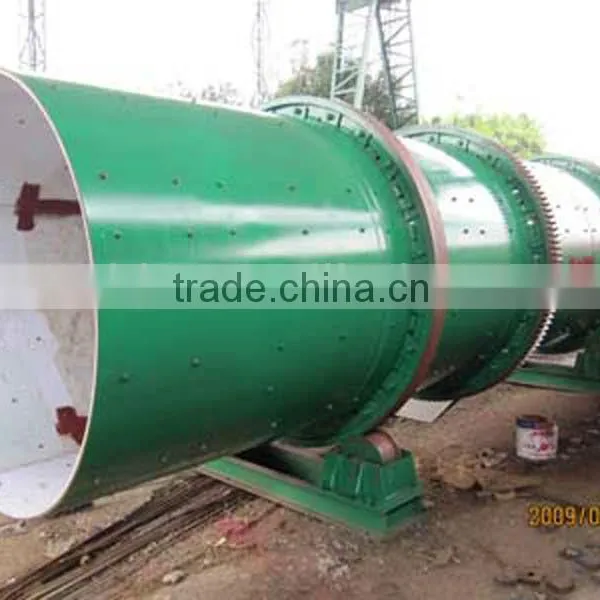

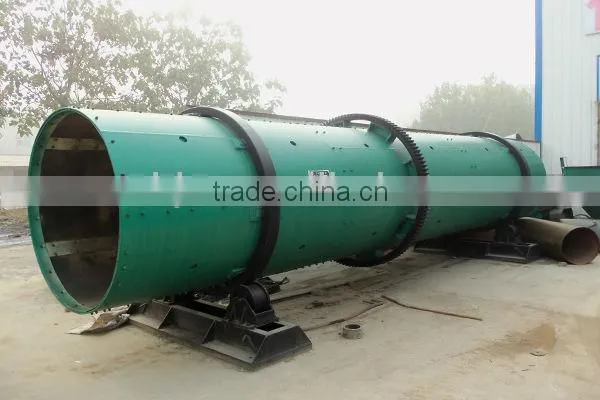

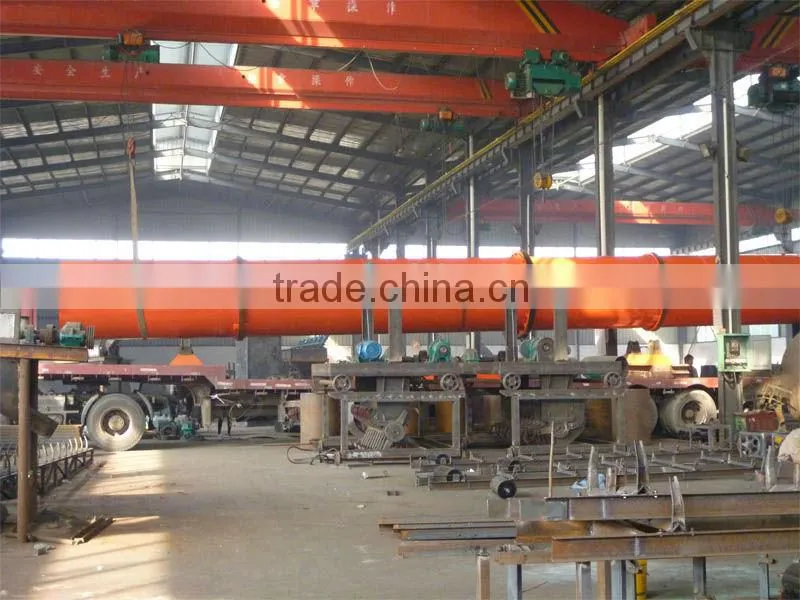

Revolving Drum granulator is one of the key equipment of compound fertilizer

It's suitable for cold and hot and high and low concentration granulation mass production of fertilizer. This cylinder by ultrahigh molecular weight polyethylene lining acid proof or stainless steel liners, has realized automatic except scar, tumor, canceled the traditional scraper device, to eliminate the phenomenon of wall material viscosity and reduce the labor intensity, and extend the life of the equipment. The machine has into the ball high strength, good appearance, corrosion resistance, resistance to wear, low energy consumption, long service life, convenient operation and maintenance, etc.

Technical Parameters:

Model	Dip angle	Diameter (m)	Length (m)	Rotor speed (r/min)	Capacity (t/h)	Dimension (m)	Weight (t)	Power (kw)
ZG 1.2*4	2-2.5	1.2	4	17	1-3	4.6*2.2*2.0	2.7	5.5
ZG 1.4*5	2-2.5	1.4	5	14	3-5	4.8*2.8*2.3	8.5	7.5
ZG 1.6*6	2-2.5	1.6	6	11.5	5-8	7.0*3.2*3.1	12.0	11
ZG 1.8*7	2-2.5	1.8	7	11.5	8-10	8.3*3.5*3.3	18.5	15
ZG 2.0*8	2-2.5	2.0	8	11	10-15	9.1*3.6*3.5	22.0	18.5
ZG 2.2*8	2-2.5	2.2	8	10.5	15-20	9.5*4.4*3.9	28.0	22
