static cranes manufacture QTZ80(TC6012)tower crane
1) Steel structure
Steel is the essential safety guarantee for tower crane. The steel we use for our tower crane is tower crane usage special square steel
from Wuhan Iron and Steel Group. Steel material for those essential parts like lifting jib,tower top, frame etc is 16 Manganese Steel.
Thus to assure safety, advance and high performance of the crane.
2) Hoisting Mechanism
We apply following technology of mature three velocity-variation pole motor, big center distance speed reducer, big diameter drum to effectively
enhance the life span of crane. And the equipped rope mechanism solves the rope disorder issue effectively. The crane is specially equipped with
hydraulic push brake to assure stable and reliable braking and easy maintenance.
3) Swing Mechanism
The speed change system is by rheostat variation of wound rotor motor or by frequency change system. The swing of tower crane is flexible,
stable, exact positioning, highly reduced swing impact force and with high safety performance.
4) Luffer
It applies double-speed or three-speed motors for speed change control according to the jib length, easy running control, low impact force,
high operation stability and high efficiency.
5) Control System
The Electric elements are from Schneider Company to assure high system reliability. The control cables uses air plug for easy and fast assembling and maintenance.
6) Operating System
Newly spacecraft type cabinet room with air conditioning system, wide eye view, high consideration of operator comfortableness and maximally
to low down operation fault rate.
7) Security Guards
Except for using the common security devices, we uniquely equips high definition operation tracking monitor system which can thoroughly supervise the lifting hook, ground and construction building and can assure safety operation when with sight blockage.
Model |
QTZ63 (TC5010J-4) |
QTZ63 (TC5010-4) |
QTZ63 (TC5013-6) |
QTZ63 (TC5611-6) |
QTZ80 (TC5613-6) |
QTZ80 (TC6010-6) |
QTZ100 (TC6013-8) |
QTZ125 (TC6016-8) |
|
Rated load moment (KN*M) |
630 |
630 |
630 |
630 |
800 |
800 |
1000 |
1250 |
|
Max. lifting weighing(T) |
4 |
4 |
6 |
6 |
6 |
6 |
8 |
8 |
|
Working range (m) |
3-50 |
2.5-50 |
2.5-50 |
2.5-56 |
2.5-56 |
2.5-60 |
2.5-60 |
2.5-60 |
|
Lifting height (fixed attachment)(m) |
40/120 |
29.3/138.5 |
40.5/220 |
40.5/220 |
40.5/220 |
46/220 |
46/220 |
46/220 |
|
Rated lifting height at max weight(T) |
1 |
1 |
1.3 |
1.1 |
1.1 |
1 |
1.3 |
1.6 |
|
Lifting speed(m/min) |
a=2 |
66/33/9.2 |
80/40/8.88 |
80/40/8.88 |
80/40/8.88 |
80/40/8.88 |
80/40/8.5 |
80/40 |
100/50 |
a=4 |
33/16.5/4.6 |
40/20/4.4 |
40/20/4.4 |
40/20/4.4 |
40/20/4.4 |
40/20/4.25 |
40/20 |
50/25 |
|
Sewing speed(r/min) |
0-0.62 |
0-0.6 |
0-0.6 |
0-0.65 |
0-0.65 |
0-0.65 |
0-0.8 |
0-0.8 |
|
(luffing speed)(m/min) |
40/2040/20 |
40/20 |
40/20 |
40/20 |
40/20 |
48/24 |
0-55 |
0-55 |
|
Total power (kw) |
22.9 |
21.1 |
31 |
32.8 |
34.7 |
34.7 |
45 |
52 |
|

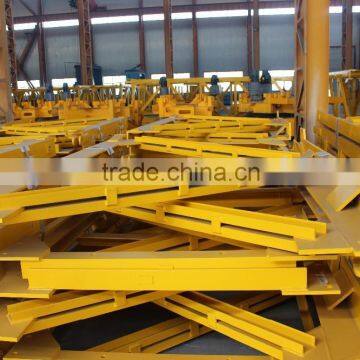

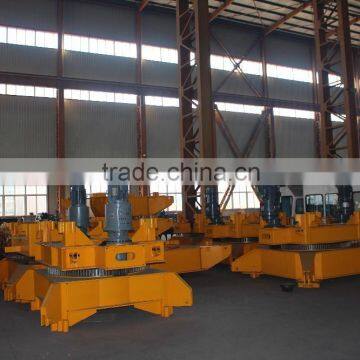

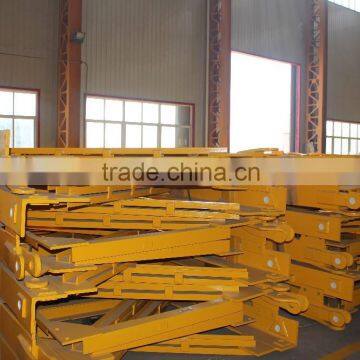

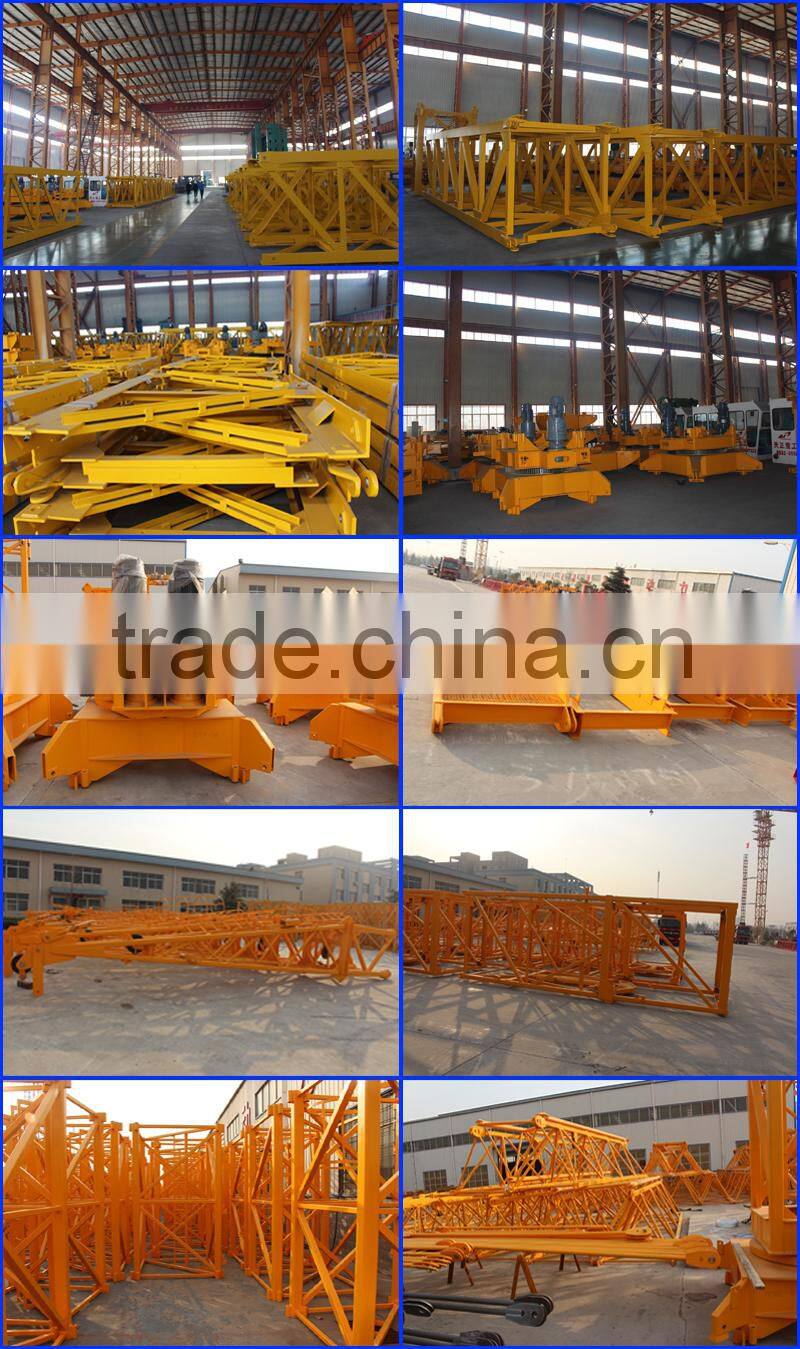

view of workshop
Loading photos
Conditions:
Payment: T/T, 30% deposit as advanced payment, the balanced paid before the delivery or paid by irrevocable L/C at sight.
Delivery time : 7-15 days after receive the advanced payment.
Packing:In containers, nude packing inside.
MOQ:1set
