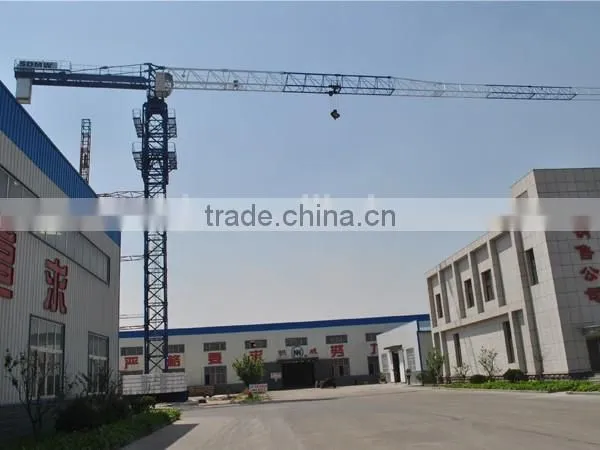

8T Topless Tower Crane with CE, ISO

FOB Price

USD $20,000 - $200,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	construction	Rated Loading Capacity:	1T
Rated Lifting Moment:	1250KN.M	Max. Lifting Load:	4T	Max. Lifting Height:	46m
Span:	60m	Place of Origin:	Henan, China	Brand Name:	ZH
Model Number:	TCP	Certification:	SGS	Warranty:	12 monthes
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

8T Topless Tower Crane with CE, ISO

The difference between topless tower crane and normal tower crane:

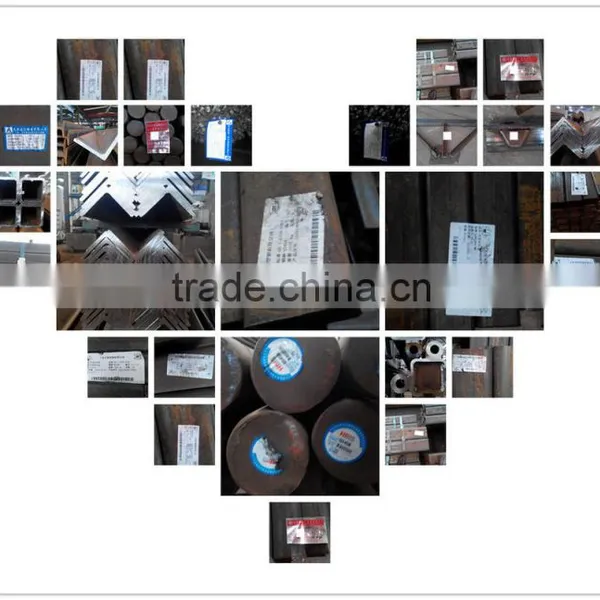

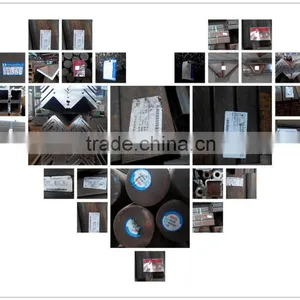

1. The boom of tower crane steel structure material is mainly Q345, generally, tower crane manufacturers in the flat head cranes have higher requirements on the material;
2.Suitable for the tower crane group of crossover operation and work highly restricted area;
3.Suitable for tower crane work places with special requirements, can adjust tower crane arm length;
4.Topless tower crane disassembling hoisting capacity requirements for place and lifting equipment is low, can be suitable for complex conditions

Technical parameter

Model Main parameters		PT125(6015)	PT80(5513)	PT60(5010)
Rated load moment	KN.m	1250	800	600
The max lifting capacity	t	8	8	4
The max working scope	m	6 0	5 5	50
The max scope rated lifting capacity	t	1.5	1.3	1.0
Setting height	m	58/200	46/150	30/120
Lifting speed	m/min	(a=2)80/40 (a=4)40/20	(a=2)80/40 (a=4)40/20	(a=2)62/31/7.7 (a=4)30/15/3.8
Derricking speed	m/min	22/44	22/44	33/22
Slewing speed	r/min	0~0.64	0~0.64	0~0.62
Climbing speed	m/min	0.4	0.4	0.4
Working temperature	C	-20~+40		-20~+40
Working voltage	V	380+5%		380+5%
The max working wind pressure	N/m²	250
