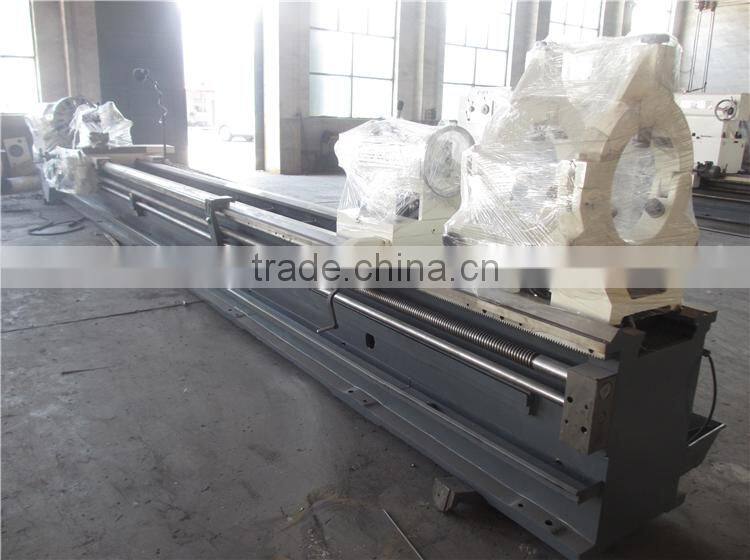

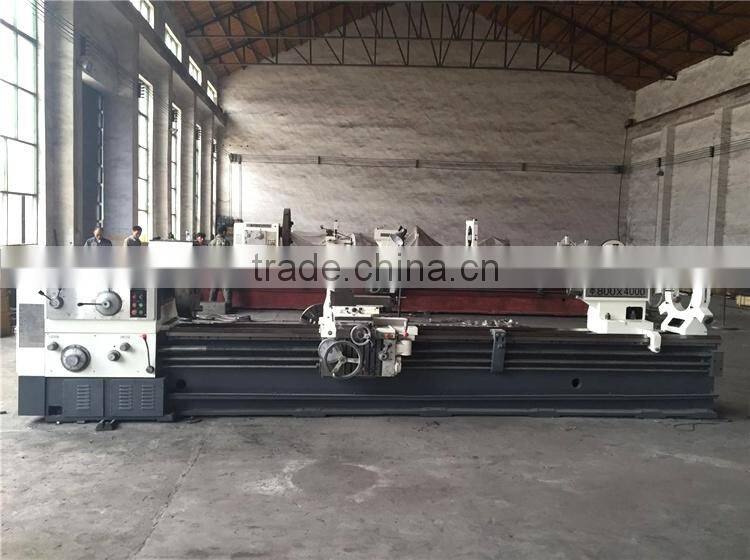

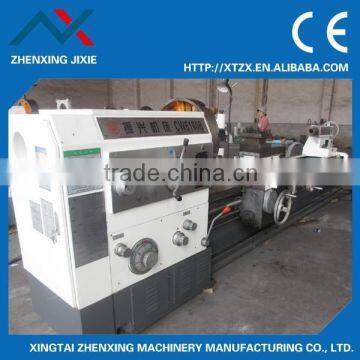

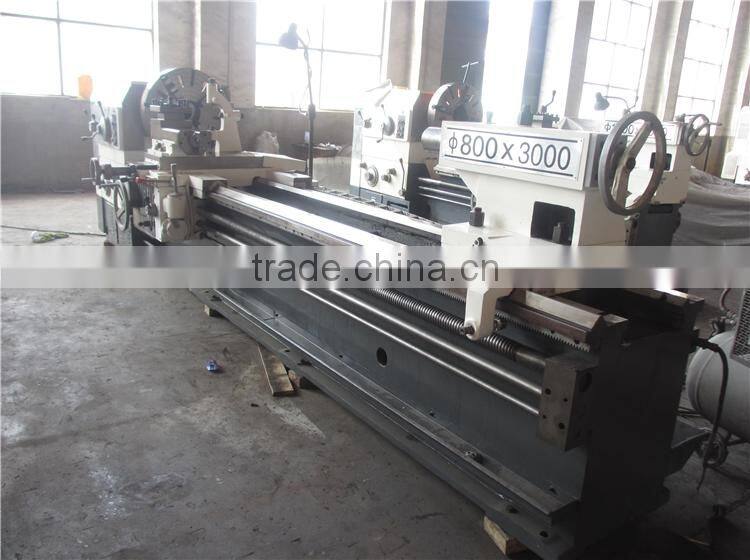

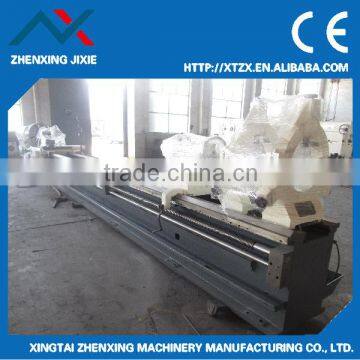

Horizontal LATHE MACHINE CW6280C 4000MM CE compliant
MODEL |
UNIT |
CW6180B | |
Swing in gap |
mm |
1100 |
|
Swing over cross slide |
mm |
800 |
|
Distance between centers |
mm |
4000 |
|
Spindle bore |
mm |
130 |
|
Spindle speeds |
rpm/steps |
10-800/18 |
|
Cross slide travel |
mm |
480 |
|
Top rest travel |
mm |
225 |
|
Rapid travel |
mm/min |
Longitudinal Axe Z: 3200 Longitudinal Axe X: 1900 |
|
Quill diameter |
mm |
90 |
|
Quill travel |
mm |
260 |
|
Quill taper |
|
MT5 |
|
Bed width |
mm |
550 |
|
Metric threads |
mm/kinds |
1-240/53 |
|
Inch threads |
tpi/kinds |
30-2/31 |
|
Module threads |
mm/kinds |
0.25-60/46 |
|
Diametrical pitch threads |
tpi/kinds |
60-0.5/47 |
|
Main motor power |
kw |
15 |
|
Packing size |
Length |
mm |
7000
|
Width |
mm |
1400 |
|
Height |
mm |
2000 |
|
Gross weight |
kg |
7000 |
|
Gear fitting area
&
Blank area
Equipment machinery area
Company area
;
Package & shipping:
we will fix the lathe &accessories to wooden case.Then spray anti-rust oil , hang up desiccant ensure safety of the machine in the long time shipping
1. Do you have any warranty?
Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
4. Will you teach how to use the machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.
5. How about thement ship?
The machine will be shipped within 2-3 days after the receipt of your payment.
6. Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term
