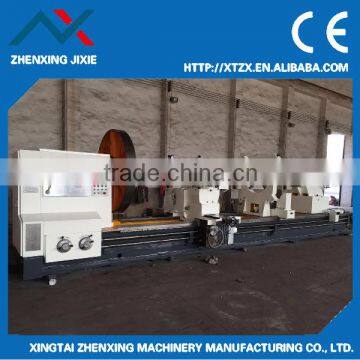

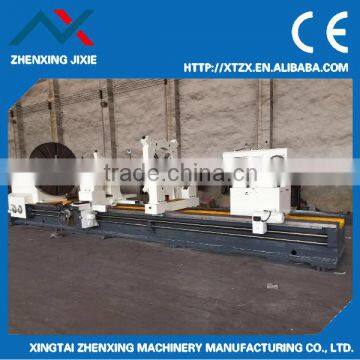

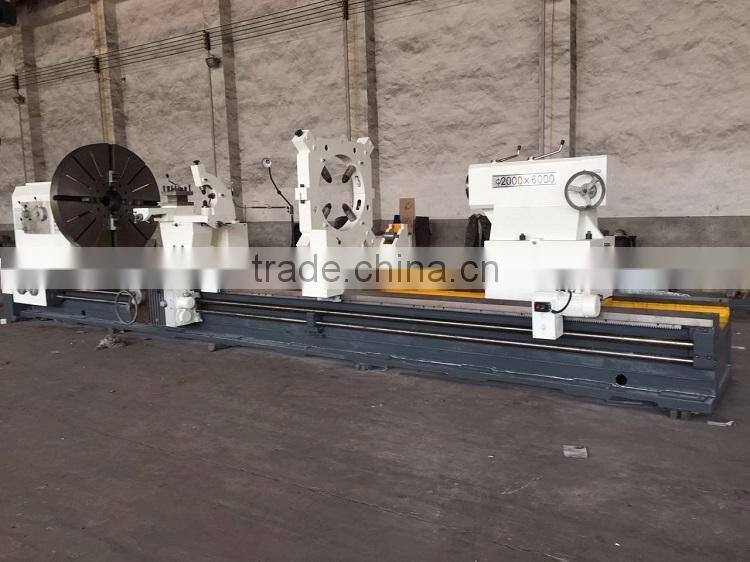

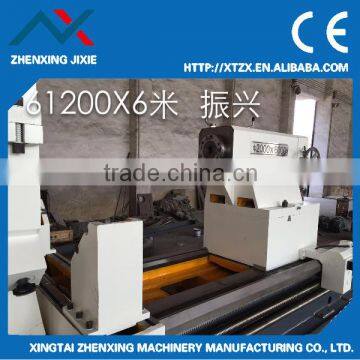

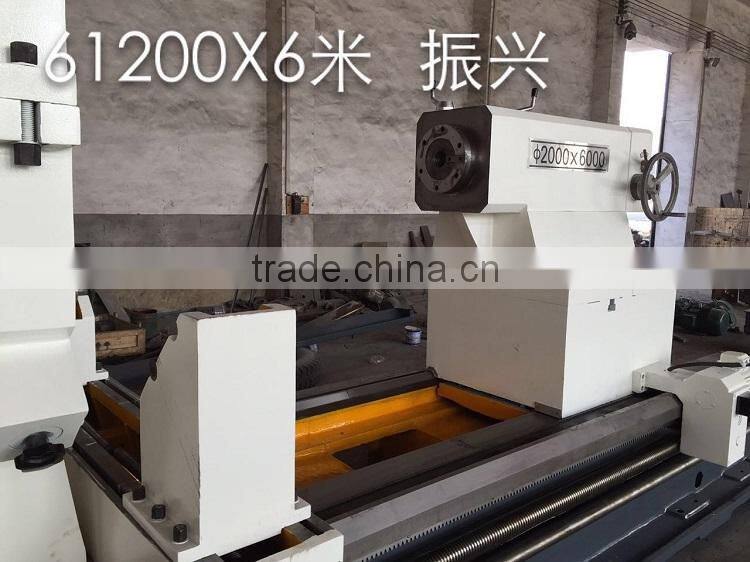

CW61200B new condition chinese horizontal lathe
Model |
Unit |
CW61200 |
Max. swing diameter over bed |
mm |
2000 |
Max. piece length |
mm |
3000/5000/6000-15000 |
Max. diameter over rest |
mm |
1600 |
Spindle hole diameter |
mm |
130 |
Spindle hole taper |
|
Metric 140 |
Spindle forward turning kinds |
|
21 Kinds |
Spindle reverse turning kind |
|
12 Kinds |
n1 forward turning speed |
r/min |
2-200 |
reverse turning speed |
r/min |
2.24-178 |
n2 forward turning speed |
r/min |
|
Range of rest of each spindle turning |
|
56 Kinds |
Longitudinal |
mm |
0.1-12 |
cross |
mm |
0.05-6 |
Up rest |
mm |
0.025-3 |
metric threads range |
mm |
44 Kinds 1-120 |
Inch threads range |
|
31 Kinds/24-1/4t.p.i |
Modules threads range |
mm |
45 Kinds/0.5-60 |
Diameter pitch threads |
|
38 Kinds /1/2-56DP |
Max. gap |
mm |
200 mm less than process length |
Max. travel of lower tool holder |
mm |
960 |
Max. travel of middle tool holder |
mm |
300 |
Max. travel of top tool holder |
mm |
200 |
Quick longitudinal move speed of tool rest |
mm/min |
3740 |
Quick cross move speed of tool rest |
mm/min |
1870 |
Follow rest |
mm/min |
935 |
Dia. of tail stock sleeve |
mm |
180 |
Max. travel of tail stock sleeve |
mm |
300 |
Taper of Tail stock sleeve |
|
Metric 80 |
Main motor power |
kw |
22 |
Outer Dimension |
mm |
3400mm more than process length |
Width |
mm |
2320 |
Height |
mm |
2700 |
Bed width |
mm |
1100 |
Max. load |
kg |
8000 |
Bed dimension |
mm |
3000-8000 |
Weight |
T |
23T,25T,26T,27T |
Gear fitting area
Blank area
&
Equipment machinery area
Company area
Package & shipping:
we will fix the lathe &accessories to wooden case.Then spray anti-rust oil , hang up desiccant ensure safety of the machine in the long time shipping
1. Do you have any warranty?
Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
4. Will you teach how to use the machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.
5. How about thement ship?
The machine will be shipped within 2-3 days after the receipt of your payment.
6. Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term
