Description
Series WXC centerless lathe is a high-efficient lathe which is specialized in rough processing and finishing of the surface of slender shaft.Not only quickly remove surface hardened layer,cracks and other defects,but also can get high precision.

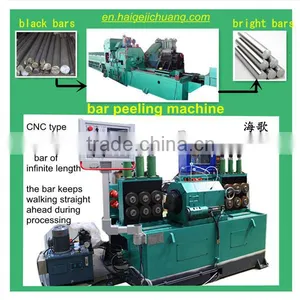

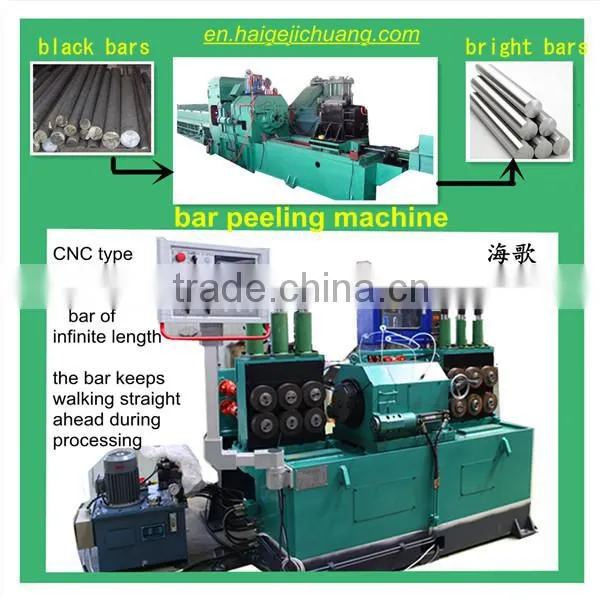

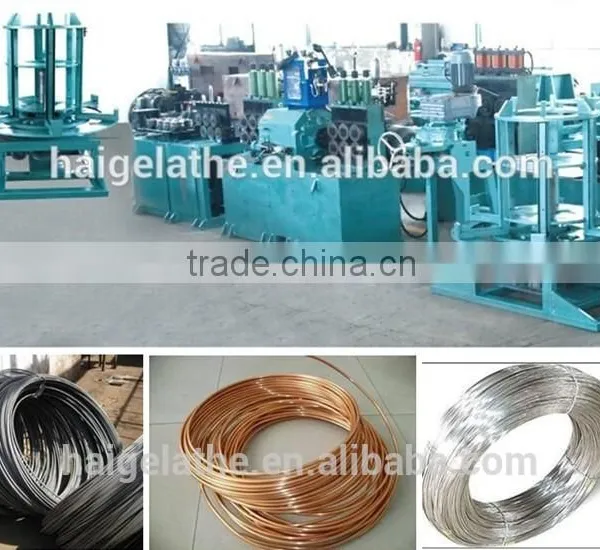

During processing,the bar itself doesn't rotate.The cutter head drives the tools rotating at high speed to peelingthe surface of the bar.At the same time,after peeling,the bar keeps walking straight ahead.The machine suits for processing the bars and wire rods.
Series WXC Centerless lathe, includes semi-automatic hydraulic type and CNC type.
Applications
1. Ferrous metals:
Stainless steel, bearing steel, spring steel, tool steel, structural steel, alloy steel, free-cutting steel, air valve steel, gear steel. etc.
2.
Copper alloy, titanium alloy, magnesium alloy, aluminum alloy, etc. Widespread in preparation link in manufacturing of slender axles, hydraulic/pneumatic elements, bearings, springs, auto parts, textile machinery, processing of cold forging materials, instruments, steel pipes, cutters, engineering machinery, sports equipment and other machiner.
3.Widely applied to industries of copper, titanium, aluminum, magnesium, petroleum, power and bridge
(e.g. piston rod, optical axis, bolt, spring, rack, rod thread, stainless steel rod, copper rod, titanium rod, aluminum rod, magnesium rod, bearing ring, draglink, roller shaft, pin, polishing rod, screw, core rod, oil drill pipe, tightwire, pipe blank).
Processing Flow
Advantages
1. Centerless lathe has incomparable advantages in processing over-length bar.In theory,it can proces the bar of infinite length.
2.It can also process rod,or turning rod into bars.
4. The precessing speed: 1~12m/min which is several times faster than the general lathe.
5. High precision. The diameter tolerance ≤IT9 while the surface roughness ≤6.3μm after peeling.The surface roughness can be less than 0.8μm if our straightening machines are used afterward.
Business and Friendship
Packaging
Our services
A. 12 months Warranty period.
B. 24 hours welcome to your enquiry.
C.Customized design is available. OEM& ODM are approved.
D.overseas installation,commssioning,training,etc.
E.Special discount can be provided to our distributor.
Company Overview
Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 1999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles
Diameters of products manufactured by the machine vary from Φ5mm to Φ600mm. The company can contract for full-set planning, design and manufacture of metal bar, tubing, and finishing line of wire rod, and meet the needs of customers at different levels. We are able to help users achieve digitization and automation control and management. We can also meet the needs of larger enterprises at home and abroad, and enterprises which require the equipments have higher degree of automation, to fundamentally enhance users’ production efficiency and product quality.
The company regards quality of products as the life. It has passed ISO9001 international quality system certification, and strictly enforces the ISO9001 international quality management system. Dependent on strong software and hardware facilities and strict quality control, the company has passed the acceptance of State Administration for Entry-Exit Inspection and Quarantine Bureau, and furthermore, centerless lathe and straightening machine have won the Export License of Product Quality.
