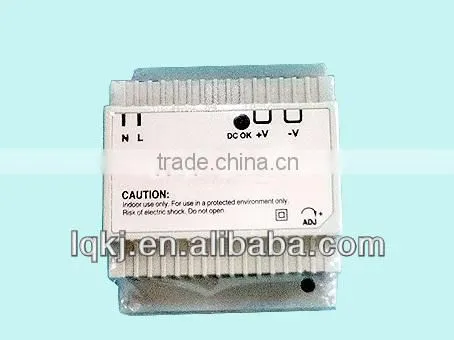

Help Center60W 5V/12V/24Vdin Rail Mount Switch
Related Products
-
75W 12V/24V/48V Din Rail Mount SwitchNegotiableMOQ: 10 Pieces -
120W 12V/24V/48V Din Rail Mount SwitchNegotiableMOQ: 10 Pieces
-
240W 12V/24V48V Din Rail Mount SwitchNegotiableMOQ: 10 Pieces
-
240W 48V Din Rail Mount SwitchNegotiableMOQ: 10 Pieces
-
240W 24V Din Rail Mount SwitchNegotiableMOQ: 10 Pieces
Specifications
1.din rail mount switchtection:SC/OV/OV/OT
3.Cooling By Free Air Convection
4.2 Year warranty
| Model(single set ) | DR-60-5 | DR-60-12 | DR-60-24 |
| DC output voltage | 5V | 12V | 24V |
| DC current | 10A | 5A | 2.5A |
| wave and noise | 100mVp-p | 100mVp-p | 150mVp-p |
| load stability | ±1% | ±0.5% | ±0.5% |
| efficiency | 76% | 82% | 84% |
| DC output power | 50W | 60W | 60W |
| adjustable range for DC voltage | -9,+10% | ±10% | ±10% |
| AC input voltage | 90~264VAC with switch select | ||
| AC input current | 1.2A/110V;0.65A/220V | ||
| Overload proctecton | 105%~130% hiccup mode, auto-recovery | ||
| Overvoltage proctecton | 105%~130% | ||
| setup rise hold up time | 1s,100ms,30ms | ||
| withstand voltage | ACI/P-O/P:1.5KV;ACI/P-FG:1.5KV;ACO/P-FG:0.5KV | ||
| isotation rosestance | I/P-O/P:1.5KV;I/P-FG:1.5KV;O/P-FG:500VDC/100MΩ | ||
| working tenperantion and humidity | -10~+60°C | ||
| safety standards | UL1012 | ||
| EMC standards | EN55022 ClassA | ||
| weight | 0.3KG | ||

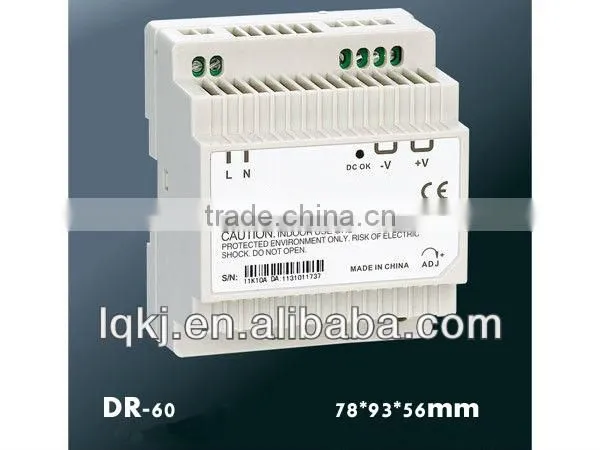

| size | 78*93*56mm | ||
Universal AC input / Full range
Protections:Short Circuit / Overload / Over Voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Isolation Class Ⅱ
LED indicator for power on
100% full load burn-in test
2 years warranty
Application:
1.Digital and electronic products;
2.LCD, LED, CCTV camera;
3.Communications and security products;
4.Electrical equipment, Instrumentation .
Protection:
1.With short circuit, over temperature and over power protection.
2.The power supply will auto recovered when faults remove.
3.The power supply shall not damage by short the output to ground.
A Fast Delivery + Satisfied Customer Service Is Our NO.1 Priority!
1, Our goal is to provide you the right product and make you satisfied, so please don't hesitate to contact us via tel or mail.
2, We shall find for you the cheapest shipping term and show you the freight and shipping time. Regarding to the urgent order,
a quickest shipping term and freight will be advised to you for consideration.
3, The stock info will be informed before your order, to make everything under control.
4, Price could be negotiated for more and large quantity.
Shipping & Duties
Usually, shipping will be arranged within 2-3 days upon payment or deposit, from Monday to Saturday only.
The importing tax and duty will be paid by purchaser, as they are not included in the order.
Payment
To assure you the maximum comfort and satisfaction, Currently, you can pay T/T,L/C,D/P, WESTERN UNION,PAYPAL , More payment options will be added in the near future.
After-sale service
All of the products we sell are with a certain time warranty, during the warranty, anything wrong with it, like no working,an unstable output voltage or current, damaged, my corporation will be responsible to fix it well for free and re-send it to the clients. But, the delivery cost should be paid by purchaser himself.
We will be very glad to provide the assistance during your installation and application at any time.
1. Please send a message to us if any problem you have.
2. We have 100% satisfactory guarantee, if you are not satisfied with your purchase for any reason, please DO contact us and we will help to resolve your problem.
Please tell us your requirements, then, there will be no disappointment, no regret.
