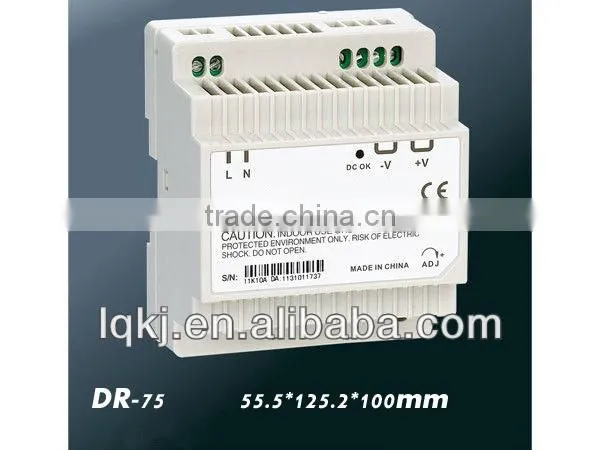

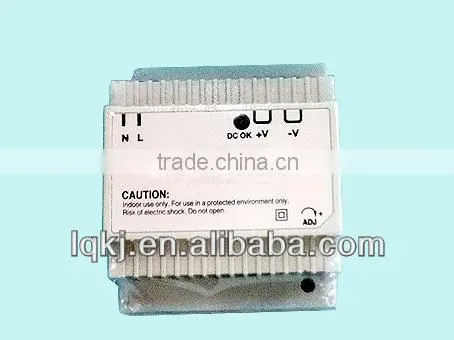

75W 12V/24V/48V din rail mount switch

Specifications

1.din rail mount switch
tection:SC/OV/OV/OT
3.Cooling By Free Air Convection
4.2 Year warranty



Model(single set )	DR-75-12	DR-75-24	DR-75-48
DC output voltage	12V	24V	48V
DC current	6.3A	3.2A	1.6A
wave and noise	100mVp-p	150mVp-p	200mVp-p
load stability	±1%	±0.5%	±0.5%
efficiency	76%	84%	86%
DC output power	76W	76.8W	76.8W
adjustable range for DC voltage	-9,+10%	±10%	±10%
AC input voltage	90~264VAC with switch select
AC input current	0.96A/110V;0.6A/220V
Overload proctecton	105%~130% hiccup mode, auto-recovery
Overvoltage proctecton	105%~130%
setup rise hold up time	1s,100ms,30ms
withstand voltage	ACI/P-O/P:1.5KV;ACI/P-FG:1.5KV;ACO/P-FG:0.5KV
isotation rosestance	I/P-O/P:1.5KV;I/P-FG:1.5KV;O/P-FG:500VDC/100MΩ
working tenperantion and humidity	-10~+60°C
safety standards	UL1012
EMC standards	EN55022 ClassA
weight	0.6KG
size	55.5*125.2*100mm







Universal AC input / Full range



Protections:Short Circuit / Overload / Over Voltage



Cooling by free air convection



Can be installed on DIN rail TS-35/7.5 or 15



Isolation Class Ⅱ



LED indicator for power on



100% full load burn-in test



2 years warranty









 Application:



1.Digital and electronic products;
2.LCD, LED, CCTV camera;
3.Communications and security products;
4.Electrical equipment, Instrumentation .



Protection:



1.With short circuit, over temperature and over power protection.
2.The power supply will auto recovered when faults remove.
3.The power supply shall not damage by short the output to ground.
