Specifications
Boat drum anchor winch:1. Electric / Electro-hydraulic.
2. 5 - 65 tonne rated line-pull.
3. Awarded CCS,ABS,BV,DNV.et
Boat Drum Anchor Winch
Marine Hydraulic Boat Drum Anchor Winch
Brief Introduction of our Hydraulic Boat Drum Anchor Winch
This kind winch is mainly used on boat for vertically lifting anchor or heavy things.
The winch can be driven by electric motor,hydraulic pump system and diesel engine.
With compact structure and all kinds of design, all the anchor winches get to the
standard of ABS,LR,BC,CCS,LR,DNV,NK, etc.
Technical Parameters of the Hydraulic Boat Drum Anchor Winch
Model |
Chain Dia. |
Working load |
Supporting load |
Working speed |
Warping load |
Warping speed |
Motor power |
Overall Dimensions |
Weight |
mm |
KN |
KN |
m/min |
|
m/min |
KW |
mm |
T |
|
GHMDW- 24 |
24 |
25-27 |
149-214 |
9 |
20 |
8.5 |
8.5/3.5 |
1400x1625x1050 |
3.3 |
GHMDW-26 |
26 |
29-32 |
175-250 |
9 |
20 |
8.5 |
8.5/3.5 |
1400x1625x1050 |
3.3 |
GHMDW-28 |
28 |
33-37 |
202-289 |
9 |
20 |
8.5 |
11/11/7.5 |
1600x1845x1150 |
3.8 |
GHMDW-30 |
30 |
38-42 |
231-331 |
9 |
30 |
8.5 |
11/11/7.5 |
1600x1845x1150 |
3.8 |
GHMDW-32 |
32 |
44-49 |
262-375 |
9 |
30 |
8.5 |
16/16/11 |
1775x2025x1270 |
4.6 |
GHMDW-34 |
34 |
49-55 |
295-422 |
9 |
30 |
8.5 |
16/16/11 |
1775x2025x1270 |
4.6 |
GHMDW-36 |
36 |
55-62 |
329-473 |
9 |
30 |
8.5 |
16/16/11 |
1775x2025x1270 |
4.6 |
GHMDW-38 |
38 |
61-69 |
365-522 |
9 |
50 |
8.5 |
22/22/16 |
1900x2150x1350 |
5.2 |
GHMDW-40 |
40 |
68-76 |
403-576 |
9 |
50 |
8.5 |
22/22/16 |
1900x2150x1350 |
5.2 |
GHMDW-42 |
42 |
75-84 |
442-630 |
9 |
50 |
8.5 |
22/22/16 |
1900x2150x1350 |
5.2 |
Advantages of our Hydraulic Anchor Drum Winch
1. Control the product quality from the source
2.The main mechanical stress components should pass flaw detection to ensure the quality.
3. Adopt domestic famous brand electric device
4. Fully equipped with accessories
5. Easy installation and operation
6. Provide professional customization service
7. Reasonable price and good after-sale service

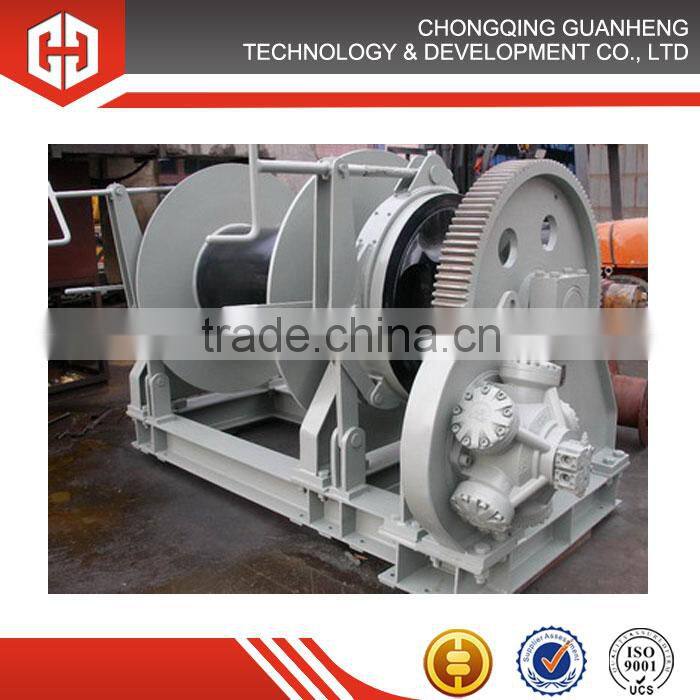

Boat drum anchor winch

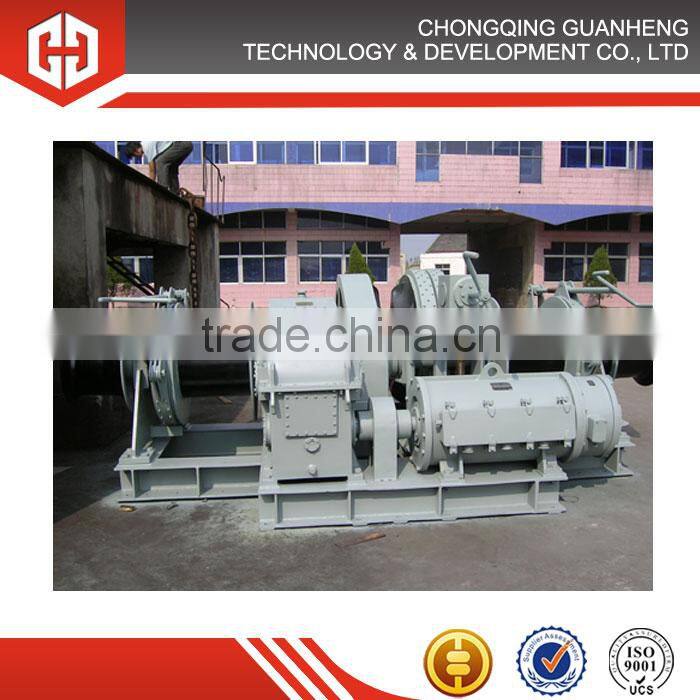

Combined anchor windlass mooring winch
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
