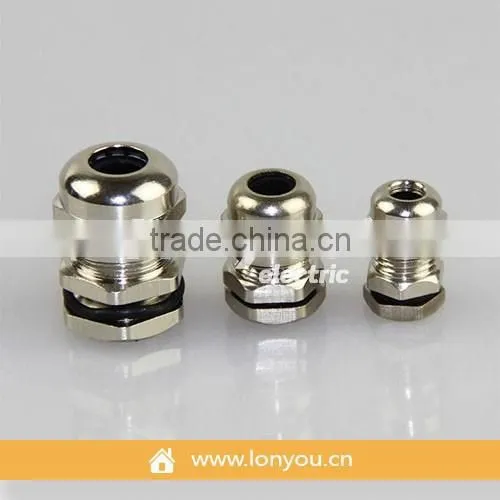

Flat Form Brass Cable Glands (PG Type)
1.Material:
Body:nickel-plated brass;
Claw:PA
Sealing and O-ring: NBR
2.Certificates:CE,RoHS,REACH;
3.Protection Level: IP68 to 10 bar;
4.Color: Metallic;
5.Temperature resistance:
Static state:-40℃ to 100℃,interm,up tp approx 120℃;
Dynamic state:-20℃ to 80℃,interm,up to approx 100℃;
6.Thread length:Standard thread type for being used with thin board or equipment with inner thread.Longer thread type for being used with thick board jointing.Thread stretched can be customized.
7.Features:
1)Special design of claw and sealing bump clasped;
2)Extremely easy installation;
3)Strong resistance to pressure.
4)Be designed to withstand water,dust,salt,acid-base,alcohol,oil and common solvent;
8.Instruction:Matching products of cables,Used to tighten the cables and joint to another equipments or insert to electric equipments with inner thread interfaces;
9.Variations:Other designs are on request and special sealing inserts are possible.OEM is available.
