Cheap Solar Water Heater Manufacturer &pressurized Solar Water Heater&rooftop Solar Water Heater

US$ 600 - 1,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

QZ-300L

Suzhou Sinoyin Solares Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name HS

Model Number QZ-300L

Specification Normal

Application Commercial

Output Voltage (V) 220V

Load Power (W) <100W

Specifications

1,Germany improted blue titanium absorbers
2, Laser welding for copper and absorber
3, 25 years lifetimes,SRCC Solar Keymark

Compact solar water heater Introduction

Advantages:

(1)European and American design style

(2)The natural circulation system of , free maintenance;

(3)Auxiliary electrical heating, with temperature controller and manual

overheat protector;

(4) The inner tank use food-grade 304 stainless steel or enamel materials,

corrosion resistance, long service life;

(5)Using high efficient flat plate collector;

(6) System uses indirect heat, suitable for various climate installation.

Specifications:

Category		P-JF2-150/1.8 0/0.70-ZFF-2. 4-01
Enamel water tank	Circulation way	Pressure-bearing indirect cycle
	Water tank	150L
	Size	Φ555*1200mm
	Shell material	Porcelain white choi steel
	Jacketed heat exchanger area(m2)	1.2
	Max working pressure	0.6Mpa
	Jacketed max working pressure	0.3Mpa
	Auxiliary electrical heating	2.0kw

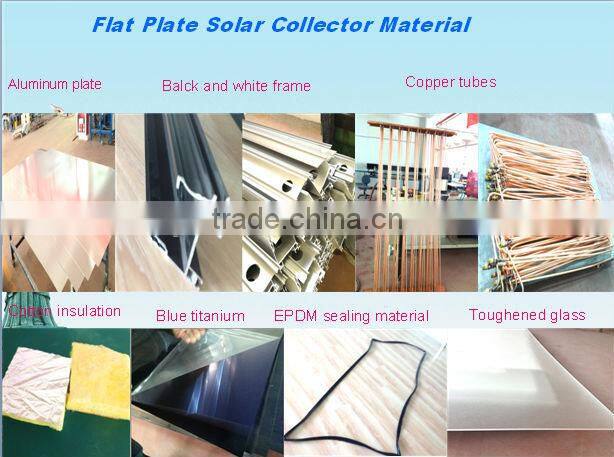

Solar collector	Model	FP-GV2.0
	Size( L x W x T )	2000 x 1000 x 80mm
	Total area	2m2x 1pcs
	Absorb plate material	Whole plate aluminum
	Heat absorption coating	Imported blue titanium/Black chromium plating
	Header tubes	red copper/ Φ22*0.6
	Row tubes	red copper / Φ8*0.6
	number of row tubes	8 pieces
	Welding	Whole plate laser welding

	Cover plate	Low iron cloth tempered glass
	Frame material	Aluminum
	Insulation	Wave fiber cotton
	Connector size	DN15 outside
