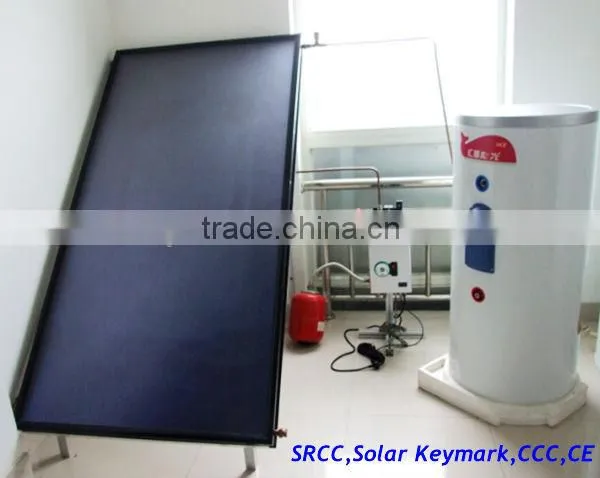

Solar water geyser with flat plate soalr collector

Specifications

1,Germany improted blue titanium absorbers
2, Laser welding for copper and absorber
3, 25 years lifetimes,SRCC Solar Keymark





The following is our solar collectors’ advantages:



1)S-type tube flat plate solar collector,have gotten the line patent in China.no any welding on

  the tube,no any leakage.



2) Laser welding between whole absorber panel and copper tube, high strength thicken heavy



duty aluminium frame.



3) The instant heat efficiency of the collector can up to 81.1%,much higher than the 72%

  standard,very rare in China.

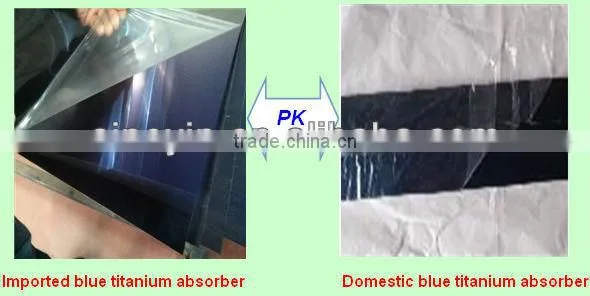

4)Germany imported high efficient selective blue titanium coating.use best copper tubes in

  domestic.



5)Special low-iron tempered glass with transmittance more than 92%.



6) Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and

internal shock tested etc.



7) Long lifetime, large absorber area,good warm keeping , European,North America special

designed.

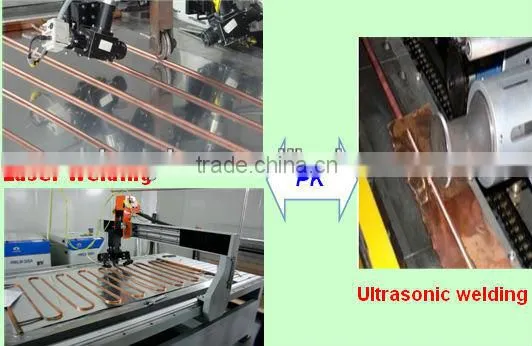

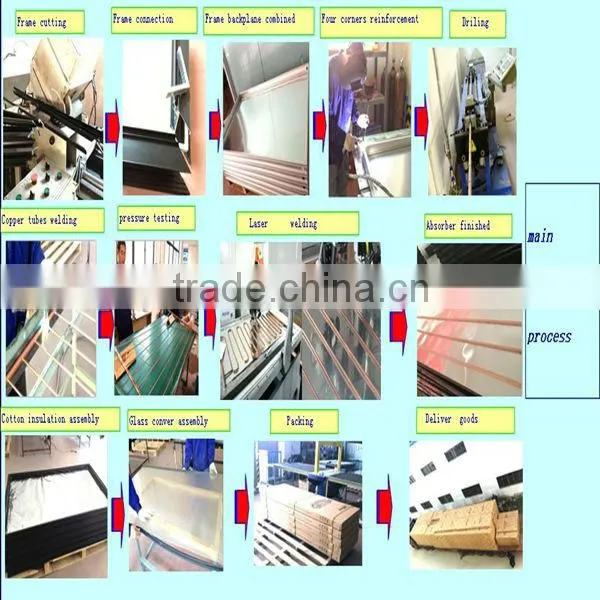

                       Manufacturing technique difference

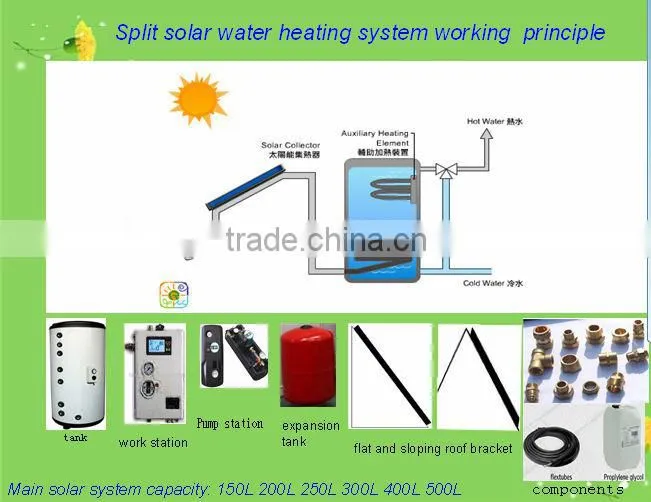

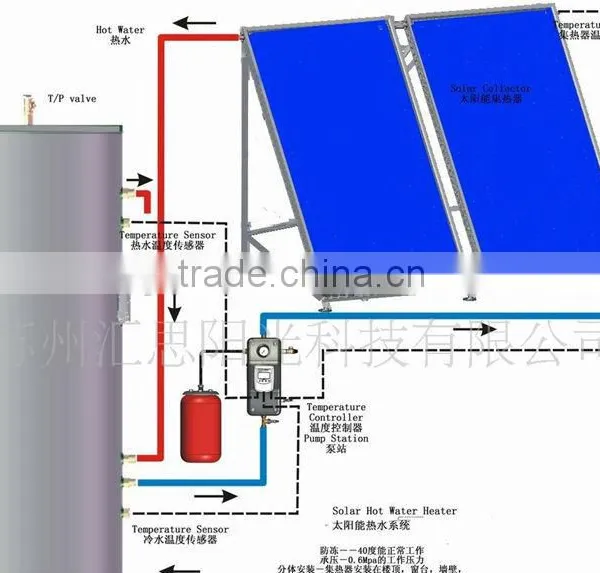

The following is details of solar water heater system working principle :







1)  When the temperature difference between solar collector and tank reaches the set value,

the controller will start the circulation pump automatically,contrarily, In case the when the

temperature difference between solar collectorand tank do reaches the set value, the

circulation pump will be shut automatically.



2) The circulation pump makes heat-conducting liquid circulate automatically .



3) The heat-conducting liquid transfers heat to water by heat exchanger in the water tank



4) our water tank has electrical auxiliary heating system, when the temperature of the water

 tank does not reach Tmax, electrical heating system will start to work .

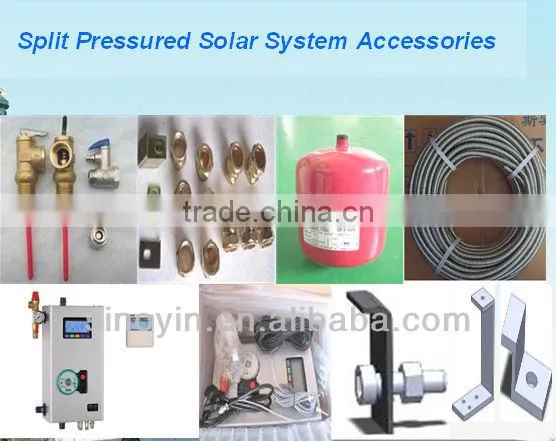

Our split solar water heater system is 150L ,200L,250L,300L,400L,500L ,which are pressurized

system with enamel inner water tank or stainless steel inner water tank ,Besides , we can also

provide compact pressurized solar water heater system - 150L,200L,300L, the more solar water

heater system specifications please email with your requirement !!

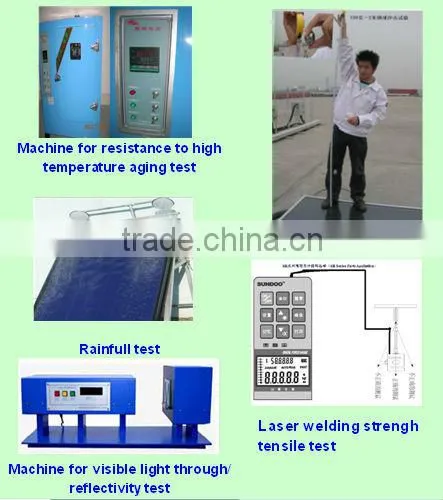

1) Laser welding strengh tensile test





2) Resistance to high temperature aging tes



    Quality requirements:



a, after test, appearance  have no

    deformation, discoloration, stratification of volatile fade, crack and breakage.



b, after test, under the performance of the prescribed temperature,

    all the performance parameters of carbide change should comply with the

    relevant standards



3) Impact resistance test



   Quality standard requirements:

   The test result judgment criteria: 1.0 m, no broken, no crack of qualified



4) Rainfull test







5) Visible light through/ reflectivity test



    Quality standard:



   a,no dark marks in the test products smooth surface which should be clean, no

   variegation, bubble, crack,qualitative, defects such as gas line.

   b,Light transmittance >= 91% or higher



6) Hardness test



   Quality standard requirements:



  a,the material is black, the hardness is  type A 70 degree  +/- 3



  b,material surface is smooth and soft elastic.



The more test items and each test process ,we will show you in our testing room

when you come to visit our company.























 The shipping date is estimated as the following :



• European 25-35 days
• North America 12-35 days
• South America 30-50 daysAfrica   28- 60 days
• Oceania 16 to 25 days
• Southeast Asia 3 -10 days
• Middle East   15 to 30 days



The specific shipping date should according to your actual delivery port.our FOB port is

Shanghai port ,delivery time is 10-30daysour solar system has two years warranty,we can

quote you FOB Shanghai price , after you tell me your delivery port ,we will send you CIF

or CRF price accordingly.





 What are your main products?

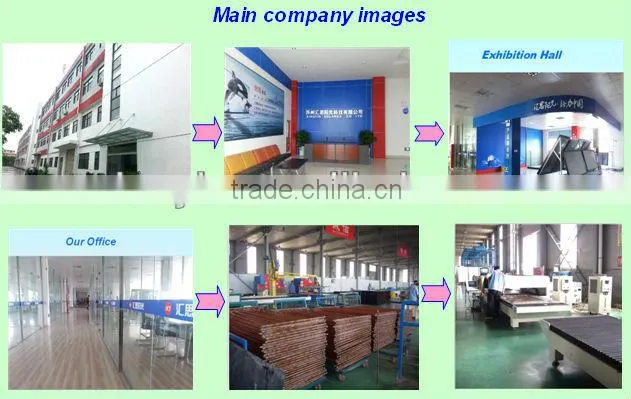

Our company is factory in Suzhou Industrial Park, can provide you



• Split pressurized solar water heater system (150L,200L,300L,400L,500L)
• Compact pressurized solar water heater system (150L,200L,300L)
• Solar water heater system for balcony (80L 100L 120L)
• Central solar water supplying project (1 ton ,8 ton, 20 ton ,30 ton ,50 ton ,)
• Solar building space heating /warming system
• Three kinds of solar water heater collectors( 2000x1000x80mm ,2015x1015x76mm,
•  2050x1050x95mm



 Each products details ,please email me ,I can send your PDF file and video introduction



 to introduce in details!



What is your MQO ,Payment , Production cycle ?



One set for solar system, two sets for solar collectors. two weeks production cycle.

T/T and L/C or other payment way after discussion.



Does your company provide free sample or how to get sample?



Since our products have high value, our company will not send free sample,

We offer samples with sample costs, shipping and taxes paid by the buyer.

or free sample when large quantity.



                       More question ,please feel free to ask me !!!







You can also visit our Global Sources shop by type our company



name Sinoyin Solares Co.,Ltd



Welcome to visit our company anytime!! My Skype is LidingLyli
