300L Split pressurized solar black chrome most popular Solar hot water heating system Porcelain enamel inner tank
Solar energy systems for project use
Specifications
Dimension LxWxH (mm): 2050*1050*80mm
Gross Area (m2 ): 2.15
Absorber Area (m2 ): 1.963
Number of covers: 1
Cover material: Low iron, tempered glass
Cover Thickness(mm): 3.2mm
Cover Transmission: >91.7%
Weight: 38kg

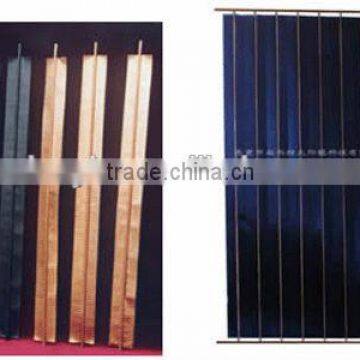

Absorber
Material: Aluminium board
Surface Treatment: Black Chrome
Absorptivity: 95±2%
Emissivity: 5±2%
Construction Type: Grid type
Header Material: Copper TP2
Header tuber size: 22mm* 0.8mm
Riser Material: Copper TP2/CA1220
Riser tuber size: 8mm*0.75mm
Work Pressure: 0.75Mpa
Test pressure: 1.2Mpa,keeps 5 minutes
Whole collector
| Max power G=1000W/ m² per collector | 1.52kw |
| Thermal effiency | 0.795 |
| heat loss coefficient a1* | 2.889 W/m².K |
| heat loss coefficient a2* | 0.026W/m².K |
| Maximum stagnation temperature for ambient conditions of 1000W/m2 and 30°C | 190.6°C |
Thermal Insulation
Insulation Material :Fiberglass
Insulation Thickness :50mm
Density: 48kg/cube for FP-GV2.15.00-A and FP-GV2.05-01-A , 36kg/cube for FP-GV2.0
Casing
Frame : Aluminium alloy
Frame Colour : silver or black
Back Plate : Aluminium plate
Sealing Gasket : EPDM
| Approved by Solar-keymark, SRCC, CE,ISO9001,CCC,etc. |
REMARK:

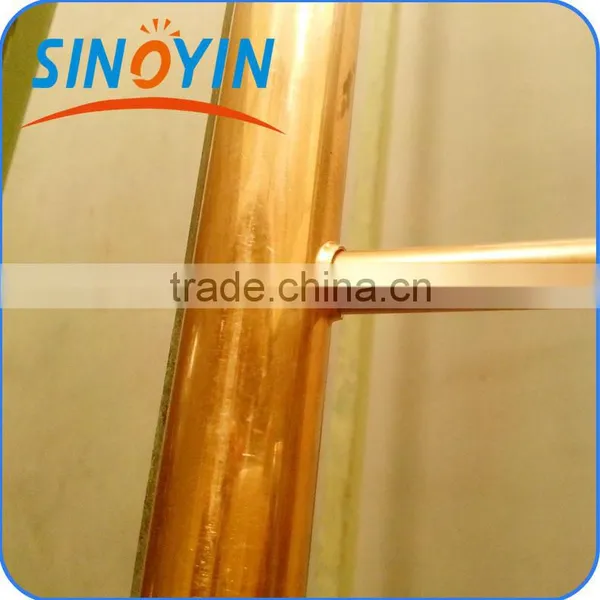

Full plate absorber, laser welding between absorbor and copper tube .
Mechanical load, freeze resistace, rain penetration, exposure, hail impact, external and internal etc.tested

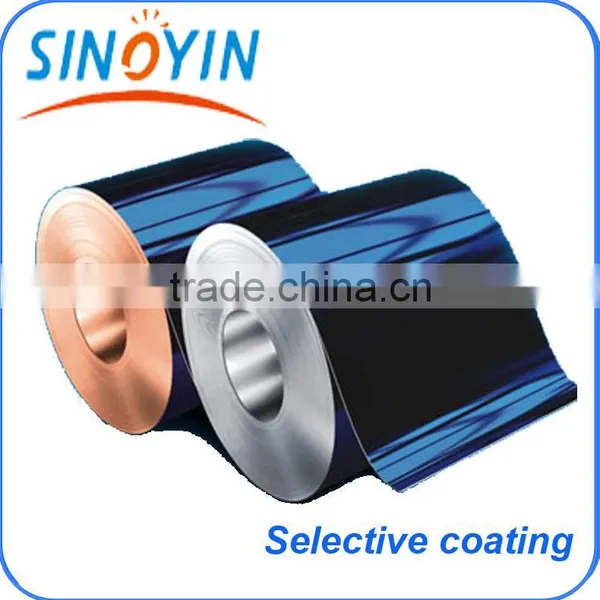

Germany imported highly selective blue titanium coating.
Good quality,high performance, excellent service
