Home > Manufacturing & Processing Machinery > Manufacturing Equipment for Electrical & Electronic Product > Cable Extrusion Machine > 22DW Aluminum Electric Wire Drawing Machine

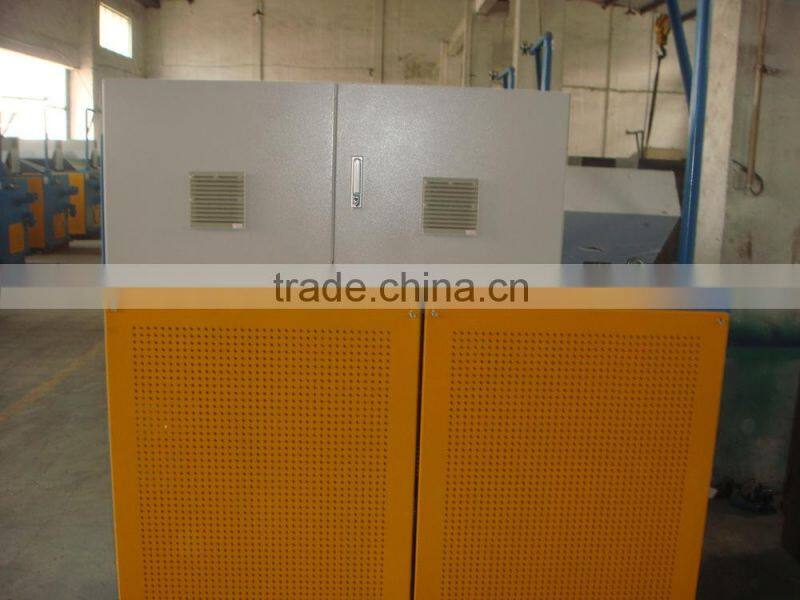

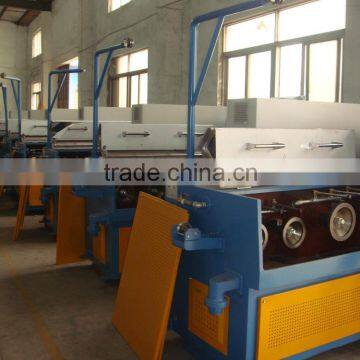

22DW Aluminum Electric Wire Drawing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HXE
Model Number:
22DW
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fine Copper Wire Drawing Machine - Vertical TypeUS$ 7,300 - 7,800MOQ: 1 Set -
HXE-22DH Copper Wire Drawing Machine With Large SpoolUS$ 1 - 1MOQ: 1 Set
-
Copper Wire Drawing Machine(HXE-22DS)US$ 1 - 2MOQ: 1 Set
-
HXE-14DS Copper Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
-
High Speed Copper Wire Drawing Machine(HXE-22DS)US$ 1 - 2MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HXE
Model Number
22DW
Usage
Drawing

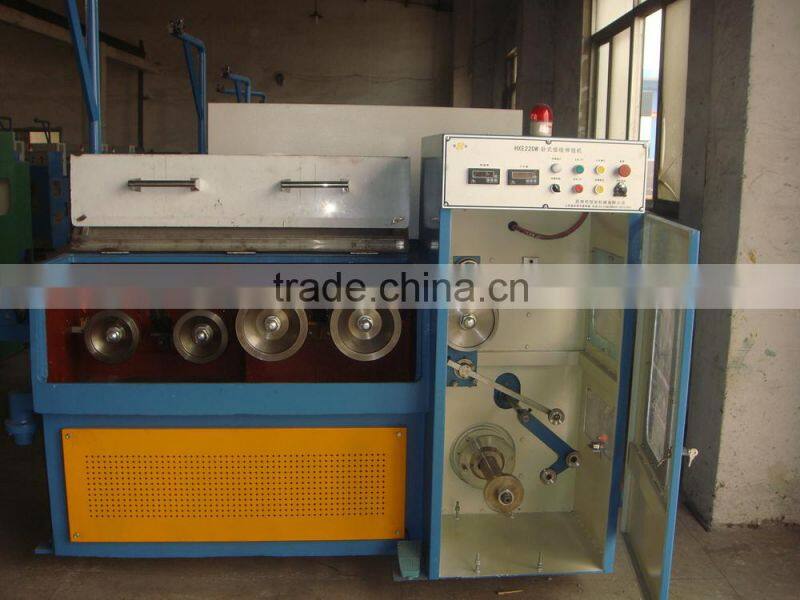

22DW aluminum wire drawing machineis used to drawing the aluminum wire from 0.6-1.2mm to0.1-0.7mm. The max line speed can up to 2500 m/min , so it is high efficiency. Easy to operate and matain.
product parameter
| inlet diameter | 0.6-1.2mm |
| outlet diameter | 0.1-0.7mm |
| max line speed | 2500m/min |
| die number | 22 |
| slip ratio of m/c | 15%+8% |

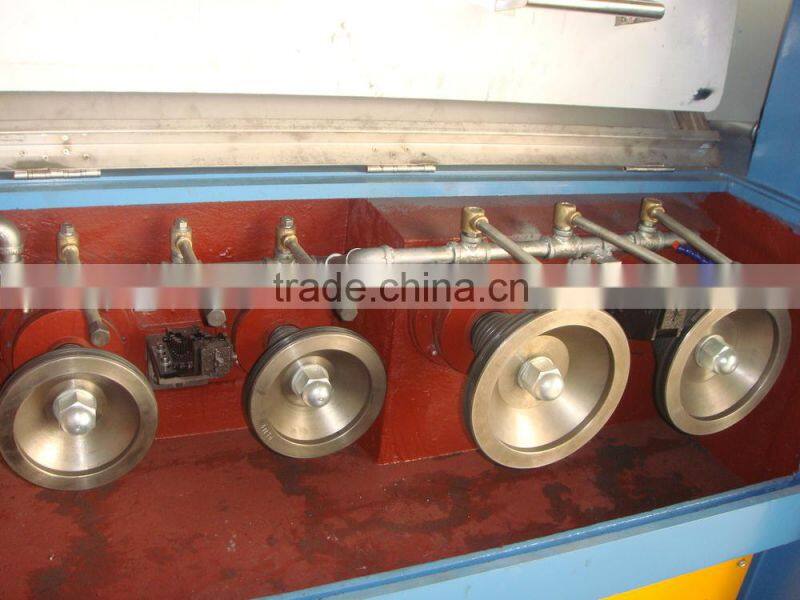

| capstan | ceramic plasma |
| max capstan diameter | 242mm |
| fix speed capstan diameter | 207mm |
| frame | iron cast |
| main motor | 15KW three phase AC motor |
| spool motor | 3.7KW three phase AC notor |
| revise system | PID synchronous motor |
| power control | inverter control |
| transmission type | flat belt |
| pay-off method | over-head |
| traversing unit | flat belt + synchronous motor |
| tension control | weight balance by swing arm |
| lubrication type | spray type |
| applicable spooler size | 300 |
| spooler capacity | 50-60kg |
| bobbin loading & unloading type | shaft type |
| power source | 380V |
| brake | pneumatic brake |
MARKET DISTRIBUTION

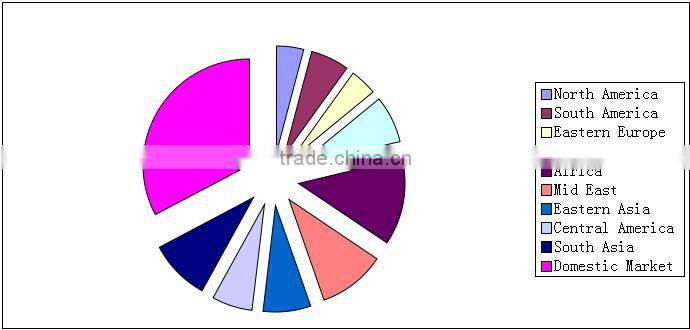

Our products sell well in the Mid. east , North America,Asia,etc.The following is the chart of the market distribution.
