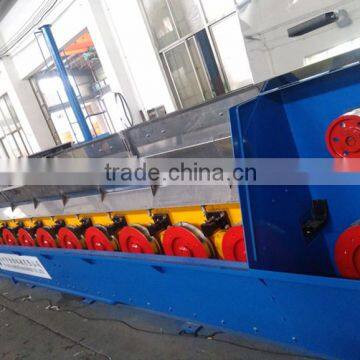

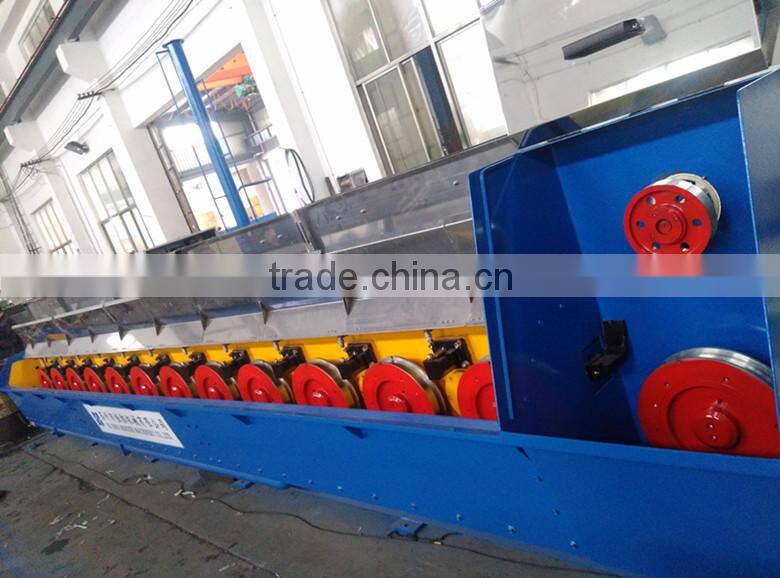

9DL Aluminum Rod Breakdown Machine
Aluminium rod breakdown machine (with automatic dual take up machine) is used to draw aluminium single aluminium wire from 9.5mm(Max.) to 1.7mm – 4.5mm.
I. Compositions of equipments
Name |
Quantity |
1.Pay-off |
1 set |
2.HXE-13DLA Main drawing machine |
1 set |
3.HXE-SX630 Automatic dual take up machine |
1 set |
4.Electric cabinet |
1 set |
5.Operation panel |
1 set |
6.User manual, including inverter instruction, Installation layout, etc |
|
7.Accessories |
|
II.Main technical parameters
1. Inlet size:9.5mm(Max.)
2. Outlet size:1.7mm – 4.5mm
3. Drawing speed:1000m/min
4. Drum speed ratio:1.25
5. Capstan max size:400mm
6.Capstan:Iron cast
7.Pay off method: Portal type
8.Traversing unit: Free rod type
9.Lubrication type: Spray
10.Power source: (customized)
11. Die No:13
12. Main motor:160KW, with AC 160KW inverter drive.
13. Spool motor: 22KW
14. Sped adjustment: By frequency inverter
15. Spool size:500mm-630mm
