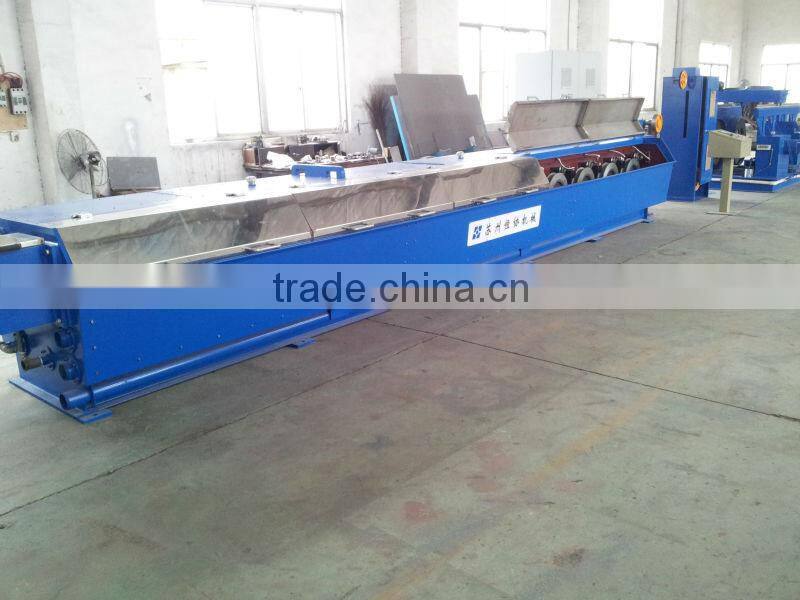

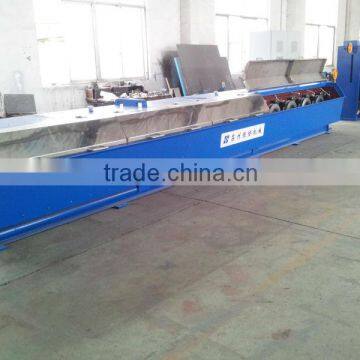

Help CenterAluminum Electrical Rod Breakdown Machine-HXE-11DLA Price
Related Products
-
9D Aluminum Wire Drawing MachineUS$ 1 - 12MOQ: 1 Set -
9DL Aluminum Rod Breakdown MachineUS$ 1 - 2MOQ: 1 Set
-
Fast Aluminum High Speed Rod Breakdown Machine-drawing UsageUS$ 71,400 - 71,400MOQ: 1 Set
-
Aluminum Rod Breakdown Producing Machine-13DLUS$ 1,000 - 10,000MOQ: 1 Set
-
Aluminum Rod Breakdown Machine-Wire Drawing Machine -high Efficience Low Price China SupplierUS$ 1,000 - 10,000MOQ: 1 Set
1.GENERAL DESCRIPTION
This machine is used to draw 1.7mm-4.2mm aluminum wires from 9.5mm aluminum rod. The drawing blocks are mounted in one row. The constant-speed wheel and the other 8 drawing blocks are driven by two motors respectively. Such design makes it easy to operate and change dies quickly.
2.TECHNICAL PARAMETER
|
Items |
Specification |
2.1 |
Inlet wire diameter |
9.5mm |
2.2 |
Outlet wire diameter |
1.7mm-4.2mm |
2.3 |
Max drawing speed |
17m/s |
2.4 |
Drawing capstan diameter |
Ø450mm |
2.5 |
Max. drawing dies/ capstans |
11 |
2.6 |
Die dimension |
Ø38mm×25mm |
2.7 |
Capacity of the accumulator |
7m |
2.8 |
Dual-bobbin take up size |
HXE-630 |
2.9 |
Main motor power |
315KW (DC) |
2.10 |
Power of motor for constant speed wheel |
75KW (DC) |
2.11 |
Power of motor for dual-bobbin take up |
30 KW×2 (DC ) |
2.12 |
Machine dimension(L×W×H) |
20000×45000×48000mm |
Certification
Package&Delivery
In Exhibition
Market share
Brand of accessories
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
