Product Introduction
Diamond Segments are use for the gang saw blades and circular saw blades. After diamond segments worn out, workers can weld the new segments on the blades for three or four times. diamond segments can provide very good performance for granite, marble, sandstone, limestone, jade, ceramic... Cutting.
Specification
1.Fast cutting speed
2.High efficiency
3.Long lifespan
4.Smooth cutting reduce the cost for polishing the surface
5.Small cutting slot ,save more material
6.Precise processing
7.Less water and electricity cost

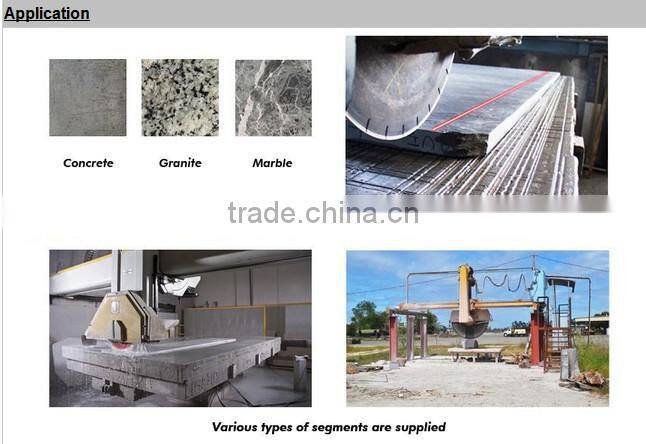

Application
Single saw blade, Multi saw blade, Gang saw, Grinding disc,Cup wheel, Core drill bits, Calibrating roller, etc
Advantqages
♦ Good cutting result: smooth cutting, flat surface and even size.
♦ Stable cutting, narrow cutting gap, stone waste reduction.
♦ Ideal for Hard Materials for general purpose cut.
♦ Reasonable price and excellent service.
♦ We have strict quality control system, to ensure quality stable.
♦ Diamond saw blades suitable for fast, free, smooth cutting.
♦ Reduce cutting friction a lot, improve slab flatness, save energy.
Product Details
| Diameter |
Core thickness (mm) |
Slots (pcs) |
Segment Dimension L*W*H(mm) |
Segment Number |
|||
| Inch | Metric(mm) | ||||||
| 36" | 900 | 5.0 | 64 | 24*6.6/6.2*12/20 | 64 | ||
| 40" | 1000 | 5.0 | 70/72 | 24*7.4/6.8*12/20 | 70/72 | ||
| 44" | 1100 | 5.5 | 74 | 24*7.4/6.8*12/20 | 74 | ||
| 48" | 1200 | 5.5 | 80 | 24*7.5/7.0*12/20 | 80 | ||
| 52" | 1300 | 6.0 | 88 | 24*8.0/7.4*12/20 | 88 | ||
| 56" | 1400 | 6.5 | 96 | 24*9.0/8.4*12/20 | 96 | ||
| 64" | 1600 | 6.5 | 104/108 | 24*9.2/8.6*12/20 | 104/108 | ||
| 72" | 1800 | 7.0 | 120 | 24*10/9.4*12/20 | 120 | ||
| 80" | 2000 | 8.0 | 128 | 24*10.4/9.6*15/20 | 128 | ||
| 88" | 2200 | 8.5 | 132/136 | 24*11.5/10.5*15/20 | 132/136 | ||
| 100" | 2500 | 9.5 | 140 | 24*12.5/11.5*11.5/20 | 140 | ||
| 120" | 3000 | 10.0 | 160 | 24*13/12*20/30 | 160 | ||
| 140" | 3500 | 10.0 | 180 | 24*13.5/12.5*30 | 180 | ||
| Other special specification could be available upon request | |||||||

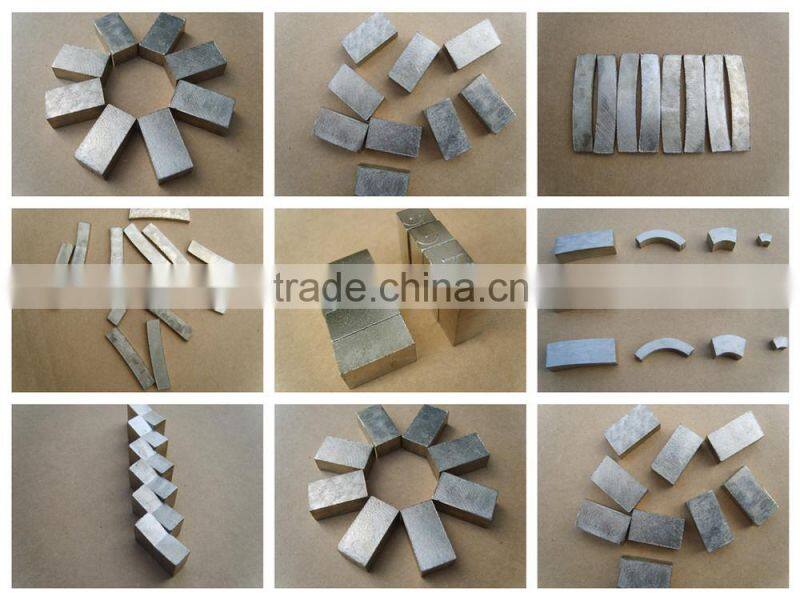

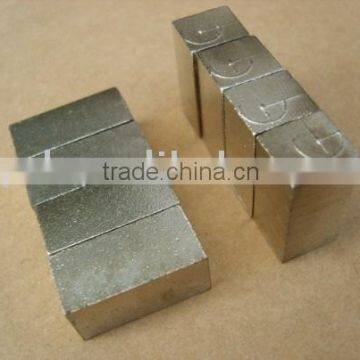

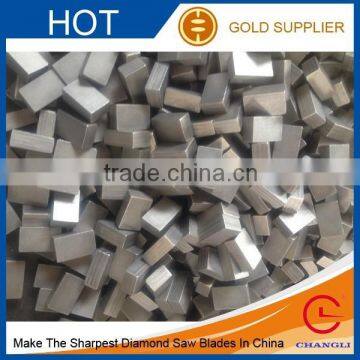

segments pictures:
segments production:
China supplier provide diamond segment for marble and granite cutting
Packaging: box, cartoon, wooden-case etc.
Shipping:
1.Send by Fast Express if sample or urgent order with light weight.The freight is highest,the delivery time is 3-7days.
2.Send by Air if the weight is between 50kg to 100kg.The freight is middle,the delivery time is 7-14days.
3.Send by Sea if the weight is more than 100kg.The freight is lowest,the delivery time is 10-25days
