Help CenterSteel Coil Cutting Machine
Related Products
Specifications
steel coil cutting machine1.Thickness:0.13-1.20mm
2.Width:600-1250mm
3.Zinc coating:60-275gsm
steel coil cutting machine
Technical specification for the hotdip galvanized :
Thickness available |
0.130mm to 1.20mm |
Width available |
from 70mm to 1250mm |
Zinc coating |
30-180 g/sqm on both sides (depending by the requested specification); |
Tensile strength |
over 30kg/mm² |
Tolerance |
over 10% |
Shaped steel forming channels |
C and U-shaped |
Can be used |
in building material field, galvanized (Depending on their usage, the hot-dip galvanized coil can be delivered slightly oil) |
Coil ID |
508/610MM |
Coil OD |
900-1500MM |
Coil Weight |
4-6MT |
Steel grade |
DX51D+Z,CS,SGCC,01 |
The detailed information:
| Commodity | Hot dipped galvanized steel coil /sheet |
| Techinical Standard: | JIS 3302 / ASTM A653 / EN10143 |
| Grade | DX51D / DX52D/ DX53D/ S250,280,320GD |
| Types: | Commercial / Drawing / Deep Drawing / Structural quality |
| Width | 500/650/726/820/914/1000/1200/1219/1220/1250mm |
| Thickness | 0.12-2.5mm (0.14-0.5mm is the most advantage thickness) |
| Type of coating: | galvanized |
| Zinc coating | Z60-275g/m2 |
| Surface treament | chromed / skinpass/ oiled/slightly oiled/ dry/ anti-fingerprint |
| Surface structure: | zero spangle / minimized spangle / regular spangle/ big spangle |
| ID coil | 508mm or 610mm |
| Coil weight | 3-8 MT per coil |

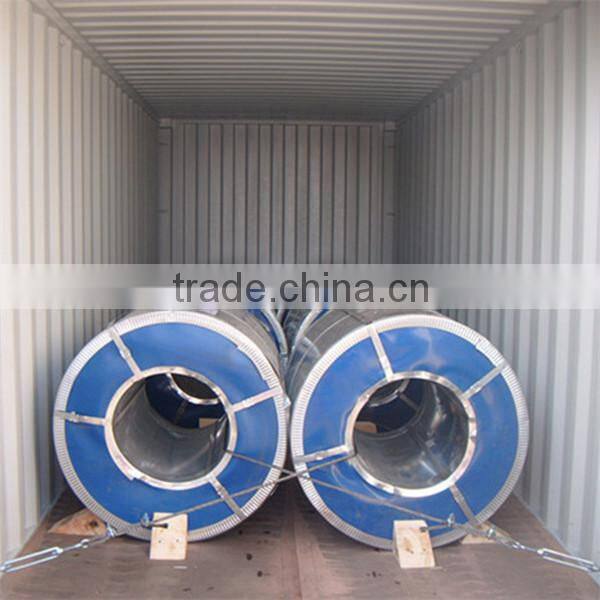

| Package: | Properly packed for ocean freight exportation in 20''containers |
| Application: | Industrial panels, roofing and siding for painting |
| Price terms | FOB,CFR,CIF |
| Payment terms | 30%TT in advance+70% TT or irrevocable 70%L/C at sight |
| delivery time | 25 days after recepit of 30% TT |
| Remarks | Insurance is all risks |
| MTC will be handed on with shipping documents | |
| We accept the third party certificatation test |
Technical data of hot dipped galvanized coil
Chemical Composition | ||||||
GRADE |
C |
Si |
Mn |
P |
S |
Ti |
SGCC/DX51D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
DX52D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
SGCD/DX53D+Z |
≤0.10 |
≤0.30 |
≤0.50 |
≤0.05 |
≤0.030 |
≤0.020 |
SGCE/DX54D+Z |
≤0.10 |
≤0.30 |
≤0.30 |
≤0.03 |
≤0.020 |
≤0.020 |
DX56D+Z |
≤0.10 |
≤0.30 |
≤0.30 |
≤0.03 |
≤0.020 |
≤0.020 |
Structural |
≤0.20 |
≤0.60 |
≤1.70 |
≤0.10 |
≤0.045 |
|
hot dipped galvanized steel coil Mechanical Properties | ||||||
GRADE |
Yield Strength MPa |
Tensile Strength MPa |
Elongation % |
|||
SGCC(DX51D+Z) |
≥205 |
≥270 |
- |
|||
SGCD(DX53D+Z) |
- |
≥270 |
38 |
|||
SGCE(DX54D+Z) |
- |
≥270 |
40 |
|||
DX56D+Z |
- |
≥270 |
42 |
|||
Advantages of Our Company:
1.We had already passed the authentification by the ISO9001 and established a completed set of quality assurace system.
2.Under such a complete set of quality assurance systems,there is a complete set of regulations for ordering,order handing,quality design,purchasing raw materials,working on production plan, prodction,test and inspection,packaging,storage,delivering,etc.
3.The PC-based production and marketing system not only improves the working efficiency but also ensres the quality of product.
4.Our PPGI lines are equipped with a large amount of online test instruments so that they can ensure and improve the quality of product.
