Home > Construction & Decoration > Decoration Materials > Sandwich Panel > 6x6Concrete Reinforced Welded Mesh Panel Concrete Welded Wire Mesh Panels

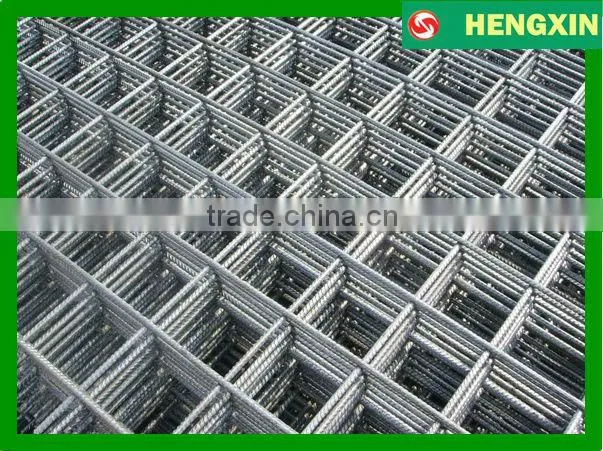

6x6Concrete Reinforced Welded Mesh Panel Concrete Welded Wire Mesh Panels

US$ 0.1 - 0.32 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Model Number:

Construction welded mesh panel

Contact Supplier Request Quote Chat Now

Anping County Hengxin Metal Wire Mesh Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

XINGANG

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name HX

Model Number Construction welded mesh panel

Material Steel

Specifications

6x6Concrete Reinforcing welded wire mesh panel
Material:Low carbon steel wire
Wire Dia.BWG16-8
QC:CCIC

6x6 Concrete Reinforcement welded wire mesh panel Concrete welded wire mesh panels

Description:
1. Reinforcing Mesh Panel also named Welded Steel Bar panel or Heavy welded wire mesh panel.
2. Wire diameter of Weded Steel Bar Panel: 5mm -16mm
3. The opening of Welded Steel Bar Panel: 75mm-300mm
4. Reinforcing Mesh Panel length: 1m - 12m
5. Reinforcing Mesh Panel width: 100cm-240cm
6. Reinforcing Mesh Panel, Wire profile: Smooth profile, or ribbed profiile.
7. Reinforcing Mesh Panel, type of material: Q235
8. Reinforcing Mesh Panel Standard size: 2.4m x 6m

This ribbed profile creates improves bonding to concreter, which when compared to smooth wire profiles, minimzes any concrete cracking that may occure as a result of concrete shrinkage.

Usage, Reinforcing Mesh Panel widely used in building reinforce, for example tunnel, bridge, highway, Air station, also used in building wall.

For more information, pls do not hesitate to ask us.

Specification as follow:

	Mesh	Mesh Size Nominal Pitch of wire		Wire Sizes		Cross Sectional area/m width		Nominal mass/m 2
	Ref No.	Main mm	Cross mm	Main mm	Cross mm	Main mm	Cross mm	Kg	Supplied in
Square Mesh	888	200	200	12	12	566	566	8.88	Sheets only 6m x 2.4m
	746	200	200	11	11	475	475	7.46
	617	200	200	10	10	393	393	6.17
	500	200	200	9	9	318	318	5.00
	395	200	200	8	8	251	251	3.95
	311	200	200	7.1	7.1	198	198	3.11
	245	200	200	6.3	6.3	156	156	2.45
	193	200	200	5.6	5.6	123	123	1.93	Sheets or rolls
	100	200	200	4	4	63	63	1.00	Sheets or rolls
Design Mesh	1085	100	200	12	8	1131	251	10.85	Sheets only 6m x 2.4m
	943	100	200	11	8	951	251	9.43
	772	100	200	10	7.1	786	198	7.72
	655	100	200	9	7.1	636	198	6.55
	517	100	200	8	6.3	503	156	5.17
	433	100	200	7.1	6.3	396	156	4.33
	341	100	200	6.3	5.6	312	123	3.41
	289	100	20	5.6	5.6	246	123	2.89
Longitudinal Mesh	278	100	300	6.3	4	312	42	2.78	Sheets only 6m x 2.4m
	226	100	300	5.6	4	246	42	2.26	Sheets only 6m x 2.4m
	133	100	300	4	4	126	42	1.33	Sheets or rolls 60m x 2.4m
Special Mesh	200	100	100	4	4	126	126	2.00
Special Mesh	156	100	100	3.55	3.55	99	99	1.56
