Polypropylene Nonwoven Geotextile Polyester Geotextile
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Chensheng | |
| Model Number | XX-GEO | Geotextile Type | Non-Woven Geotextiles |
Product Description
polypropylene nonwoven geotextile polyester geotextile
Geotextile Description

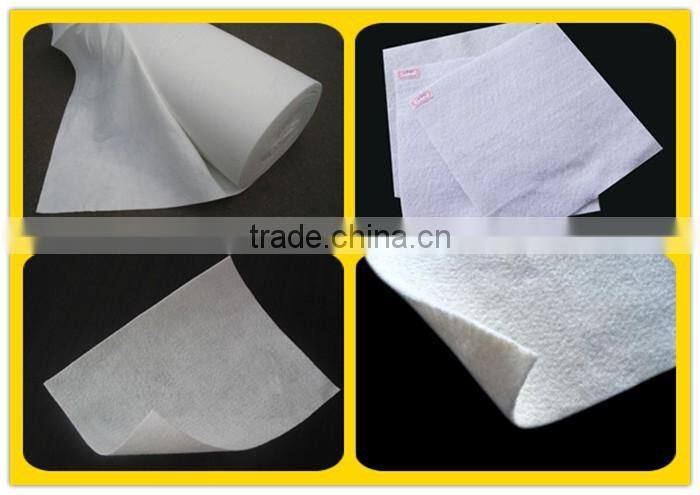

Geotextile is a non-woven product manufactured by combinining synthetic short yarns mechanically by using needling method. Non-woven geotextile has no woof and warp. Strength is achieved by combining yarns and applying thermal process. Geotextile felt is a permeable textile product which can be used with basic elements or with any material related with soil, running ground or geotechnic engineering.
Usage Areas

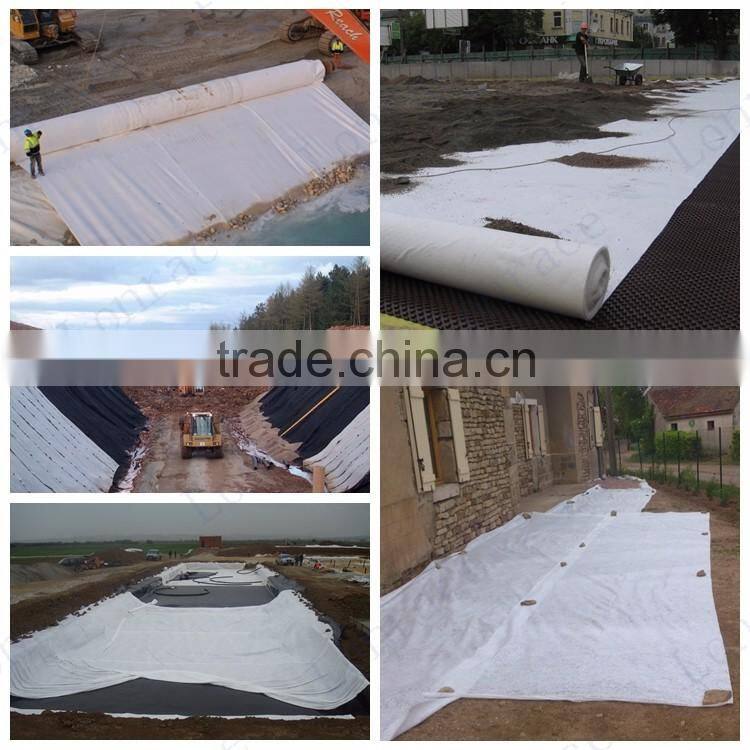

Used in motorways, sport facilities, tunnels and underground facilities, art buildings, underground, agricultural areas, garden terraces, airports, mining fields, railways, solid waste storage areas, irrigation channels and reservoirs, shore protection and isolationareas; as a reinforcementagainst cracks between insulation layers; as a separator between waterproofing and thermal insulation layers; to protect insulation; to drain excess water; to prevent drainage pipes from plugging by wrapping them around; to avoid sinking and in many other applications.
Standards :GB/T17639-1998
Test | Standart | Unit | Teknik 1500 | Teknik 2000 | Teknik 2500 | Teknik 3000 | Teknik 3500 | Teknik 4000 | Teknik 5000 |
Weight | TS EN ISO 9864 | gr/m² | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
Thickness (at 2 kPa) | TS EN ISO 9863-1 | mm | 1,2 | 1,4 | 1,7 | 1,9 | 2,2 | 2,5 | 3,2 |
Tensile Strength (MD - CMD) | TS EN ISO 10319 | kN/m | 3 | 5 | 7 | 9 | 11 | 13 | 17 |
4 | 7 | 9 | 11 | 13 | 15 | 19 | |||
Elongation at break | TS EN ISO 10319 | % | 50-80 | ||||||
Static Puncture Test | TS EN ISO 12236 | N | 800 | 1200 | 1500 | 1800 | 2000 | 2200 | 3000 |
Dynamic Puncture Test | TS EN ISO 13433 | mm | 35 | 30 | 28 | 26 | 24 | 22 | 16 |
Permeability | TS EN ISO 11058 | l/m²s m/s | 110 0,110 | 100 0,100 | 90 0,090 | 80 0,080 | 70 0,070 | 60 0,060 | 40 0,040 |
Apparent Opening Size | TS EN ISO 12956 | mm | 0.16 | 0.15 | 0.14 | 0.13 | 0.13 | 0.12 | 0.11 |
Test | Standart | Unit | Geo Teknik 1500 | Geo Teknik 2000 | Geo Teknik 2500 | Geo Teknik 3000 | Geo Teknik 3500 | Geo Teknik 4000 | Geo Teknik 5000 |
Weight | TS EN ISO 9864 | gr/m² | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
Thickness (at 2 kPa) | TS EN ISO 9863-1 | mm | 1,3 | 1,5 | 1,8 | 2,0 | 2,3 | 2,6 | 3,3 |
Tensile Strength (MD - CMD) | TS EN ISO 10319 | kN/m | 6 | 8 | 11 | 13 | 17 | 19 | 23 |
7 | 10 | 13 | 15 | 19 | 21 | 25 | |||
Elongation at break | TS EN ISO 10319 | % | 50-80 | ||||||
Static Puncture Test | TS EN ISO 12236 | N | 1200 | 1700 | 2200 | 2700 | 3200 | 3500 | 4300 |
Dynamic Puncture Test | TS EN ISO 13433 | mm | 28 | 26 | 24 | 16 | 12 | 8 | 4 |
Permeability | TS EN ISO 11058 | l/m²s m/s | 110 0,110 | 100 0,100 | 90 0,090 | 80 0,080 | 70 0,070 | 60 0,060 | 40 0,040 |
Apparent Opening Size | TS EN ISO 12956 | mm | 0.14 | 0.13 | 0.13 | 0.12 | 0.12 | 0.11 | 0.10 |

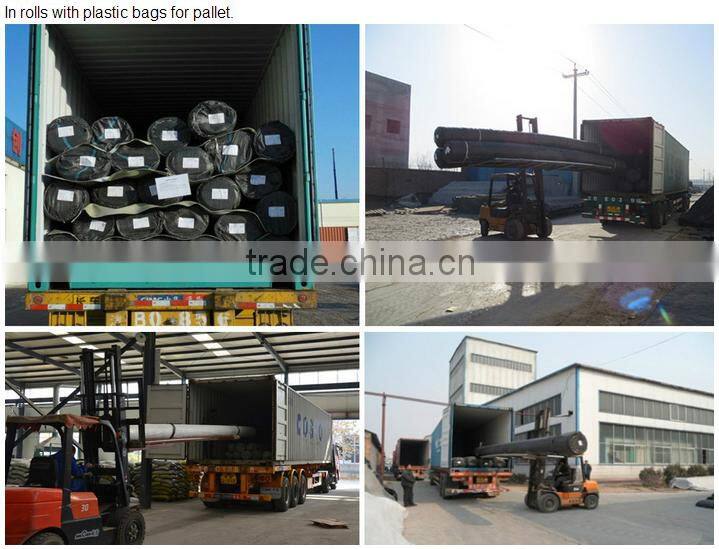

packing and shipping
Company Information
Xuxin Waterproof Materials CO.,Ltd is one specialized supplier on waterproof materials.Products got the approval of ISO9001 certificate, ISO14001 certificate. And some products can meet American ASTM and CE international standards.As a public company, we mainly supply SBS/APP modified bitumen waterproof membrane, Seladhesive bitumen membrane/tape,PE/PVC/EPDM/TPO/HDPE Waterproof Membrane, PP non-woven fabric,Waterproof Coating, Drainage Board, Geotextile,Color sand and etc.
Our Service
1.Sample: The sample is free,you only should pay for the express freight.
2.If you order to us, we promise the quality, if some quality problem happened,then
1)We will dispatch our Quality and Problems Appraisers to make a confirmation.
2)Have a negotiation of the compensation and sign agreements.
3)Our After-Sales Department will perform the duties as the agreements.
