XQL3015 Raycus 750w 1000w 2kw Optical fiber laser cutting machine price
Advantage of Fiber laser cutting machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.
Machine Technical Parameters
Items |
Manufactures |
Advantages |
Laser cutting control system |
SHANGHAI Cypcut |
The most professional and the most widely used laser cutting system in China |
X,Y,Z Axis Servo Motor |
Japan YASKAWA Servo Motor |
It is the best quality in Japanese servo system and it has high precision, stability and long service life . |
X, Y Axis Speed Reducer |
Taiwan SHIXIE Speed Reducer(P0 ultra precision stage) |
2 arc minutes ultra high precision, high hardness of the helical gear reducer, quiet, long life |
X, Y Axis Helical Gear Rack |
Taiwan KAIHE Rack |
High precision,the error is less than 0.02mm/M, high hardness, 50HRC |
Laser Generator |
Raycus Fiber Laser Generator |
Life is more than 100 thousand hours, it is safe and efficient |
Laser cutting head |
PRECITEC laser cutting head |
Stable, long life, easy replacement of loss parts, simple focusing |
Stroke switch |
Japan OMRON |
Long life, it can switch more than 1000000 times without damaging |
Z axis Ball Screw |
TAIWAN TBI |
Grinding grade wire rod, high precision and high speed operation stability |
Cooling circulation |
2P laser special Chiller |
Specially designed for laser cutting machine by XINQUANLI, cooling effect is good, stable, long life |
Working Area |
1500X3000mm |
Suitable for standards metal sheets |
Lathe and crossbeam |
A3 steel material, die steel,thickness 15mm |
48 hours long aging annealing, remove the effect of thermal stress on the lathe |
High frequency electromagnetic valve |
Imported high pressure low temperature special valve from Korea-SYM |
Imported high pressure high volume electromagnetic valve, it can switch more than 1000000 times without damaging and 5ms high speed response |
Inverter speed exchange platform |
Independent research exchange platform |
Up to 20 seconds to finish the exchange platform,frequency operation structure is fast,efficient and stable |
Exchange platform control |
PLC Japan's Mitsubishi |
Industrial PLC has stable performance and long life, it is easy for redevelopment. |
Power supply |
Chint Electric |
It provides stable voltage for the laser generator and equipment to improve the whole electrical service life. |
Automatic Proportional valve |
SMC(Japan)/AVENTICS(Germany) |
Imported high-pressure hypothermia proportional valve, the highest pressure is 3MPA , gas throughput is 3 cubic meters / min, high and low voltage switching is stable,cutting mouth is more stable |

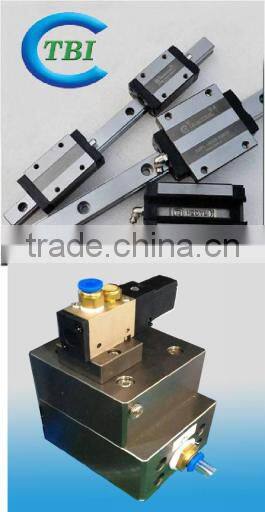

Key import parts show
.Pneumatic components are from Japan SMC,Korea SYM and Taiwan AirTAC.The machine will not be damaged when high pressure, low temperature, long time and high frequency operation.Automatic switching of nitrogen, oxygen, air, save time, improve efficiency.
.Taiwan imported SESAME flange plate output speed reducer, which is high precision grinding helical gear structure, low backlash, low noise, high efficiency, long life. Up to P0 level of accuracy for laser cutting machine to provide more long-term precision mechanical properties.
Drive system |
YASKAWA Servo motor x-1300w Y-1300w z-400w(800w machine) 500w machine with 850w servo motor z-400w |
The special custom cooling water tank is designed for the particularity of the fiber laser source,compared with the general industrial water tank,the cooling effect is better,stable performance,low power consumption and long life.
Parameters
Model |
XQL3015 |
Laser generator |
Raycus brand 750w fiber laser generator |
Max. cutting diameter |
120mm-500mm |
Cutting thickness |
0.2mm-10mm mild steel/ 0.2-4mm stainless steel |
Laser wavelength |
1080nm |
Rated power |
10-100% |
Water chiller |
2P air-conditioner |
X, Y-axis fast moving speed |
60M/min |
Min cutting line width |
0.02mm |
Max. cutting speed |
30M/min |

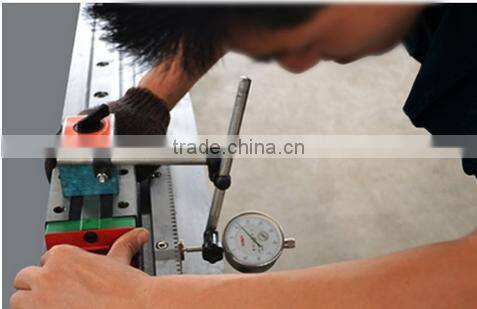

Quality Control for Fiber Laser Cutting Machine

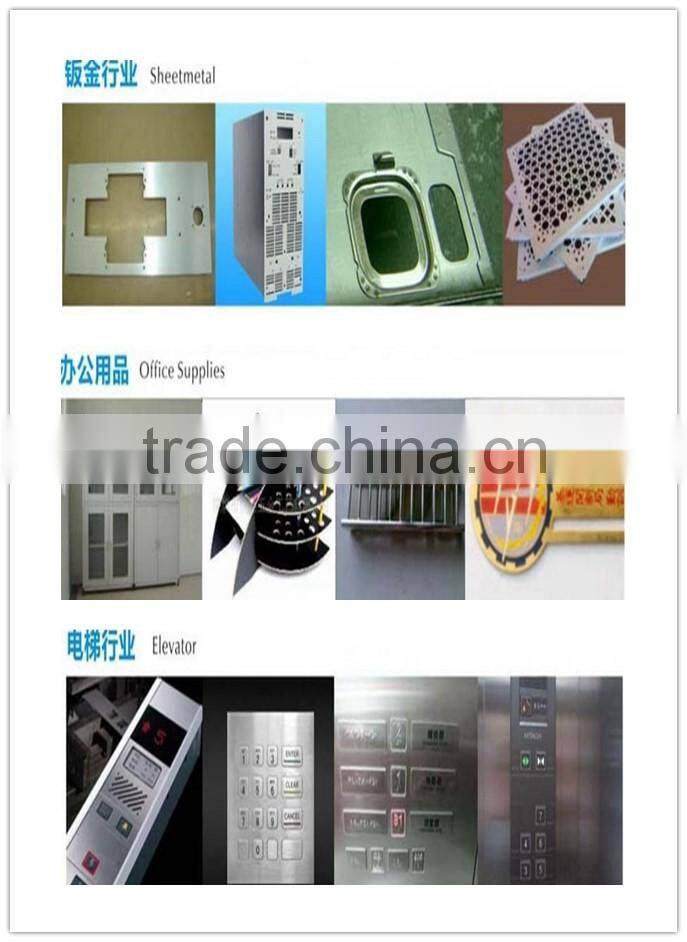

Application
sample
0.2mm gap 0.2mm square gears cutting ,fiber laser can marking not cut through .
Attention: , cutting 400 pieces hole/60s ,diameter:2mm

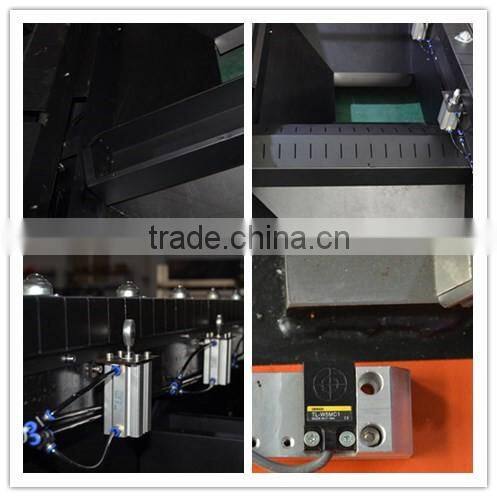

Detailed parts
Service after sales
A. Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype…. for fast solution. We can offer technician go to customer's site for oversea service, customer shall cover visa, ticket, local living cost.
B. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance.
During training in our workshop, we offer free training for 7 days.
FAQ
1-Does this machine pass CE certificate?
-Yes, .
2-How long time about machine warranty?
-Two years for laser generator .
Contact: Helen
Tel: +86 0757-23619000
Cell: +86 18038789856( whatsapp wechat)
Skype: helenyue18
QQ: 361865376
