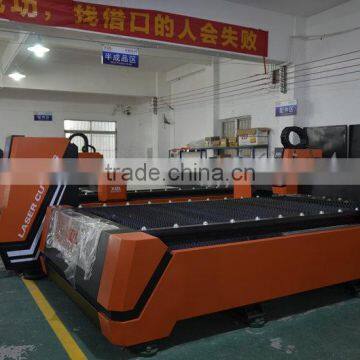

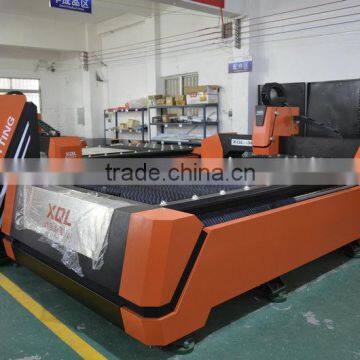

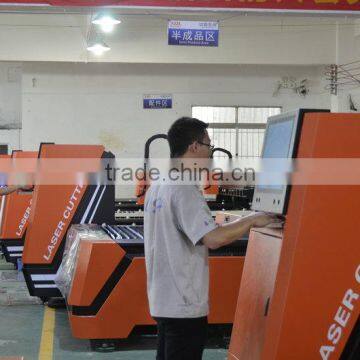

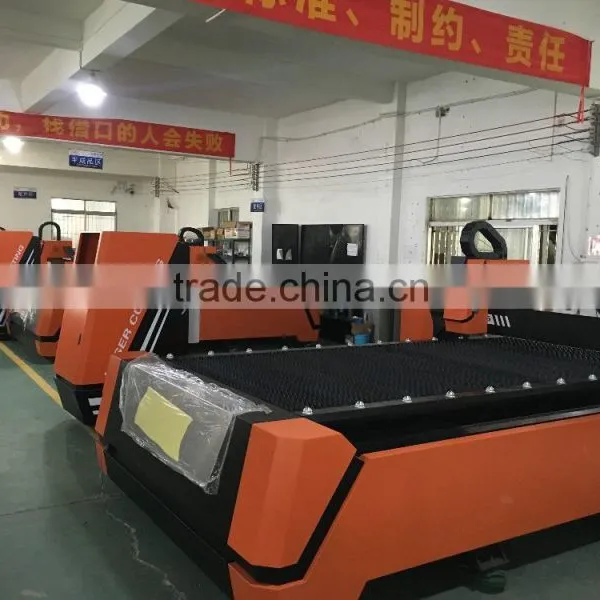

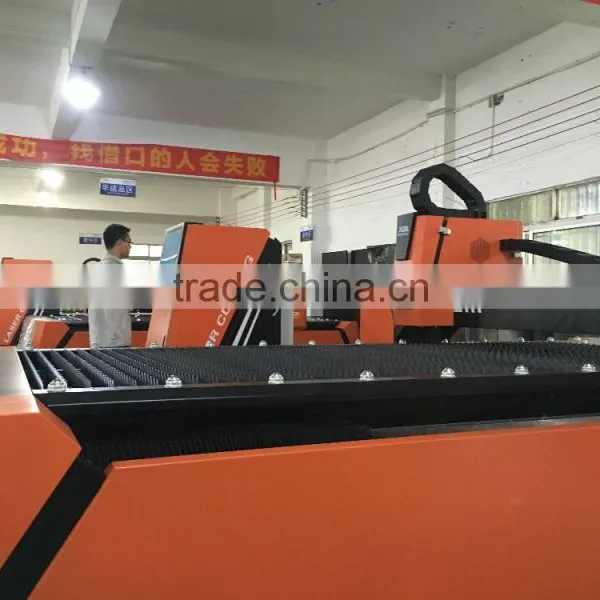

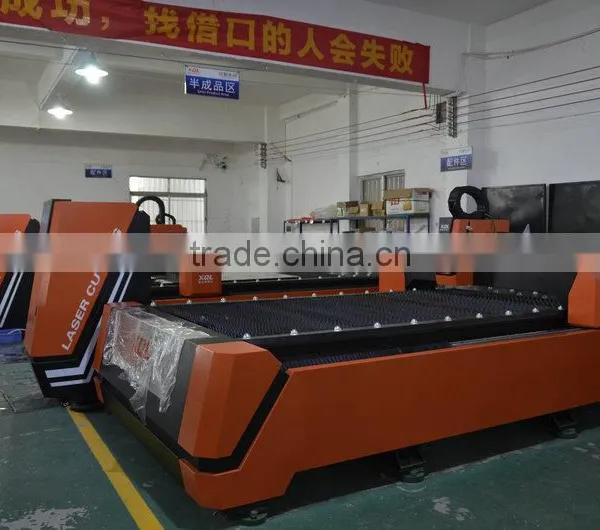

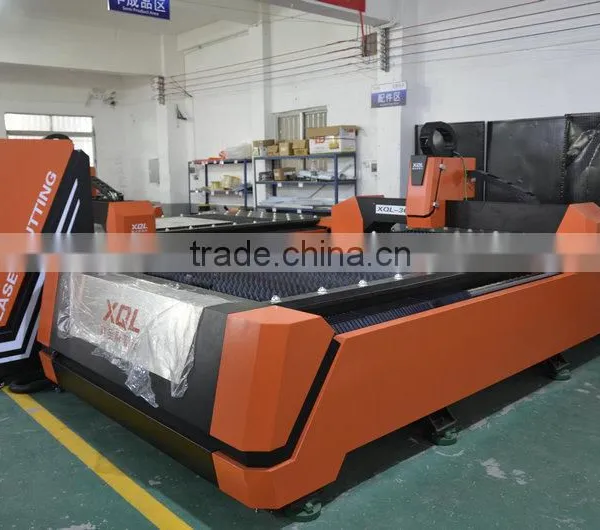

Hot sale big discount for distributor fiber laser cutting machine for stainless steel and carbon steel brass aluminum

FOB Price

USD $58000.00 - $62000.00 / Set

1 Set(Min.Order)

Supply Ability 2 Set / Sets per Month
Port Guangzhou
Payment Terms:T/T L/C Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Laser Type:	Fiber Laser	Applicable Material:	Metal
Cutting Thickness:	max 6mm mild steel	Cutting Area:	1500*3000mm	Cutting Speed:	0-40000mm/min
CNC or Not:	Yes	Cooling Mode:	Water Cooling	Control Software:	Cypcut
Graphic Format Supported:	AI, BMP, DST, DXF	Place of Origin:	China	Brand Name:	XQL laser
Model Number:	XQL-3015	Certification:	CE, ISO, SGS	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Hot sale big discount for distributor fiber laser cutting machine for stainless steel and carbon steel brass aluminum

Machine Technical Parameters

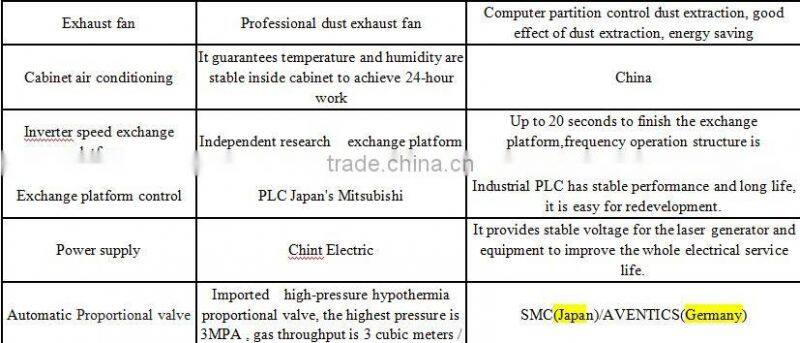

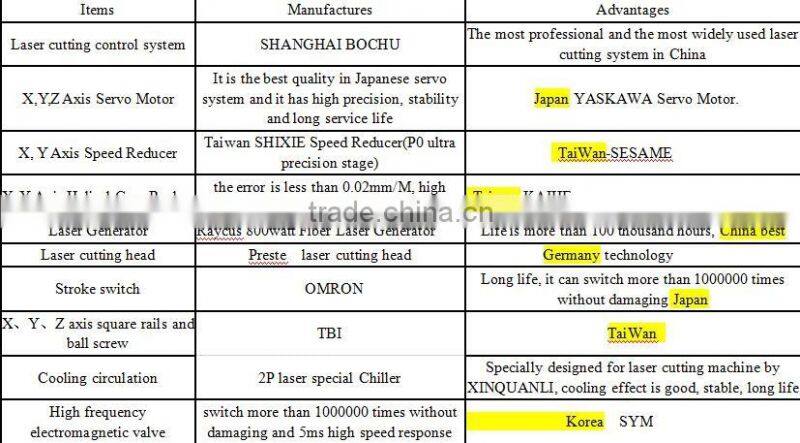

Key import parts show

.Pneumatic components are from Japan SMC,Korea SYM and Taiwan AirTAC..Automatic switching of nitrogen, oxygen, air, save time, improve efficiency.

.Taiwan imported SESAME flange plate output speed reducer,

Parameters

Model	XQL-1530
Laser power	500Watt		750Watt
Maximum cutting area	1500*3000mm
working speed	0-40m/min		0-60m/min
max move speed	85m/min		120m/min
Positioning accuracy	<0.02mm
The width of line	0.1-0.2mm
Max acceleration	1G
Drive system	YASKAWA Servo motor x-1300w Y-1300w z-400w(800w machine) 500w machine with 850w servo motor z-400w
Machine Power	≤6KW	≤8KW		≤10KW
Power Supply	220V±10%/50Hz/40A
Working size	5000*2500mm		8000*2500mm
Motion Control System	Shanghai Cypcus control software and automatic height- adjuster
Support software	CAD , Corel Draw, Solid works
Cutting ability	SS:3mm Mild steel:6mm		SS:4mm Mild steel:10mm
Ventilation dust removal	With the running ventilation		Zoned ventilation
Machine bed	A3 steel material 20X20CM square tube, thickness:10mm
Lathe bed treat	600℃ heat treatment, 24 hours cooling in the oven, to make sure 20 years' running
Laser cutting head	PRESTE D12-H(most of parts are imported from Germany)
Package weight	4500kgs		6500kgs
Package size	4400x2800x1500mm=19m3 only machine
Consumable parts	Protecting lens:25USD/one nozzle:10USD/one different size

Related products :please click the product as below

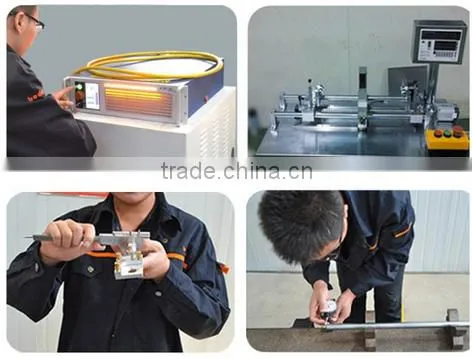

Quality Control for Fiber Laser Cutting Machine

sample

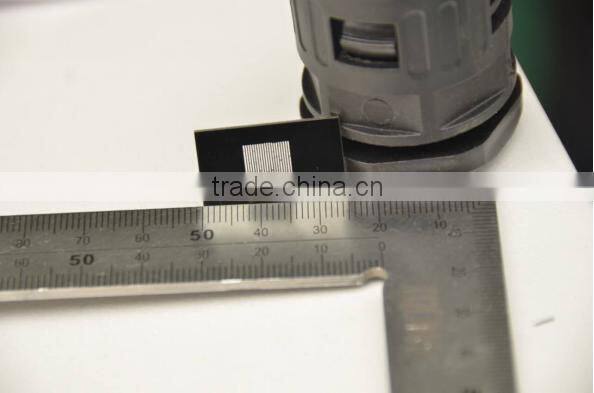

0.2mm gap 0.2mm square gears cutting ,fiber laser can marking not cut through .

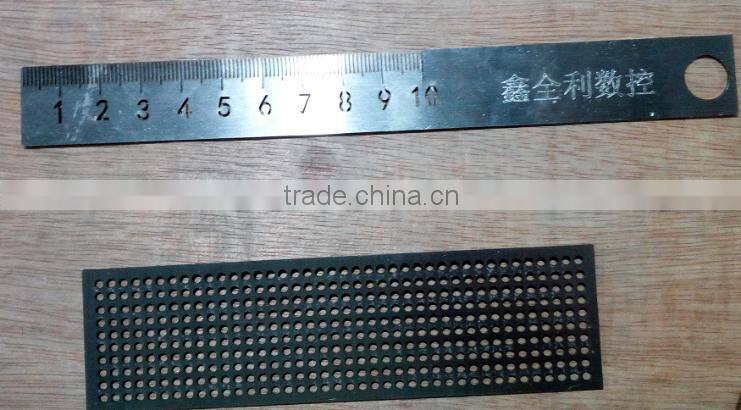

Attention: , cutting 400 pieces hole/60s ,diameter:2mm

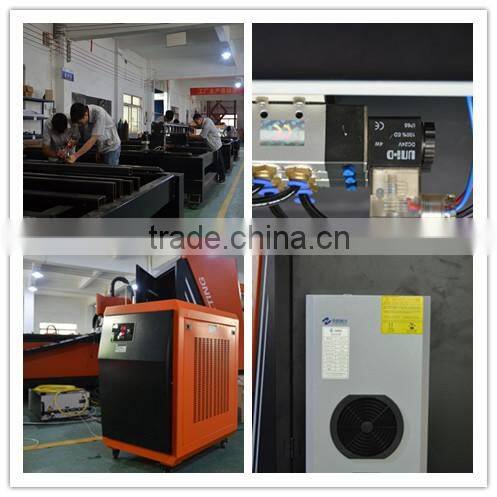

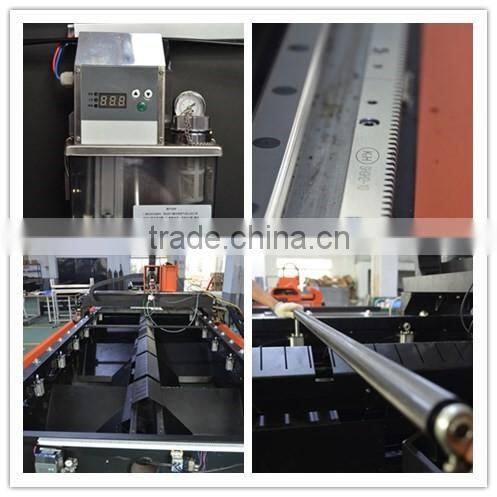

Detailed parts

Company information

FAQ

1-Does this machine pass CE certificate?
-Yes, this machine passed European CE certificate and meet Safety Standard.

2-How long time about machine warranty?
-Two years.

3-Do you have agent or distributor in our country?
-There are so many end-users in your country, and just we are looking for agent in your country, do you have any interest?
