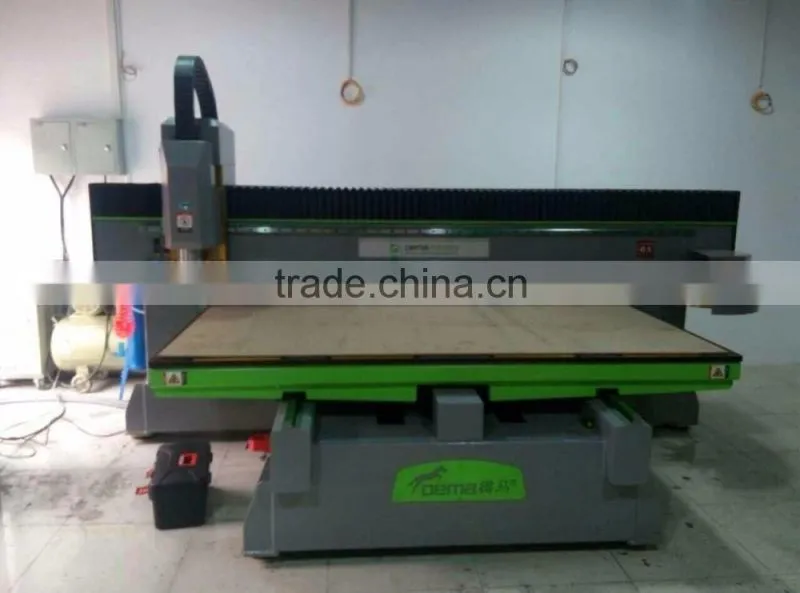

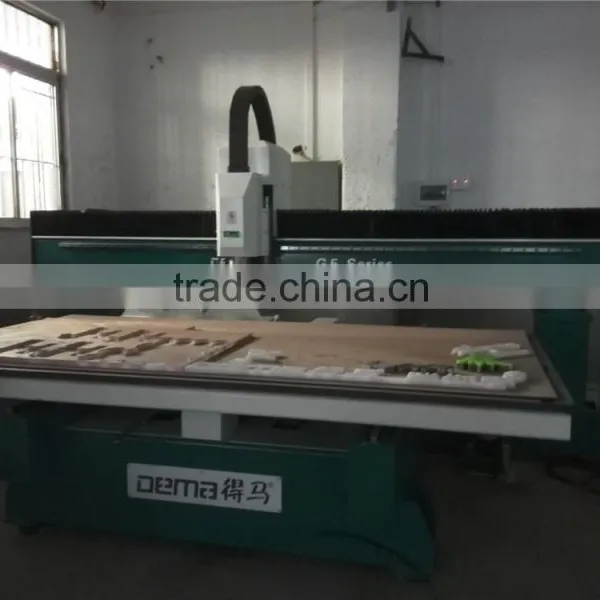

Help Center2016 Popular 3D Acrylic Word Woodworking Best CNC Router Cutting Machine Factory Price With Y Table Moving
Related Products
-
Cheap CNC Router Machine Price For AluminumUS$ 27,000 - 35,000MOQ: 1 Set -
New Model G5 Mini Word CNC Acrylic Engraving Machine With PriceUS$ 27,000 - 35,000MOQ: 1 Set
-
High Precision Used Atc Wood/ Metal Cnc RoutersUS$ 27,000 - 35,000MOQ: 1 Set
-
High Quality 3d Cnc Router Machine Equipment for AluminumUS$ 12,000 - 24,000MOQ: 1 Set
-
Multi Spindle Wood Carving Cnc Router With Vacuum PumpUS$ 27,000 - 35,000MOQ: 1 Set
- A heavy processing center, is suitable for machining of gravity.
- Using integral plate welded structure, forming one-time finish after aging treatment after forming.
- The machine adopts unique mobile mesa structure, improve the machining precision of the machine tool and vibration resistance.
- Mesa for aluminum alloy bar clamping mesa, optional vacuum adsorption, as well as strong adsorption material of different area, and the clamping, very convenient.
- Imported material, high flexible cable, can guarantee in the operation of the machine tool in repeatedly over a long period of time, not easy to be broken.
- Equipped with mature macro control system operation to ensure high speed machine tool case, fine without sawtooth wave, bottom surface is smooth, clear outline.

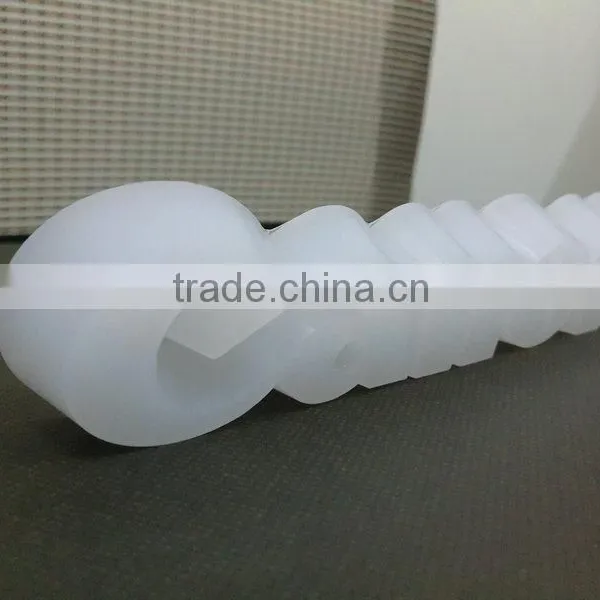

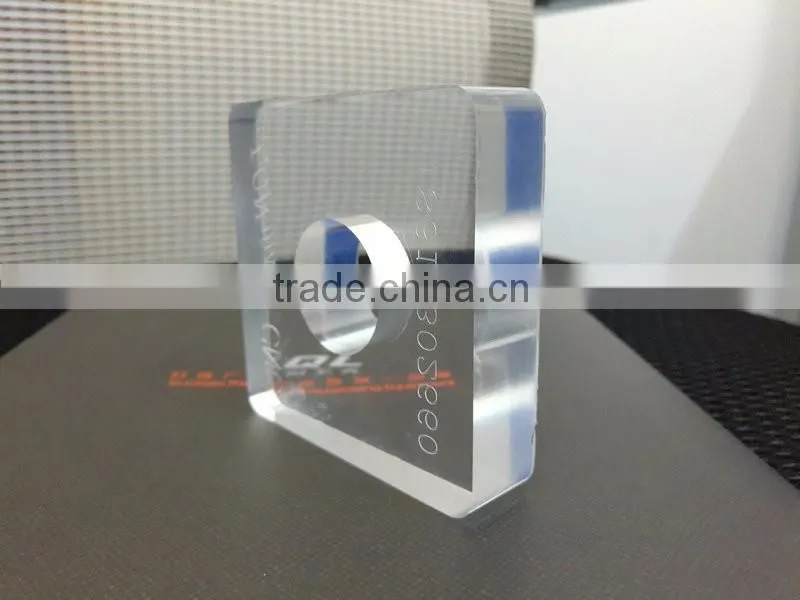

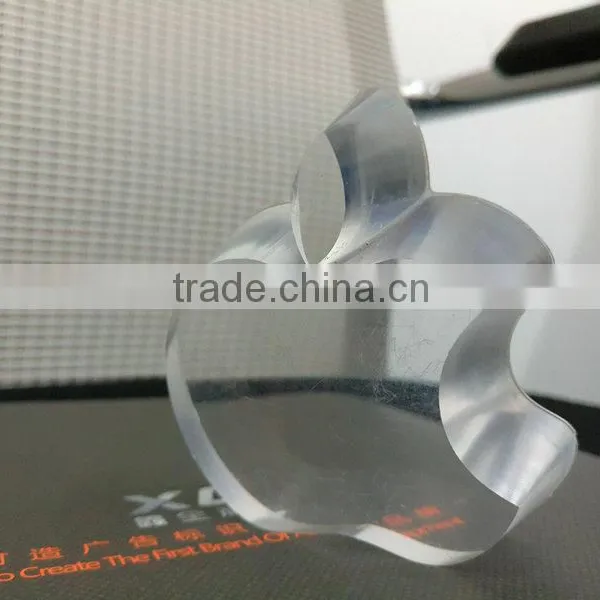

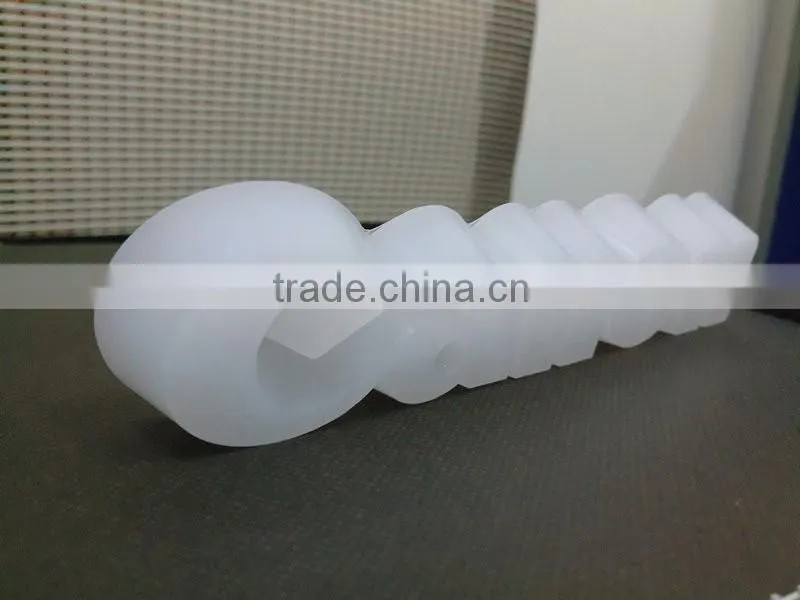

- No need polish the acrylic after cutting ,because it has so higher precision which is tested by old UK customer
Parameters
| Name | QL-1325 G5 carving machine |
| Size | 3750mm*2400mm*1900mm |
| Working area | 1300mm*2500mm |

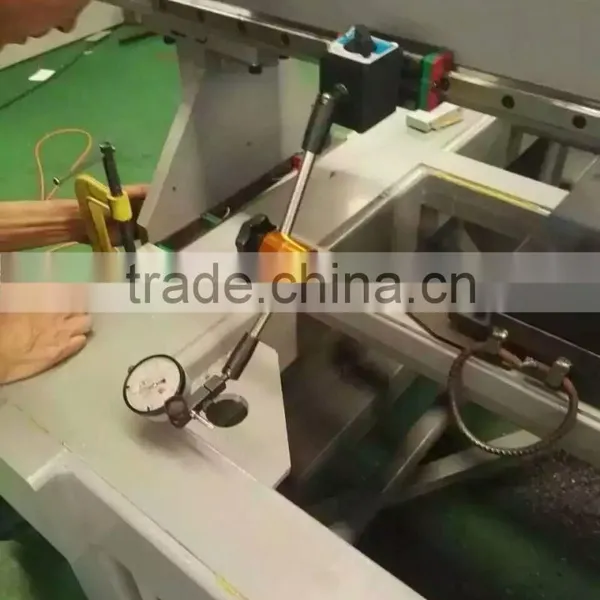

| Repeated positioning accuracy | ±0.02 |
| Guide rail | Imported linear guide |
| Transmission | Ball Screw on X/Y/Z axis |
| Table structure | Regional vacuum adsorption |
| Spindle power | 5.5kw water-cooling spindle |
| Tool changing system | ATC |
| Spindle rotating speed | 24000 rpm |
| Rapid traverse speed | 30m/min |
| Max. working speed | 15m/min |
| Drive system | Imported servo drive |
| Working Voltage | 3PH/AC 380V/50Hz |
| Operation system | D macro online/D macro lever |
| Control cabinet | independent control cabinet |
| The whole power | 15KW |
| Material thickness | 2mm-50mm |
1. Engineer available to serve machinery overseas
3. 12months warranty.
We can offer one stop advertising equipment.
If you like laser mix cutting 320w please click laser cutting machine
More products, pls click products categories.
Please let us know the follow information when enquiring:
Q: How about after-sales service?
A: 1. We can provide free training in our Foshan factory or Guangzhou office.
2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.
Q: How about the warranty?
A: One year warranty. Spare parts are not included. We suggest u buy some spare parts in stock.
Q: What should I do when I have some problems or questions?
A: Pls don’t hesitate to contact us via Skype, WhatsApp, Viber or email, we will reply u ASAP. If u are not satisfied with someone’s service, u can complain to our Boss.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.
Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries.
Guangzhou Quanli Digital Equipment Co., Ltd was established in October, 2005. We specialize in manufacture and distribution of advertising equipments.
Our main products include: plasma cutting machines, laser cutting machines, laser engraving machines, laser marking machines, CNC router machines, CNC marble and glass machines, laser sealing machines,laser welding machine,woodworking router machine,Membrane pressing machine etc.
About us
If you have any questions ,welcome to contact us:
TEL1: 400-030-8885
TEL2: 0757-23619585
Helen yue :008618038789856 whatsapp and wechat
