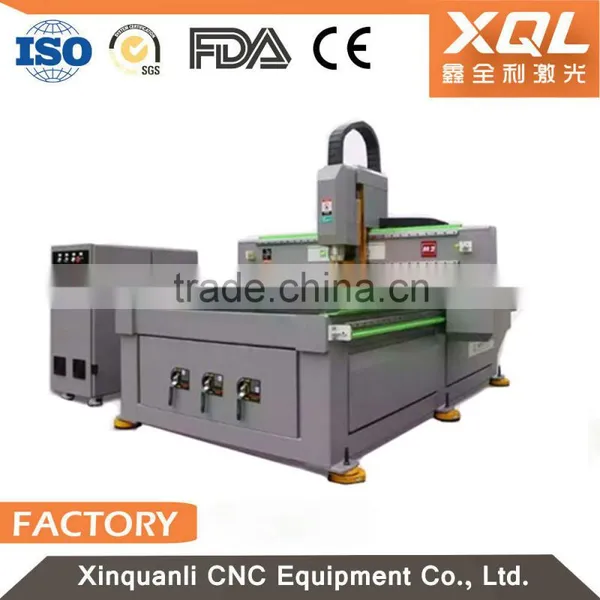

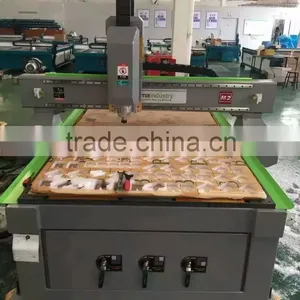

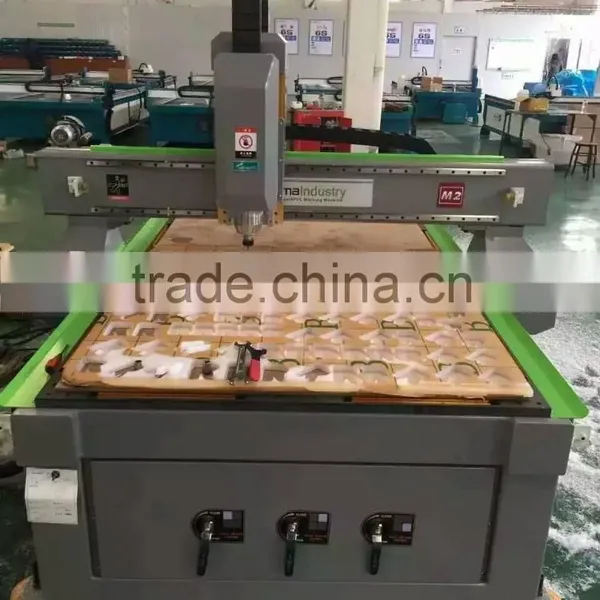

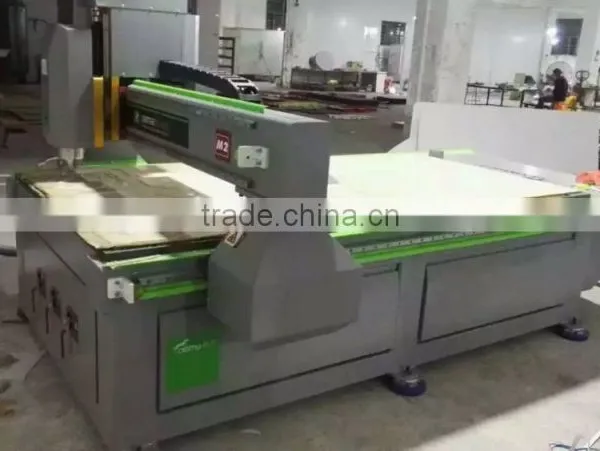

High quality 3d cnc router machine equipment for aluminum
- 100 Set / Sets per Month
- Guangzhou Shenzhen
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Guangdong, China |
Brand Name: | Quanli | Model Number: | QL-1325M2 | Voltage: | 3 phase/AC380V/50hz |
Power(W): | 4.5kw | Dimension(L*W*H): | 2000mm*3050mm*1900mm | Certification: | CE |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Characteristics
- A heavy processing center, is suitable for machining of gravity.
- Using integral plate welded structure, forming one-time finish after aging treatment after forming.
- The machine adopts unique mobile mesa structure, improve the machining precision of the machine tool and vibration resistance.
- Mesa for aluminum alloy bar clamping mesa, optional vacuum adsorption, as well as strong adsorption material of different area, and the clamping, very convenient.
- Imported material, high flexible cable, can guarantee in the operation of the machine tool in repeatedly over a long period of time, not easy to be broken.
- Equipped with mature macro control system operation to ensure high speed machine tool case, fine without sawtooth wave, bottom surface is smooth, clear outline.
Name | QL-1325 M2 carving machine |
Size | 2000mm*3050mm*1900mm |
Working area | 1300mm*2500mm |
Guide rail | Imported linear guide |
Transmission | Ball Screw on X/Y/Z axis |
Table structure | Regional vacuum adsorption |
Spindle power | 4.5kw water-cooling spindle |
Tool changing system | ATC |
Spindle rotating speed | 24000 rpm |
Rapid traverse speed | 30m/min |
Max. working speed | 15m/min |
Drive system | Imported servo drive |
Working Voltage | 3PH/AC 380V/50Hz |
Operation system | D macro online/D macro lever |
Control cabinet | independent control cabinet |
1. Engineer available to serve machinery overseas
3. 12months warranty.
Please let us know the follow information when enquiring:
Q: How about after-sales service?
A: 1. We can provide free training in our Foshan factory or Guangzhou office.
2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.
Q: How about the warranty?
A: One year warranty. Spare parts are not included. We suggest u buy some spare parts in stock.
Q: What should I do when I have some problems or questions?
A: Pls don’t hesitate to contact us via Skype, WhatsApp, Viber or email, we will reply u ASAP. If u are not satisfied with someone’s service, u can complain to our Boss.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.
Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries.
Guangzhou Quanli Digital Equipment Co., Ltd was established in October, 2005. We specialize in manufacture and distribution of advertising equipments.
Our main products include: plasma cutting machines, laser cutting machines, laser engraving machines, laser marking machines, CNC router machines, CNC marble and glass machines, laser sealing machines,laser welding machine,woodworking router machine,Membrane pressing machine etc.
