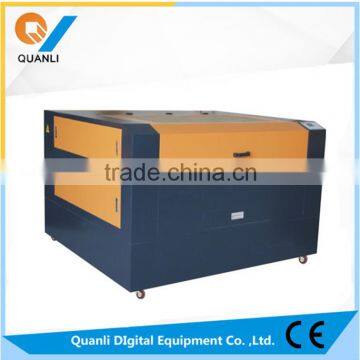

1325 CO2 Laser Machine Metal Cutting Price
- The best co2 laser tube in China, life is 10000 hours.
- Servo system for cutting metal: automatic induction of rough metal sheet surface and automatic focus adjustment to make sure the best cutting results
- Japanese Panasonic Servo motor
- High accuracy ball screw imported from Germany and PMI liner guide rail imported from Taiwan
- American power metal optical lens
- Industrial water chiller CW5200
- Powerful exhaust fume service
- Off-line color screen control panel, spare USB and internet access.
- support DXF, PLT, AL etc file format.
Advantages
- It can cut galvanized sheet.
- It can cut mirror surface stainless steel in front.
- If it cut 0.4mm sheet, it just need 0.2MPa oxygen;0.4MPa for 0.6mm sheet. It saves cost.
- Cutting speed for thin sheet is 5.4M/Min.
- Cutting edge is not black.
Suitable materials: stainless steel, carbon steel, galvanized sheet, acrylic, MDF.
150W Parameters
Model |
XQL-1325 |
Working area |
1300x2500 mm |
Laser power |
150W |
Positioning accuracy |
±0.05mm |
Positioning speed |
20000mm/min |
Gross Weight |
900KG |
Power supply |
220V ±10%/20A |
Overall dimensions |
3600×1900×1250 mm |
Packing size |
3800×2040×1450 mm |
Pictures
|
|
|
Light Path |
Germany high accuracy ball screw |
Amecia HM metal special servo system |
|
|
|
Japan Panasonic servo drive |
Taiwan TPI linear rail |
Automatic detection device |
|
|
|
The electric appliance box |
Color control panel |
Air meter |
|
|
|
Professional dust |
Large cutting platform |

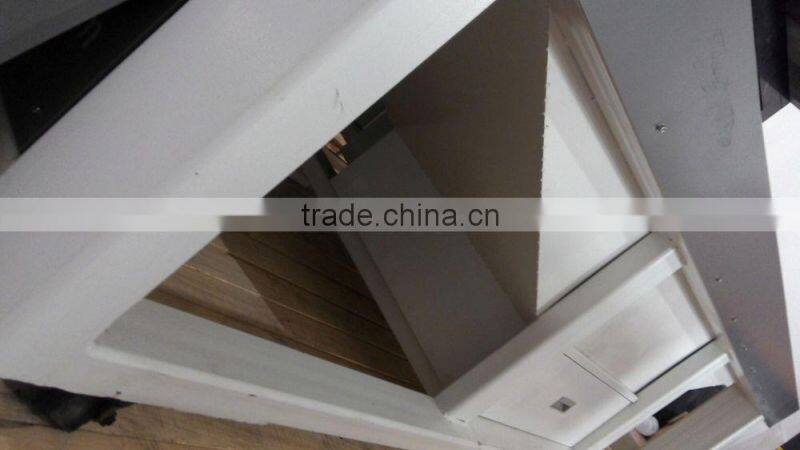

Heavy-duty industry fuselage |
Remarks:
One year warranty for whole machine ( not including spare parts)
Free training and after sales service, customers pay the charges of our engineer to your place.
T/T 30% for deposit, balance should be paid before shipment
Q: How about after-sales service?
A: 1. We can provide free training in our Foshan factory or Guangzhou office.
2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.
Q: How about the warranty?
A: One year warranty. Spare parts are not included. We suggest u buy some spare parts in stock.
Q: What should I do when I have some problems or questions?
A: Pls don’t hesitate to contact us via Skype, WhatsApp, Viber or email, we will reply u ASAP. If u are not satisfied with someone’s service, u can complain to our Boss.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.
Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries
1. Engineer available to serve machinery overseas
2. All the machines will be tested and adjusted as per requirements before shipping.
3. 12 months warranty.
If you have any need,Please contact me!
