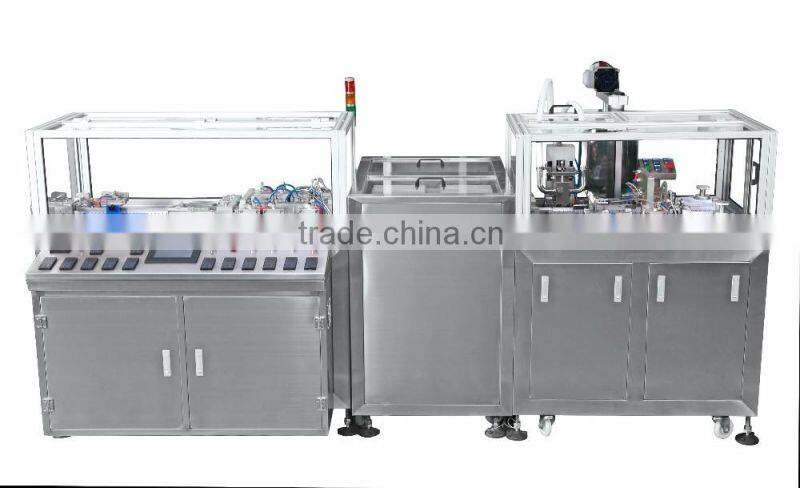

Suppositories production machine for pharmaceutical industry
Specifications
Main application:
The full-automatic suppositories production unit is a use of PLC do the whole control and use of pneumatic mode for the automatic production line source of power. This equipment combining foreign advanced technology and domestic actual situation, the design is novel, the operation is simple, is a highly efficient and stable production unit of automatic suppositories. Its leading position in domestic technical content. In the process of development, we need to consider the user everywhere, adjustable and accuracy can confirm the work, with different parameters, the equipment can mold production of different shapes and specifications of the suppositories can sue different packing material(PVC, PE, PVC/AL/PE Compound film),
eliminating unqualified products etc.
Working principle:
Rolls of Packing film (PVC PVC / PE, dual aluminum composite film) will be send to filling process after shell making, and the liquid medicine will be filling into empty suppository shell automatically through the high precision metering pumps. Then it will be a suppository line and cuts into sections automatically according to the length of the suppository line. And conveyed to cooling devices to make it cool and be solidification. After that it will be filling, truing, printing date of production and molding.
Technical Parameters:
| Output | 3000-3600granule/h | |||
| Single dosage | 0.5-5ml | |||
| Dosage allowed | <±2% | |||
| Form | Bullet, Torpedo,Duckbilled and other shape | |||
| Adapt to the host | Synthcticfat glyceric acid,glyceride,glycerin gelatine,polyethyleneglycol and so on | |||
| Store the capacity of the liquid barrel | 20L | |||
| Atmospheric pressure | 0.6MPa | |||
| Consume the tolerance | 1.5m3 | |||
| Water quantity | 500kg(cycled using) | |||
| The voltage of the power | 380v | |||
| Total power | 2.5kw | |||
| External dimension | 3280x1530x1600mm | |||
| Total weight | 100kg | |||
